| Place of Origin: | China |
|---|---|
| Brand Name: | SINOLIFT |
| Certification: | CE |
| Model Number: | CDD20N |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Sandard Export Package |
| Delivery Time: | 15 days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union |
| Supply Ability: | 1000 sets/mouth |

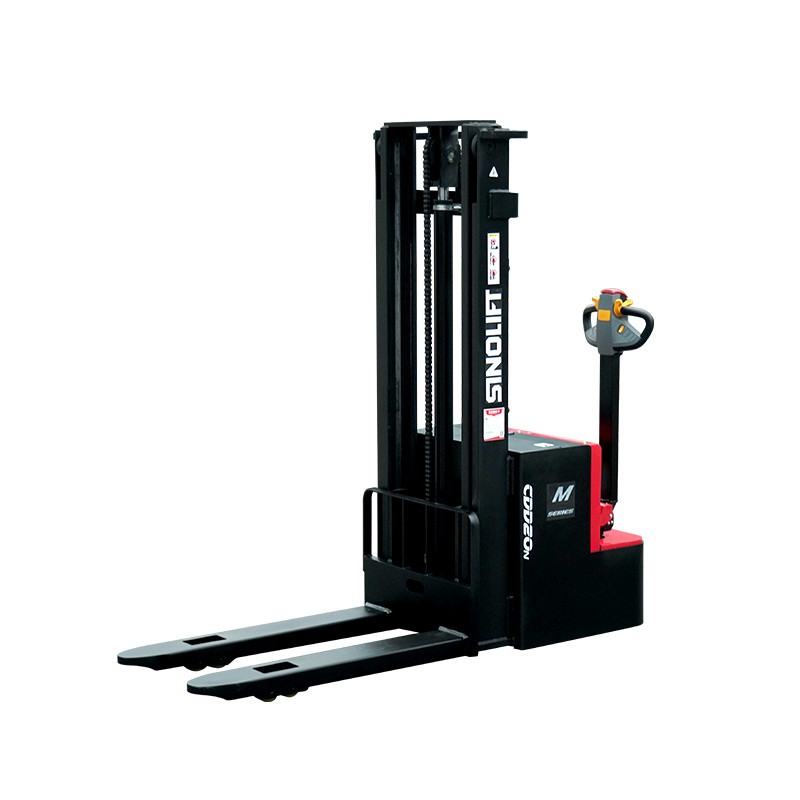

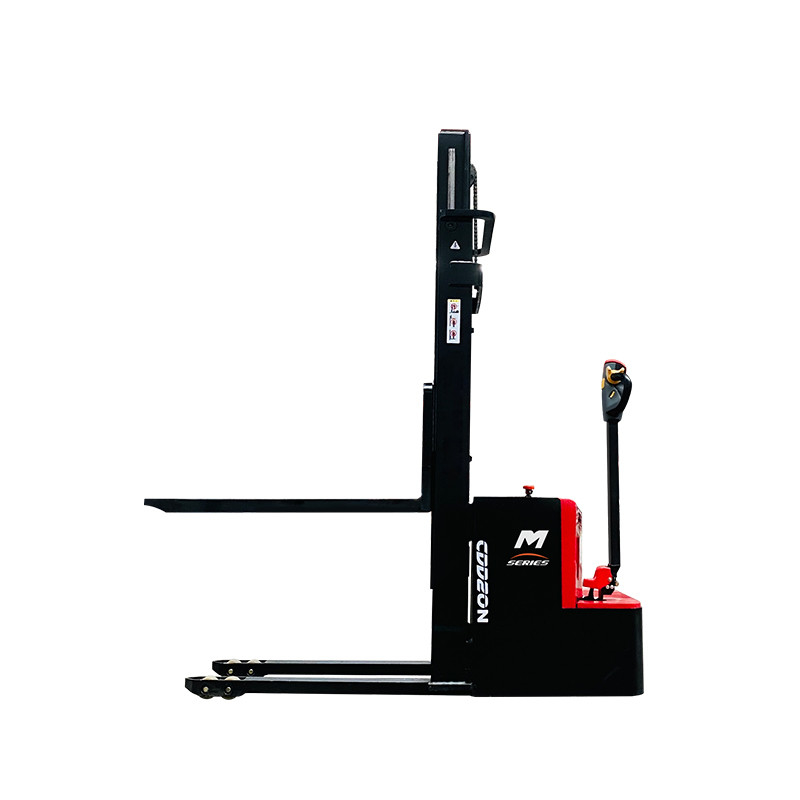

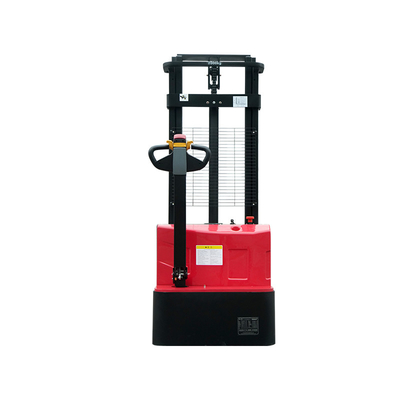

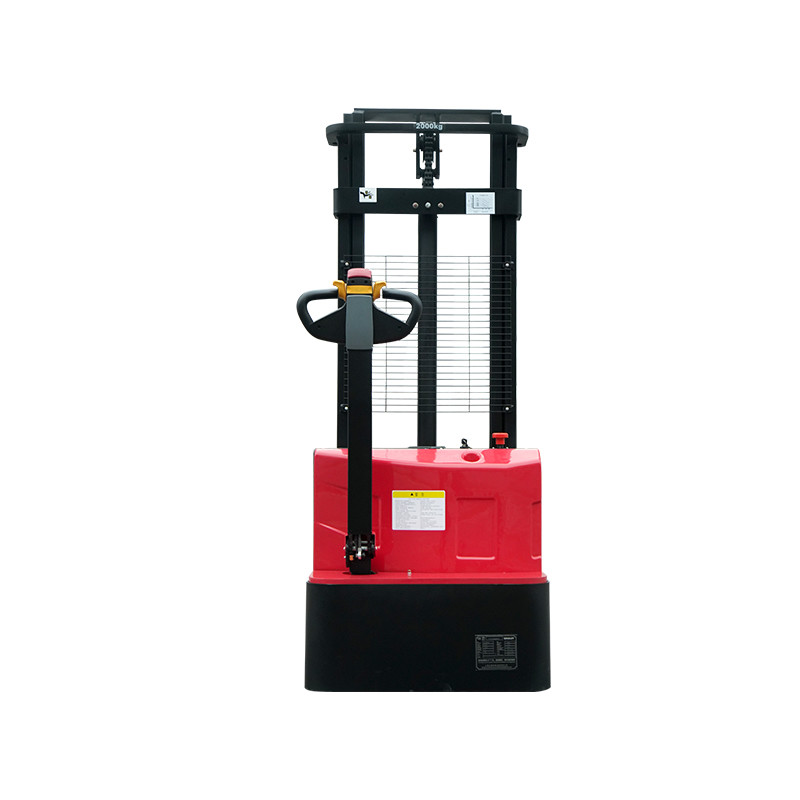

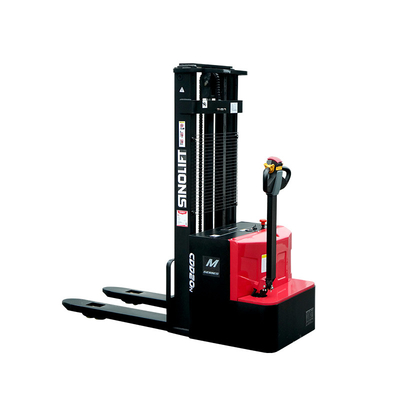

| Product Name: | Sinolift CDD20N Full Electric Stacker Truck | Driving Style: | Pedestrian |
|---|---|---|---|
| Load Capacity Q: | 2000kg | Warranty: | 1 Year |
| After Service: | On-line Service,free Spart Parts |
1. The optimally designed four-wheel structure makes the chassis stable and safe.
2. High-quality C-shaped gantry alloy steel, the rigidity is 30% higher than that of ordinary carbon steel.
3. Built-in high-energy sealed battery, long-term maintenance-free use, no need to add liquid or water during the service life.
4. Stepless control of the driving speed to meet the rhythm of different drivers.
5. The layout of all parts and pipelines of the whole vehicle is reasonable, the maintenance is convenient, and there is no trouble in maintenance of similar vehicles.
6. The vehicle has a beautiful appearance and beautiful curves.
7. Automatic cut-off function protects batteries against a deep discharge ensuring a long operational lifetime.
8. Proven components such as sensors, micro-switches, controllers, and hydraulic units from quality supplies.
9. Includes a safety reverse button that propels the unit away from the operator.
10. Emergency stop button cuts power to the unit immediately upon pressing and engages the electromagnetic brake.
11. Safety Features include an emergency reverse button, emergency shut-off button, horn, and load stabilizing casters
| Model | CDD20N | |
| Driving type | Electric | |
| Operating type | Pedestrain | |
| Capacity | kg | 2000 |
| Load center distance | mm | 600 |
| Wheel base | mm | 1535 |
| Service weight | kg | 995 |
| Overall length | mm | 2080 |
| Overall width | mm | 880 |
| Fork dimension | mm | 1150*170*60 |
| Fork width | mm | 560/685 |
| Height, Fork Lowered | mm | 85 |
| Ground Clearance | mm | 30 |
| Turning Radius | mm | 1760 |
| Aisle Width, with pallet 1000x1200 | mm | 2600 |
| Aisle Width, with pallet 800x1200 | mm | 2525 |
| Wheel type | PU | |
| Wheel dimension, front | mm | Φ85*70 |
| Wheel dimension, rear | mm | Φ250*80 |
| Traveling speed, full load/no-load | km/h | 4 |
| Lifting speed, full load/no-load | mm/s | 85/130 |
| Descending speed, full load/no-load | mm/s | 100/85 |
| Driving Motor Power AC | kw | 1.5 |
| Lifting Motor Power DC | kw | 3 |
| Battery | V/Ah | 24/150 |
| Mast Size | Lifting Height(h1) | Machine Height with Mast Lowered(h2) | Machine Height with Mast Extended(h4) | Load Capacity |
| mm | mm | mm | kg | |
| Single Mast | 1600 | 2150 | 2150 | 2000 |
| Duplex Mast | 2000 | 1580 | 2550 | 2000 |
| 2500 | 1830 | 3050 | 2000 | |
| 3000 | 2080 | 3550 | 2000 | |
| 3500 | 2330 | 4050 | 1600 |
