| Place of Origin: | China |
|---|---|
| Brand Name: | Sinolift |
| Certification: | CE, ISO9001 |
| Model Number: | CBD20E |
| Document: | Sinolift CBD20E CBD25E CBD3...re.pdf |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Sandard Export Package |
| Delivery Time: | 15 days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union |
| Supply Ability: | 1000 sets/mouth |

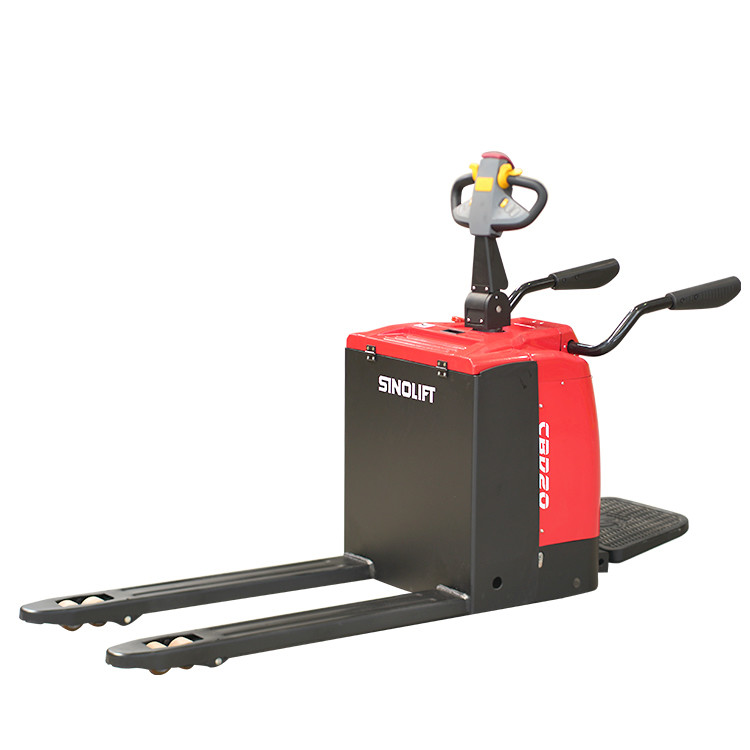

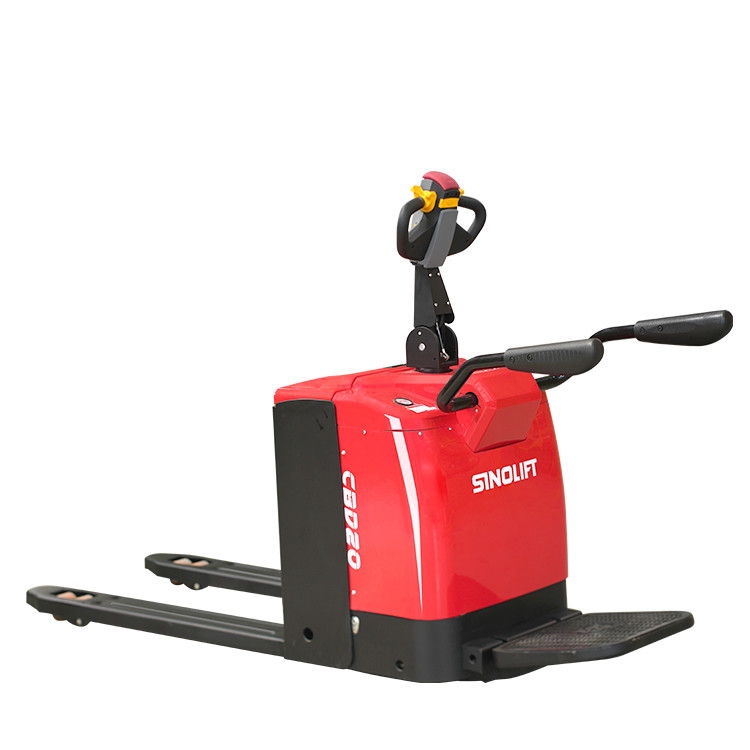

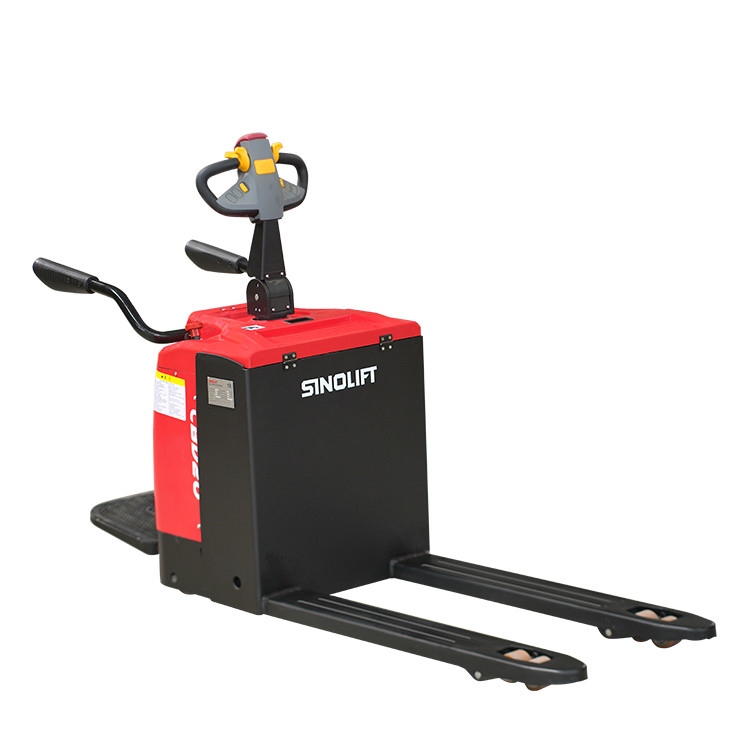

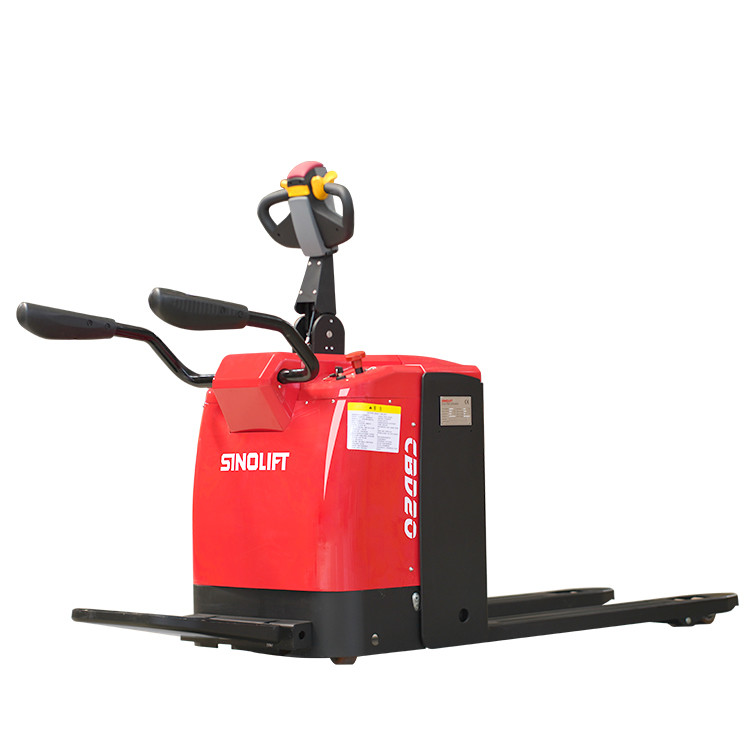

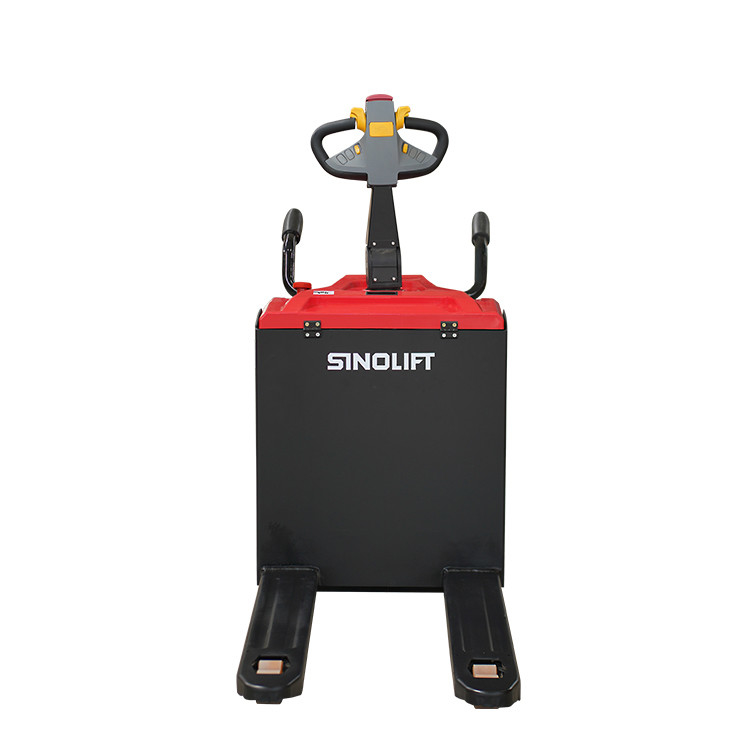

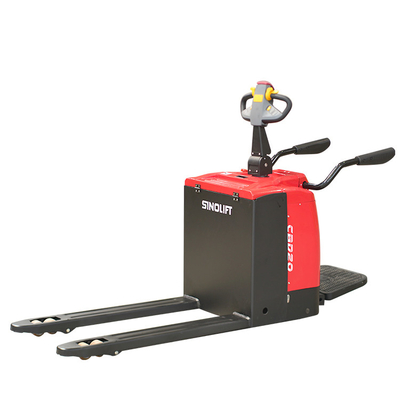

| Product Name: | Sinolift China High Power Drive Motor CBD20E CBD25E CBD30E Electric Pallet Jack For Material Handling | Driving Style: | Pedestrian |
|---|---|---|---|
| Load Capacity Q: | 2000kg | Load Center C: | 600mm |
| Overall Length: | 1780mm | Overall Width: | 690mm |
| Overall Height: | 1310mm | Power Of Driving Motor: | 1.5kw |
| Power Of Lift Motor: | 2.2kw | Net Weight: | 350kg |
| Warranty: | 1 Year | After Service: | On-line Service,free Spart Parts |
The new SINOLIFT E-Series electric pallet trucks, available in models ranging from 2.0 to 3.0 tons, are engineered to enhance efficiency in your material handling operations, regardless of your specific needs. These trucks are easy to operate, offering excellent visibility and productivity while maintaining the highest safety standards. Built on SINOLIFT's legacy of quality and reliability, these electric pallet trucks are user-friendly, highly maneuverable, and safe to use. Primarily utilized in warehouse and industrial environments, the electric pallet truck serves as a fundamental version of a forklift, equipped to handle loads of up to 3,300 kg, making it an optimal choice for your warehouse operations.
Features
Product Specifications
| 1.1 | Manufacturer | SINOLI | ||||
| 1.2 | Model | CBD20E | CBD25E | CBD30E | ||
| 1.3 | Power Type | Electric | Electric | Electric | ||
| 1.4 | Type of Operation | Stand-on | Stand-on | Stand-on | ||
| 1.5 | Load Capacity/Rated Load | Q | kg | 2000 | 2500 | 3000 |
| 1.6 | Load Center Distance | C | mm | 600 | 600 | 600 |
| 1.7 | Wheel base | y | mm | 1400 | 1480 | 1480 |
| 2.1 | Total Weight (with battery) | kg | 585 | 790 | 815 | |
| 3.2 | Overall Width | W1 | mm | 720 | 790 | 790 |
| 3.3 | Fork Dimension | l/e/s | mm | 1200×160×50 | 1220×185×50 | 1220×185×50 |
| 3.4 | Width of Fork | b2 | mm | 540/685 | 550/685 | 550/685 |
| 3.5 | Min. Fork Height | h3 | mm | 85 | 85 | 85 |
| 3.6 | Lift Height | h2 | mm | 205 | 205 | 205 |
| 3.7 | Ground Clearance at Center of Wheelbase | m1 | mm | 35 | 45 | 45 |
| 3.8 | Height of Operating Handlebar (Min./Max.) | h14 | mm | 1000/1450 | 1000/1450 | 1000/1450 |
| 3.9 | Turning Radius(Pedal Retracted/Expanded) | Wa | mm | 1675/2110 | 1665/2150 | 1665/2150 |
| 4.1 | Tyre Type | Polyurethane | Polyurethane | Polyurethane | ||
| 4.2 | Tyre Size (Front) | mm | 80x60 | 80x80 | 80x80 | |
| 4.3 | Tyre Size (Auxiliary Wheel) | mm | 115x55 | 115x55 | 115x55 | |
| 4.4 | Tyre Size (Driving Wheel) | mm | 230x75 | 230x75 | φ230x75 | |
| 5.1 | Traveling Speed (Laden/Unladen) | km/h | 6/6 | 5/8 | 5/8 | |
| 5.2 | Lifting Speed (Laden/Unladen) | mm/s | 20/25 | 20/25 | 20/25 | |
| 5.3 | Lowering Speed (Laden/Unladen) | mm/s | 30/26 | 30/26 | 30/26 | |
| 5.4 | Max.Gradient Performance (Laden/Unladen) | % | 45.00% | 45.00% | 45.00% | |
| 6.1 | Drive Motor Rating (AC) S2 60min | kW | 1.2 | 1.5 | 1.5 | |
| 6.2 | Lift Motor Rating (DC) S3 -15% | kW | 0.8 | 2.2 | 2.2 | |
| 6.3 | Battery Voltage/Capacity K5 | V/Ah | 24/210 | 24/210 | 24/240 | |
| 6.4 | Battery Weight | kg | 188 | 188 | 210 | |
| 7.1 | Controller Brand | ZAPI | CURTIS | CURTIS | ||
| 7.2 | Controller Model | AC-0 | 1232E | 1232E | ||
