| Place of Origin: | China |
|---|---|
| Brand Name: | SINOLIFT |
| Certification: | CE |
| Model Number: | CDD12M CDD15M |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Sandard Export Package |
| Delivery Time: | 15 days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union |
| Supply Ability: | 1000 sets/mouth |
| Product Name: | Sinolift CDD16M And CDD20M Electric Stackers Made In China | Driving Style: | Pedestrian |
|---|---|---|---|
| Load Capacity Q: | 2000kg | Warranty: | 1 Year |
| After Service: | On-line Service,free Spart Parts |

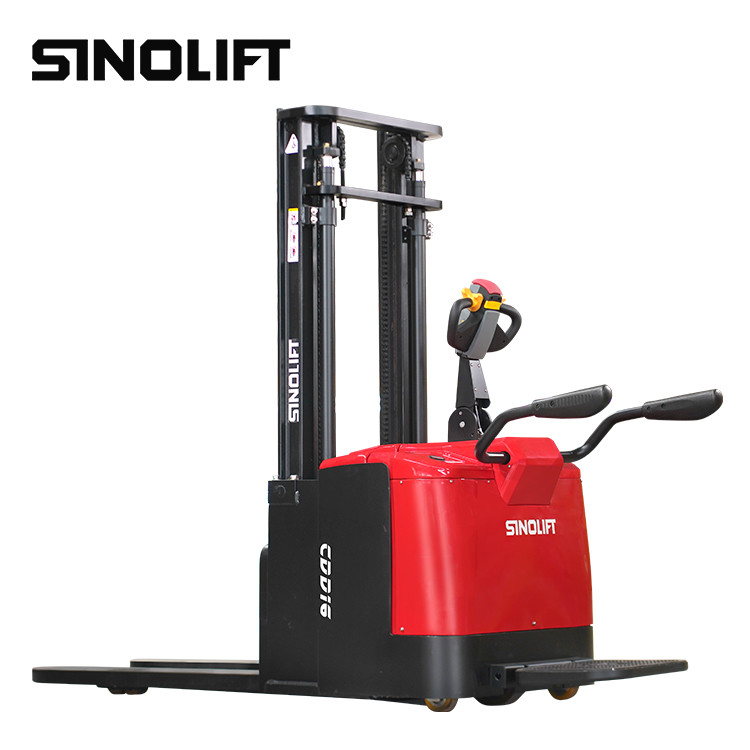

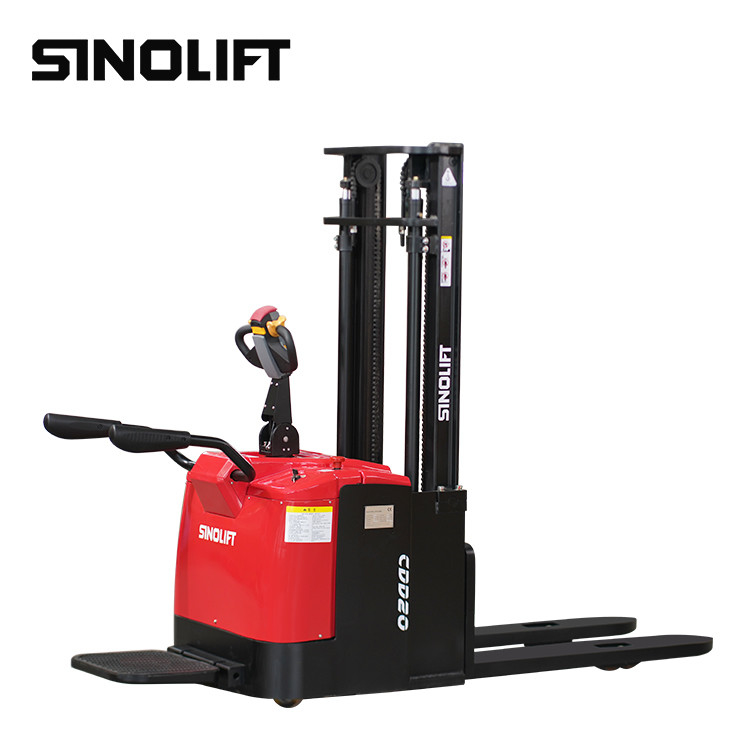

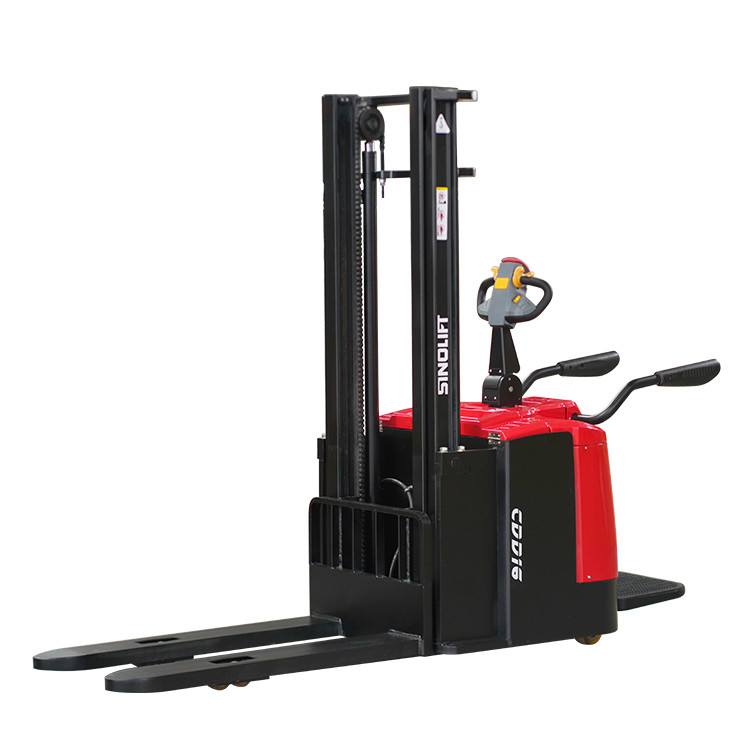

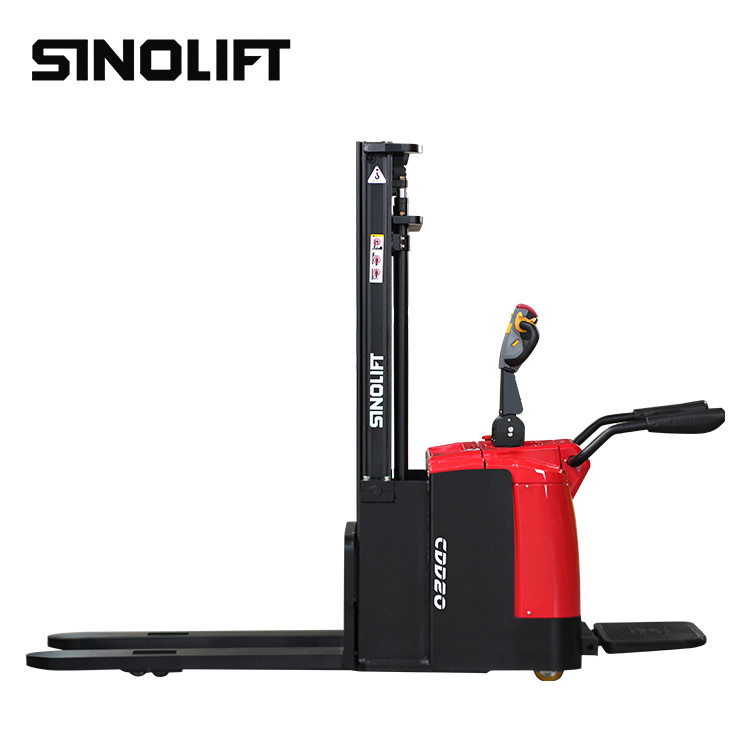

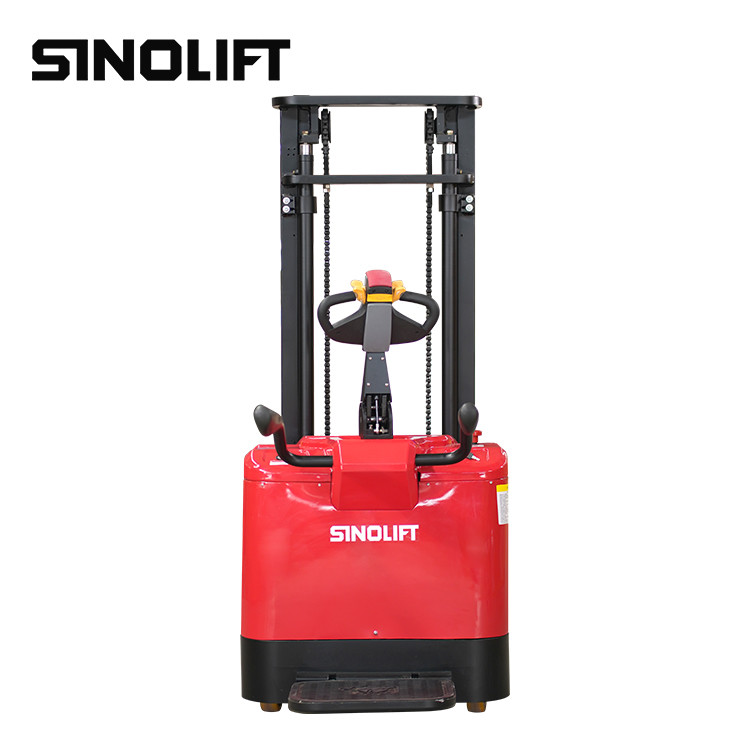

Sinolift CDD16M and CDD20M pedestrian-powered electric stackers made in China
The compact CDD16M and CDD20M series stackers are high-performance pedestrian electric stackers designed for efficient material handling in warehouses, factories, and confined spaces. Ideal for short-distance transport and precise pallet stacking, these stackers feature durable polyurethane load wheels, regenerative braking, and an AC traction motor for smooth and reliable operation. With safety enhancements like a belly button switch and EPS electric power steering, they ensure operator safety and ease of use in tight areas. Additionally, the quick battery change system and battery discharge indicator minimize downtime, making them a cost-effective solution for modern logistics and storage needs.
| dentification | 1.1 | Manufacture's type designation | SINOLIFT | |||
| 1.2 | Model | CDD16M | CDD20M | |||
| 1.3 | Power Type | Electric | ||||
| 1.4 | Type of Operation | Stand-on | ||||
| 1.5 | Steering Mode | Electric Power Steering | ||||
| 1.6 | Load capacity/Rated load | Q | kg | 1600 | 2000 | |
| 1.7 | Load Center Distance | C | mm | 600 | 600 | |
| 1.8 | Wheelbase | y | mm | 1500 | 1500 | |
| Weight | 2.1 | Total Weight (with battery) | kg | 1300 | 1350 | |
| 2.2 | Axle Load(laden):Drive side/Load-bearing side | kg | 1115/1785 | 1285/2065 | ||
| 2.3 | Axle Load(unladen):Drive Side/Load-bearing side | kg | 947/353 | 985/365 | ||
| Dimension | 3.1 | Overall Length (Pedal Retracted/Expanded) | L1/L2 | mm | 2210/2645 | 2210/2645 |
| 3.2 | Overall Width | W1 | mm | 880 | 880 | |
| 3.3 | Lift Height | h1 | mm | Refer to mast parameter | ||
| 3.4 | Lowered Mast Height | h2 | mm | Refer to mast parameter | ||
| 3.5 | Extended Mast Height | h4 | mm | Refer to mast parameter | ||
| 3.6 | Free Lift Height | h5 | mm | Refer to mast parameter | ||
| 3.7 | Fork Dimension | l/e/s | mm | 1220×185×55 | 1220×185×55 | |
| 3.8 | Width of Fork | b2 | mm | 560/685 | 560/685 | |
| 3.9 | Min.Fork Height | h3 | mm | 85 | 85 | |
| 3.1 | Ground Clearance at Center of Wheelbase (Min) | m1 | mm | 30 | 30 | |
| 3.11 | Height of Operating Handle bar(Min./Max) | h14 | mm | 1000/1550 | 1000/1550 | |
| 3.12 | Turning Radius | Wa | mm | 1755/2200 | 1755/2200 | |
| 3.13 | Min. Aisle width for pallets 1000×1200 (Pedal Retracted/Expanded) | 2630/3085 | 2630/3085 | |||
| 3.14 | Min. Aisle width for pallets 800×1200 (Pedal Retracted/Expanded) | 2555/3010 | 2555/3010 | |||
