| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SINOLIFT |
| Certification: | CE, ISO9001 |
| Model Number: | QSD20M QSD30M |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Sandard Export Package |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 1000 sets/mouth |
| Product Name: | SINOLIFT QSD20M QSD30M Stand-on Electric Tow Tractor | Driving Style: | Pedestrian |
|---|---|---|---|
| Load Capacity: | 3000kg | Warranty: | 1 Year |
| After Service: | On-line Service,free Spare Parts |

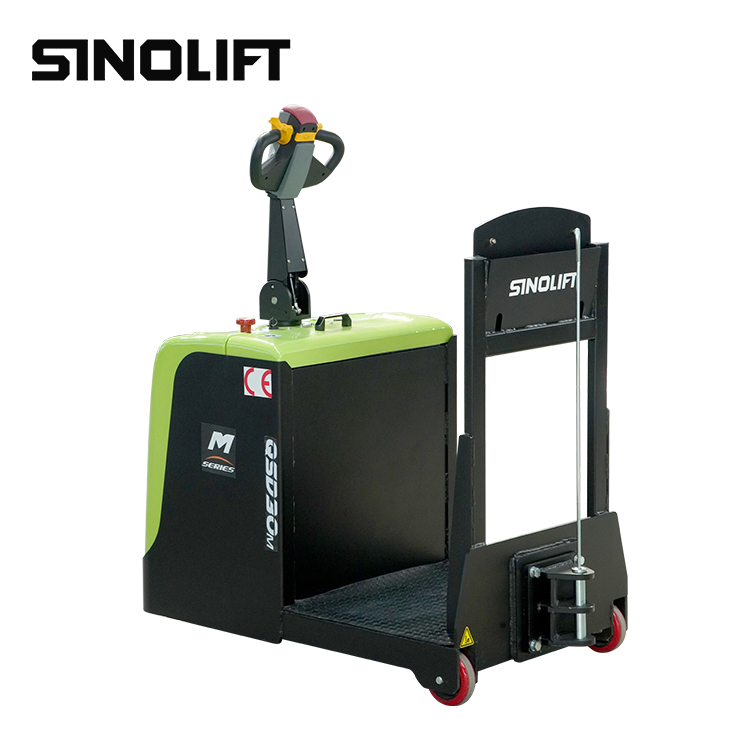

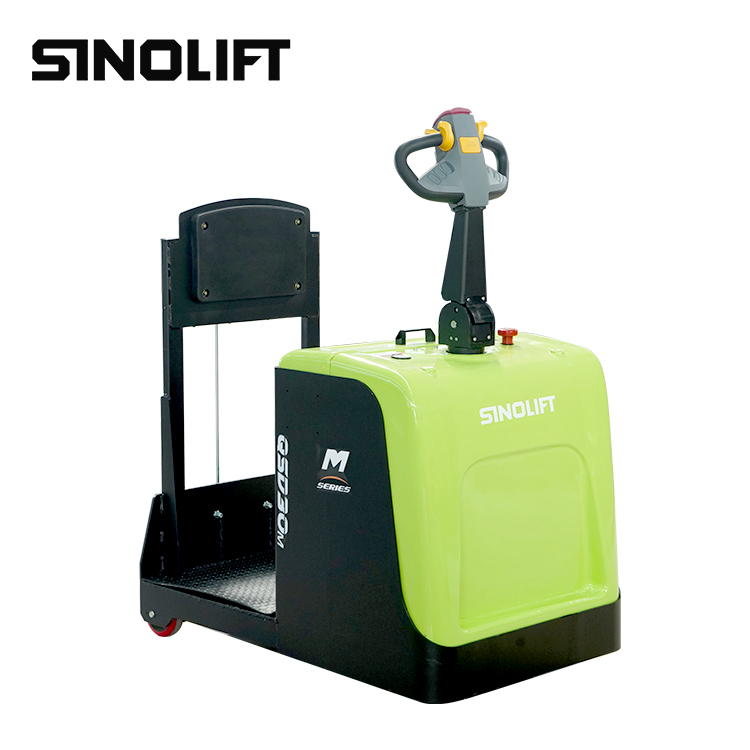

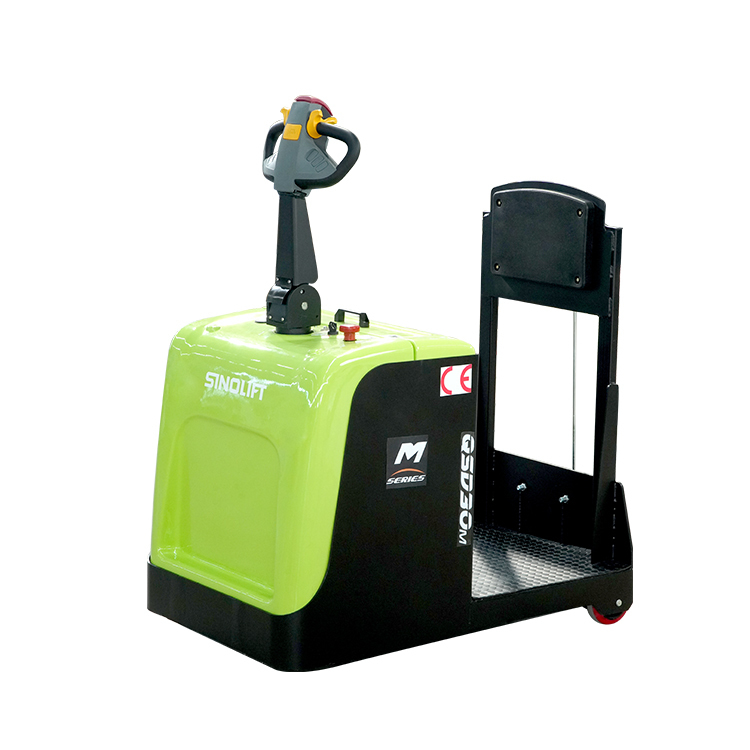

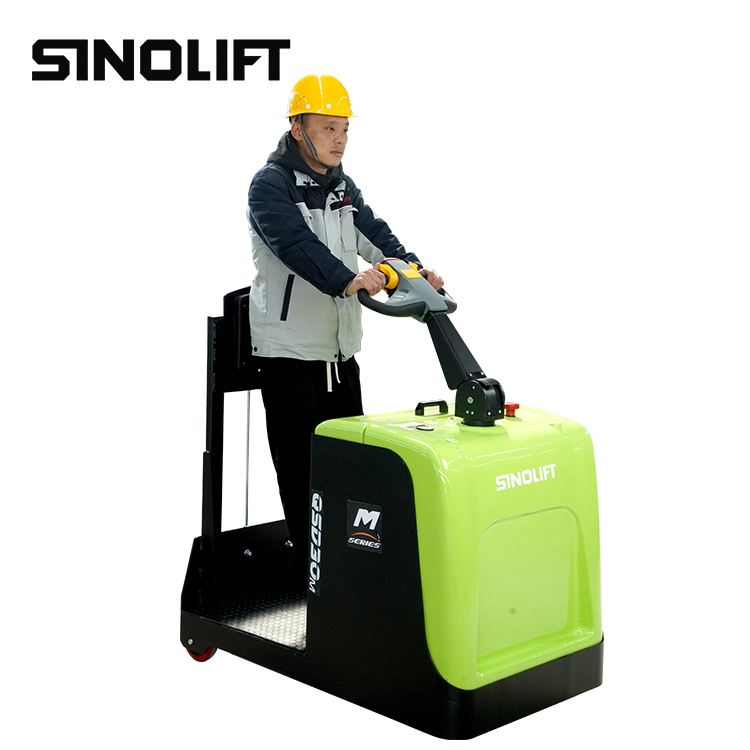

SINOLIFT QSD20M QSD30M Stand-on Electric Tow Tractor
The Sinolift QSD20M/QSD30M electric tow tractor incorporates German engineering and design, setting it apart from the competition in strength, versatility, and usability. Ideal for manufacturing plants, warehouses, and distribution centers, this model ensures reliable performance to keep goods moving efficiently—shift after shift. No matter what you need to pull, tug, or tow, the Sinolift QSD Series is built to handle even your most demanding applications with ease.
| ldentification | 1.1 | Manufacturer | SINOLIFT | |||
| 1.2 | Model | QSD20M | QSD30M | |||
| 1.3 | Power Type | Electric | ||||
| 1.4 | Type of operation | Stand-on | ||||
| 1.5 | Steering Mode | Electric Power Steering | ||||
| 1.6 | Wheelbase | y | mm | 950 | 950 | |
| Weight | 2.1 | Total Weight(with battery) | kg | 550 | 550 | |
| 2.2 | Axle Load(unladen): Drive side/Load-bearing side | kg | 350/200 | 350/200 | ||
| Dimension | 3.1 | Overall length | L1 | mm | 1 455 | 1455 |
| 3.2 | Overall width | W1 | mm | 800 | 800 | |
| 3.3 | Overall height | h14 | mm | 1610 | 1610 | |
| 3.4 | Couping Height(Hook center above ground) | h10 | mm | 175/225/275 | 175/225/275 | |
| 3.5 | Standing Platform | h2 | mm | 175 | 175 | |
| 3.6 | Ground Clearance at the center of wheelbase (Min) | m1 | mm | 65 | 65 | |
| 3.7 | Turning Radius | Wa | mm | 1280 | 1280 | |
| Tyre | 4.1 | Tyre Type | Polyurethane/Rubber | |||
| 4.2 | Tyre Size(Front) | mm | 230x75 | 230x75 | ||
| 4.3 | Tyre Size(Rear) | mm | 254x100 | 254x100 | ||
| 4.4 | Wheels Quantity, front/rear (x=driving wheels) | 1x/2 | 1x/2 | |||
| Performance | 5.1 | Traveling Speed(laden/unladen) | Km/h | Refer to the climbing curve | ||
| 5.2 | Rated Draw-bar Pull | F | N | 600 | 600 | |
| 5.3 | Max.Gradient Performance S25min laden/unladen) | % | Refer to the climbing curve | |||
| 5.4 | Service Brake Type | Electromagnetic | ||||
| 5.5 | Parking Brake Type | Electromagnetic | ||||
| Power Unit | 6.1 | Drive Motor Rating(AC) S2-60min | kW | 1.5 | 1.5 | |
| 6.2 | Battery Vo ltage/Capacity K5 | V/Ah | 24/210 | 24/210 | ||
| 6.3 | Battery Weight | kg | 188 | 188 | ||
| Others | 7.1 | Controller Brand | CURTIS | CURTIS | ||
| 7.2 | Controller Model | 1232E | 1232E | |||
| 7.3 | Sound level at the driver's ear according to EN 12053 | dB | 65 | 65 | ||
