| Place of Origin: | China |
|---|---|
| Brand Name: | Sinolift |
| Certification: | CE |
| Model Number: | MHA10 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Sandard Export Package |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, D/P, T/T, Western Union |
| Supply Ability: | 1000 sets/mouth |
| Product Name: | MHA10 1 Ton Medium-Level Electric Order Picker For Warehouse Picking | Application: | Industrial |
|---|---|---|---|
| Warranty: | 1 Year | After Service: | On-line Service,Spare Parts |
| Power Type: | Electric | Operation: | Order Picking |
| Tyre Type,front/rear: | Polyurethane | Traveling Brake: | Regenerative Braking / Electromagnetic Braking |
Product Description:

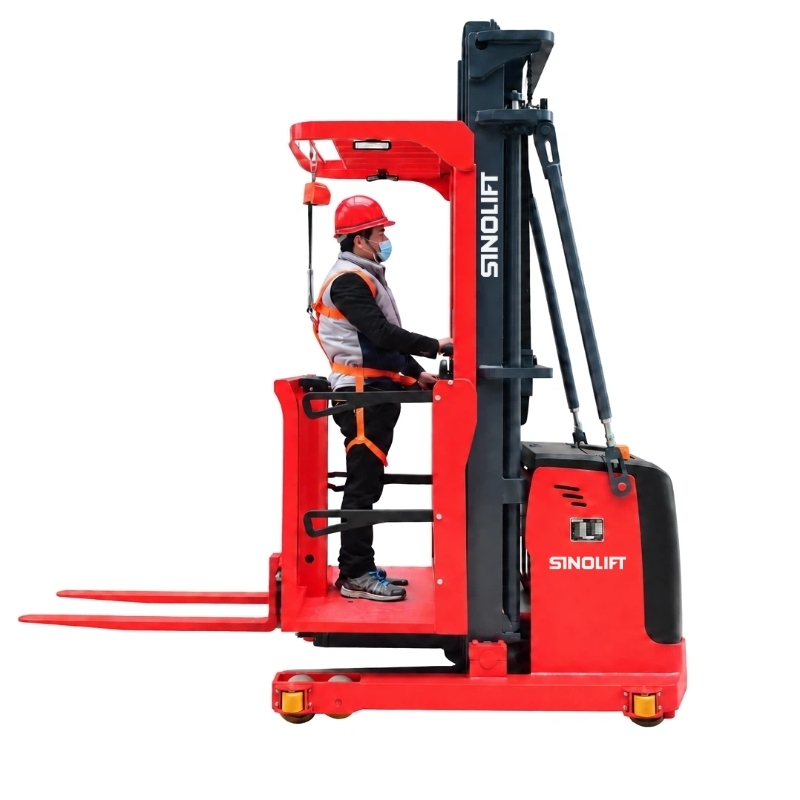

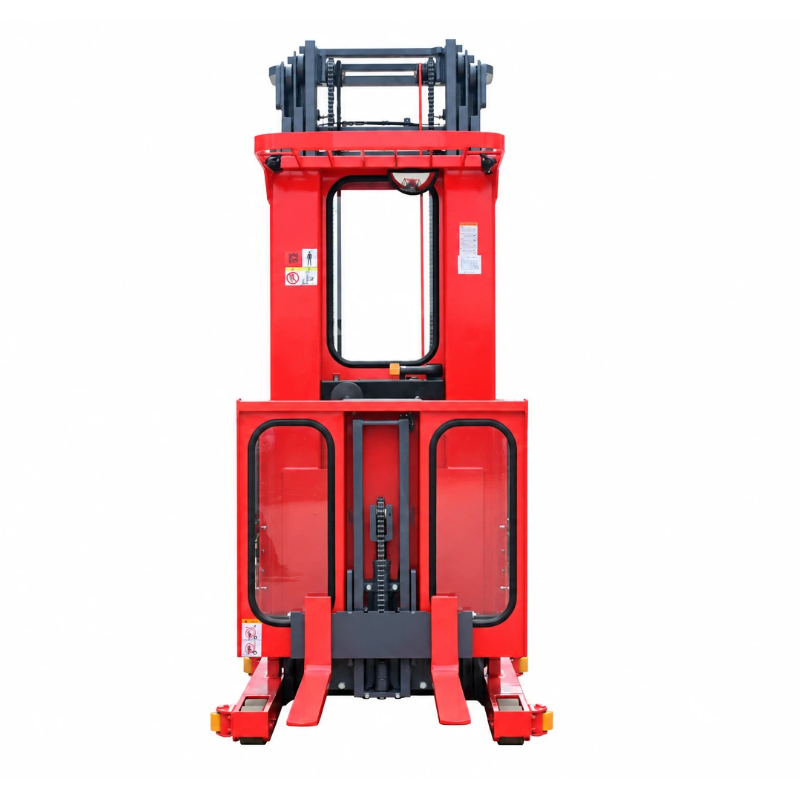

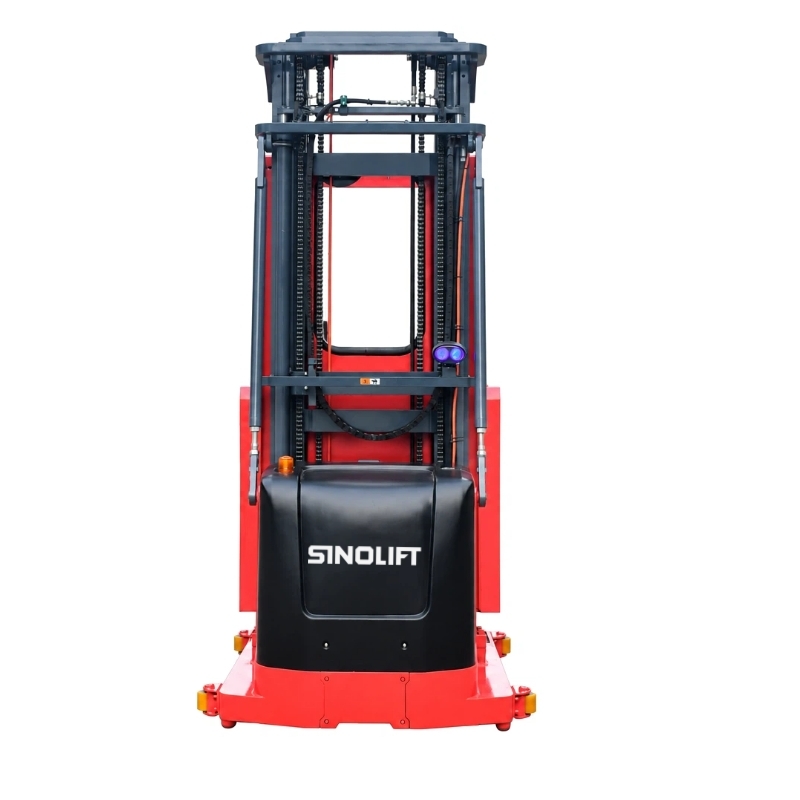

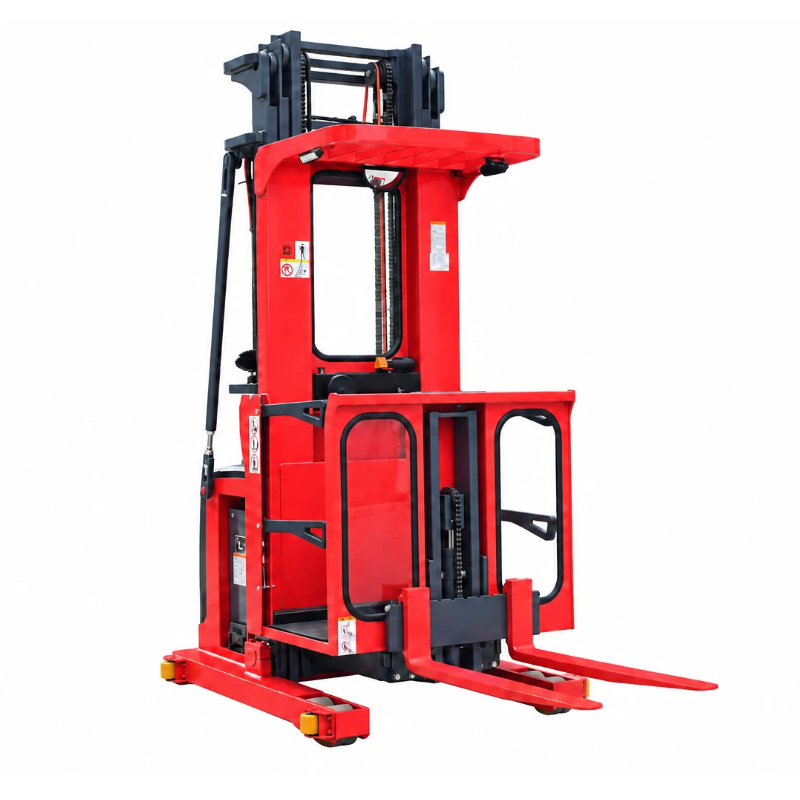

The SINOLIFT MHA10 Medium-Level Electric Order Picker is designed for safe, efficient, and comfortable warehouse order picking at medium and elevated shelf levels.
With a 1.0-ton load capacity, maximum lifting height of 6 meters, and picking height of up to 7.6 meters, the MHA10 enables operators to travel and lift efficiently during picking operations. Its man-up operating design provides excellent visibility and convenient access to goods stored on warehouse racking.
A reinforced mast and operator platform provide reliable stability during elevated operation, while proportional lifting control ensures smooth starting, stopping, lifting, and lowering. Multiple safety functions, including guardrail position detection, travel speed limitation at height, turning speed limitation, and electric lifting limits, help improve operator protection.
Ergonomic controls, clear steering-wheel position display, and an auxiliary lifting function further reduce operator fatigue and improve picking efficiency, making the MHA10 an ideal solution for modern warehouses and distribution centers.
Product Features:
1. 1.0 Ton Load Capacity
The MHA10 provides a maximum load capacity of 1,000 kg, making it suitable for warehouse picking, material handling, and order preparation operations.
Its robust mast and chassis construction provide reliable support during lifting and elevated working operations.
2. Up to 7.6 m Picking Height
With a maximum lifting height of 6 meters and a maximum picking height of approximately 7.6 meters, the MHA10 allows operators to access goods stored on medium- and higher-level warehouse racks.
It is particularly suitable for facilities that require frequent vertical order picking.
3. Stable Performance at Height
The reinforced mast and operator platform are designed to provide excellent stability during elevated operation.
The structural design helps maintain controlled and stable operation when picking goods at maximum working height.
4. Smooth Proportional Lifting Control
The lifting and lowering system adopts proportional control technology, allowing smooth acceleration and deceleration.
This reduces sudden movement and vibration during lifting and lowering, providing more precise positioning when operators work close to warehouse shelving.
5. Ergonomic Multifunction Control Handle
The ergonomic control handle integrates commonly used operating functions for convenient single-hand control.
The thumb switch allows intuitive and accurate control, helping improve efficiency during continuous warehouse picking operations.
6. Auxiliary Lifting Function
The standard auxiliary lifting function allows operators to adjust the picking platform or working position more conveniently.
It reduces the need for frequent bending or squatting during order picking, helping decrease operator fatigue and improve productivity.
7. Steering Wheel Position Display
A clear steering-wheel position indicator allows the operator to understand the current steering direction at a glance.
This makes maneuvering easier, especially in narrow warehouse aisles and confined storage areas.
8. Multiple Safety Protection Functions
The MHA10 is equipped with multiple safety functions designed for elevated warehouse operations, including:
Guardrail position detection
Operator presence detection
Electric lifting limit
High-position travel speed limitation
Turning speed limitation
Safety belt protection
High lifting and traveling functions are enabled only when the required safety conditions are met, helping reduce operating risks.
9. Convenient Battery Maintenance
The flip-open battery cover provides easy access to the battery compartment for routine inspection and maintenance.
The drive housing is also designed for convenient removal and installation, simplifying regular servicing of the vehicle.
10. Reliable Electrical Components
Key electrical components such as the controller, display, operating handle, and thumb switch use reliable industrial-grade components to provide stable performance during intensive warehouse operations.
Applications:
The MHA10 Medium-Level Electric Order Picker is mainly designed for indoor warehouse picking and material handling operations. It is suitable for:
Warehouse Shelf Picking: Ideal for retrieving cartons, components, and other goods directly from warehouse shelving.
Distribution Centers: Suitable for frequent order preparation and picking operations in logistics and distribution warehouses.
Retail Warehouses: Helps operators efficiently pick products from multi-level storage racks for store replenishment and order fulfillment.
E-Commerce Fulfillment Centers: Suitable for high-frequency SKU picking where operators need to move between different rack levels quickly.
Parts and Components Warehouses: Ideal for automotive parts, electronic components, machinery parts, and other warehouse inventory requiring manual picking at different heights.
Narrow-Aisle Warehouse Operations: Its compact design and convenient steering control make the MHA10 suitable for warehouses where maneuverability and space utilization are important.
| Manufacturer | SINOLIFT | SINOLIFT | |
| Model | MHA10(Open cab) | MHA10 (Open cab) | |
| Model code | MHA10L(Duplex mast)[1] | MHA10S(Triplex mast)[1] | |
| Power type | Electric | Electric | |
| Operation | Order Picking | Order Picking | |
| Load capacity | Q(kg) | 1000 | 1000 |
| Load center distance | C(mm) | 500 | 500 |
| Front overhang | x(mm) | 148 | 148 |
| Wheelbase | y(mm) | 1410 | 1410 |
| Service weight(incl. battery) | kg | 2490 | 2830 |
| Axle loading, laden front/rear | kg | 940/2550 | 1130/2700 |
| Axle loading, unladen front/rear | kg | 1410/1080 | 1610/1220 |
| Tyre type,front/rear | Polyurethane | Polyurethane | |
| Tyre size, front | mm | φ150×90 | φ150×90 |
| Tyre size, rear | mm | φ254×102 | φ254×102 |
| Wheels,number front/rear (X=driven) | 4/1X | 4/1X | |
| Track width, rear | b10(mm) | 1008 | 1008 |
| Track width, front | b11(mm) | 0 | 0 |
| Mast retracted height | h1(mm) | Refer to mast parameter | Refer to mast parameter |
| Free lifting height | h2(mm) | Refer to mast parameter | Refer to mast parameter |
| Lift height | h3(mm) | Refer to mast parameter | Refer to mast parameter |
| Mast extended height | h4(mm) | Refer to mast parameter | Refer to mast parameter |
| Max. lifting height | h3+h9(mm) | Refer to mast parameter | Refer to mast parameter |
| Max. picking height | h12+1600(mm) | Refer to mast parameter | Refer to mast parameter |
| Overhead guard height | h6(mm) | 2270 | 2270 |
| Ground clearance,min height of the operation surface | h7(mm) | 260 | 260 |
| Auxiliary lift height | h9(mm) | 670 | 670 |
| Ground clearance,min height of the operation surface | h12(mm) | Refer to mast parameter | Refer to mast parameter |
| Ground clearance,Min fork surface | h13(mm) | 70 | 70 |
| Overall length | l1(mm) | 2825 | 2835 |
| Body to fork surface length | l2(mm) | 1755 | 1765 |
| Overall width | b1/b2(mm) | 1150/1150 | 1150/1150 |
| Fork dimensions | l/e/s(mm) | 1070/100/40 | 1070/100/40 |
| Fork rack width | b3(mm) | 730 | 730 |
| Fork outside spread | b5(mm) | 700～220 | 700～220 |
| Width over guide rollers | b6(mm) | 1336 | 1336 |
| Ground clearance below mast | m1(mm) | 50 | 50 |
| Ground clearance, body | m2(mm) | 50 | 50 |
| Aisle width | Ast(mm) | 1750[2] | 1750[2] |
| Turning radius | Wa(mm) | 1625 | 1625 |
| Main aisle width | mm | ≥(2920+400)[3] | ≥(2930+400)[3] |
| Travelling speed, laden/unladen | km/h | 6/6 | 6/6 |
| Lift speed, laden/unladen | mm/s | 115/140 | 115/140 |
| Lowering speed, laden/unladen | mm/s | 125/125 | 125/125 |
| Gradeability, laden/unladen | %(tanθ) | / | / |
| Traveling Brake | Regenerative braking / electromagnetic braking |
Regenerative braking / electromagnetic braking |
|
| Service brake | Electromagnetic | Electromagnetic | |
| Drive motor, rating S2=60 | kw | 2.5 AC | 2.5 AC |
| Lift motor, rating S3=15% | kw | 3.2 DC | 3.2 DC |
| Battery voltage/nominal capacity | (V)/(Ah) | 24/400[4] | 24/400[4] |
| Battery weight | kg | 340 | 340 |
| Type of drive control | AC | AC | |
| Noise level at operator's ear(EN12053 Standard) | 70 | 70 | |
| *This parameter table only provides standard model technical data, non-standard and other height series models, please consult the Hefei BANYITONG Science & Technology Developping Co., Ltd. specifications and configuration, if any change, without notice. |
|||
| [1]: L in code means two-stage common gantry model, S means three-stage common gantry model; [2]: Net aisle width applies to standard models (standard mechanical guide function model, stacking net aisle width 1350mm), the above data varies according to the use of different working conditions; [3]: The width of the main aisle includes the safety distance, the minimum width of the main aisle safety distance for standard models needs to be +400mm (+400mm for models with standard mechanical guide function), the above data varies according to the pallet size; [4]: Optional lithium battery specification: 24V/300Ah; |
|||
