| Place of Origin: | China |
|---|---|
| Brand Name: | Sinolift |
| Certification: | CE |
| Model Number: | NA |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Sandard Export Package |
| Delivery Time: | 15 days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union |
| Supply Ability: | 1000 sets/mouth |

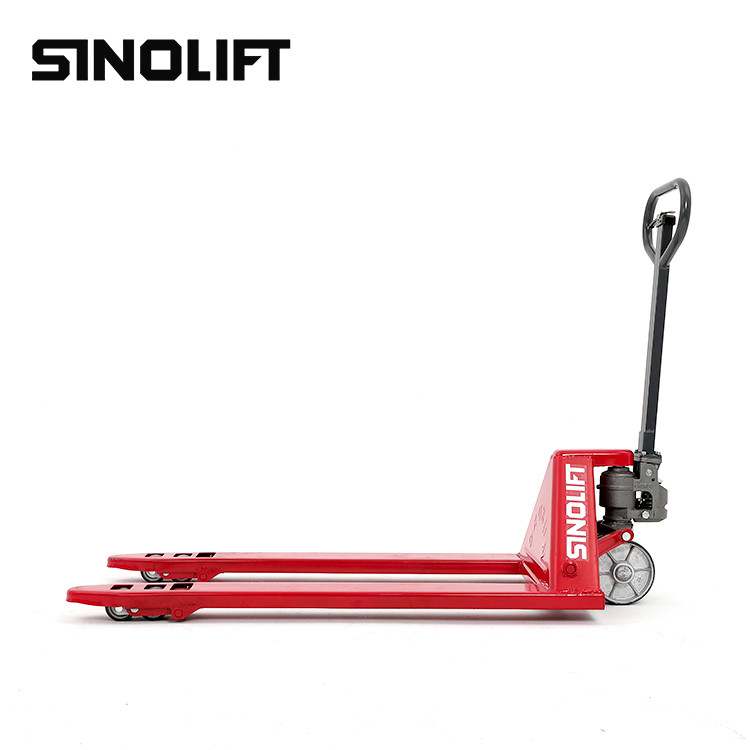

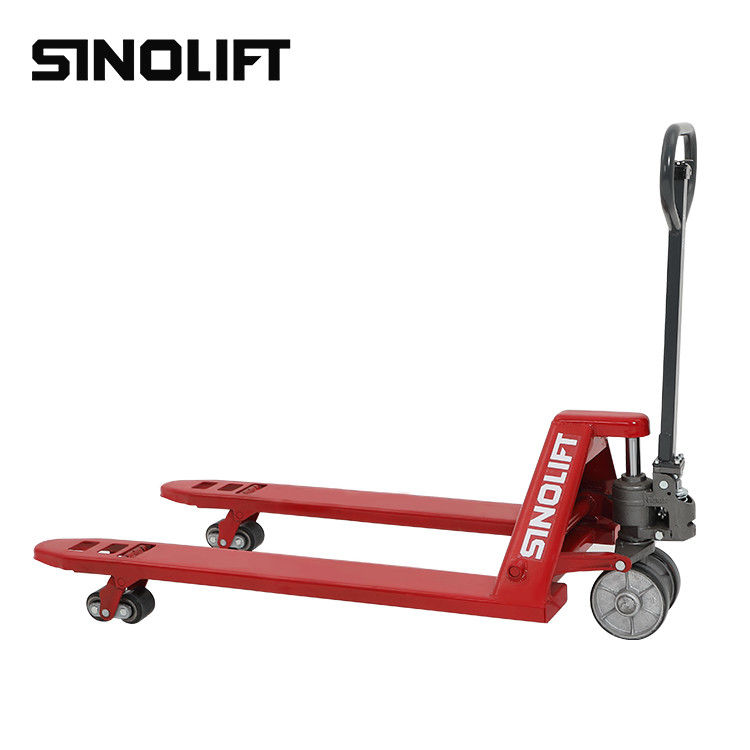

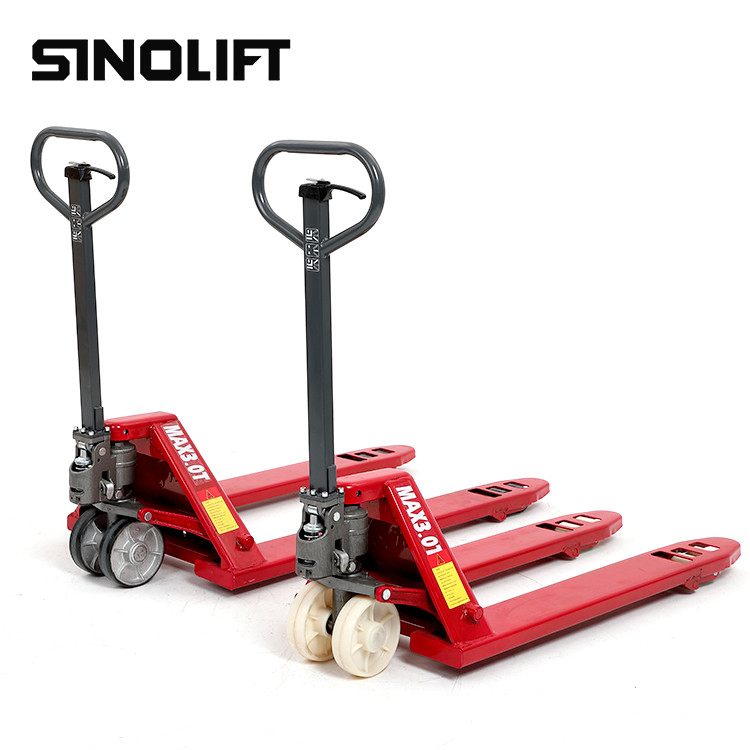

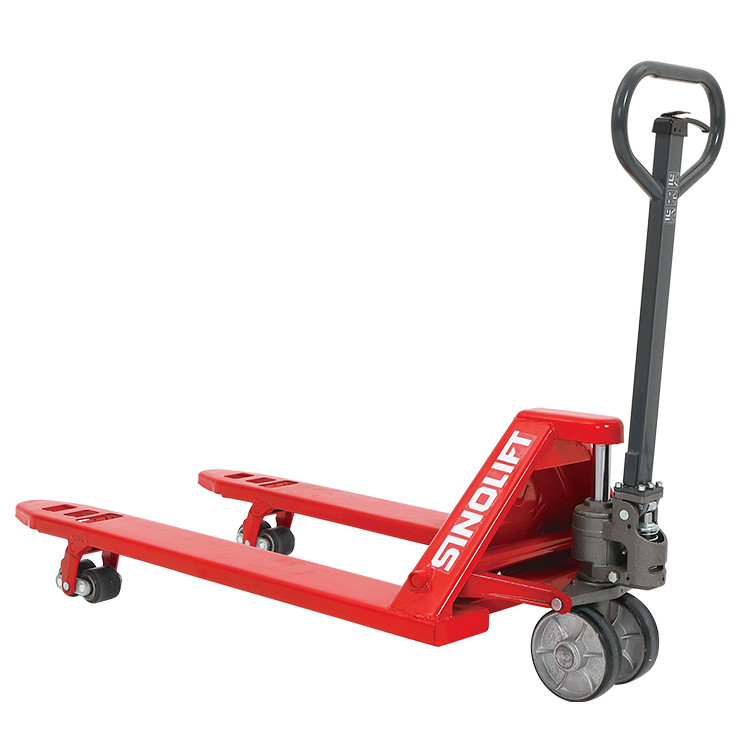

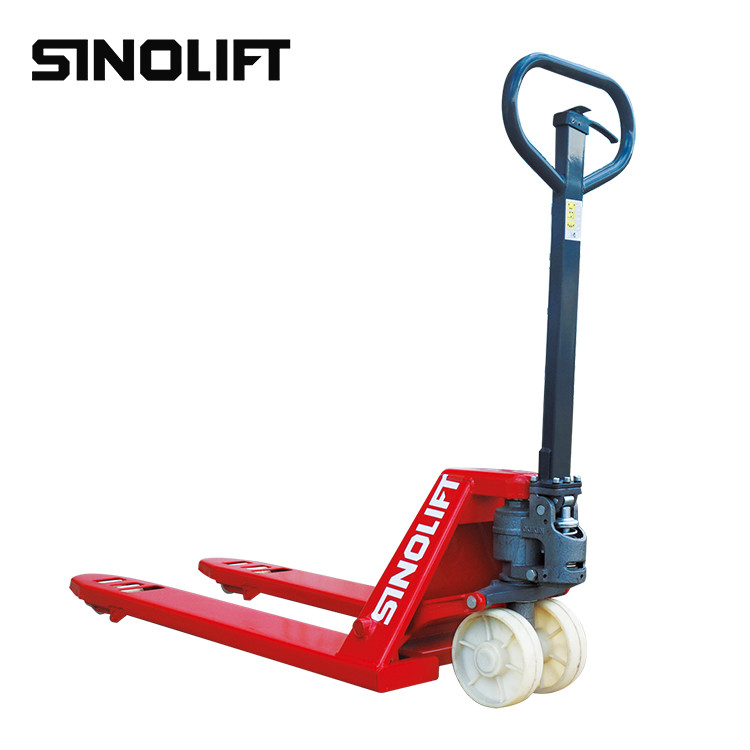

| Product Name: | SINOLIFT NF Series Hand Pallet Truck Loading Capacity 3000kg | Driving Style: | Pedestrian |
|---|---|---|---|
| Load Capacity Q: | 3000kg | Warranty: | 1 Year |
| After Service: | On-line Service,free Spart Parts |
The hydraulic system of NA pallet jack is the product of extensive research and development, featuring a load limiter to prevent premature wear caused by overloading. Its specially engineered lowering valve ensures smooth and controlled lowering of heavy loads. The unit is fully sealed, preventing moisture entry and ensuring it remains leak-proof.
Pallet jacks are widely used in various workplaces and remain an essential component in the efficient operation of industrial environments.
| Model | NA15/NA20/NA25/NA30 | |||
| Capacity | kg | 1500/2000/ 2500/3000 | ||
| Max.Fork Height (H) | mm | 95/121/165/195/200 | ||
| Min.Fork Height (S) | mm | 35/51/65/75/80 | ||
| Fork Length (L) | mm | 1150/1220 | ||
| Overall Fork Width(B) | mm | 460 | 520 | 685 |
| Every Fork Width (E) | mm | 153 | ||
| Load Roller Diameter | mm | 78×70/78×100 | ||
| Nylon/Polyurethane | ||||
| Steering Wheel Diameter | mm | 200/180 | ||
| Nylon/Polyurethane/Rubber | ||||
| Net.Weight | kg | 84 | 89 | 92 |
| Quantities/20ft Container | pcs | 180 | 174 | |
