| Place of Origin: | China |
|---|---|
| Brand Name: | Sinolift |
| Certification: | CE |
| Model Number: | ELGA-DC |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Sandard Export Package |
| Delivery Time: | 15 days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 1000 sets/mouth |

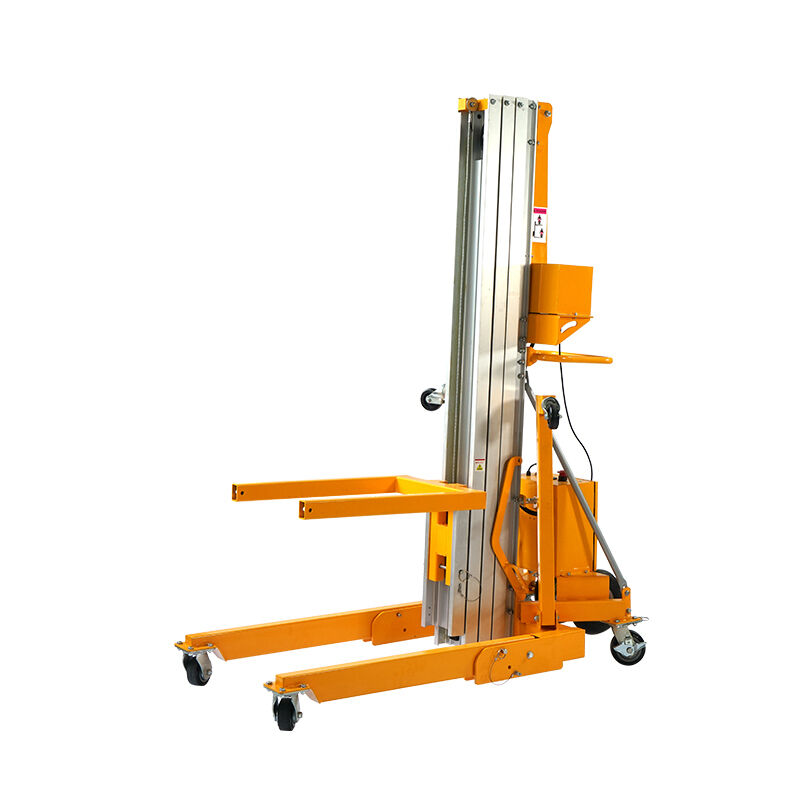

| Product Name: | SINOLIFT ELGA-DC Semi-Electric Aluminum Material Lift | Application: | Industrial |
|---|---|---|---|
| Warranty: | 1 Year | After Service: | On-line Service,Spare Parts |
Product Description:
The SINOLIFT ELGA-DC Semi-Electric Aluminum Material Lift (ELGA Series) is a lightweight yet heavy-duty lifting solution designed for safely raising, positioning, and installing materials at elevated heights. Featuring a DC electric lifting system combined with manual maneuverability, the ELGA Series significantly reduces operator effort while improving lifting efficiency for construction, maintenance, HVAC installation, warehousing, and industrial applications.
Manufactured with a high-strength aluminum alloy mast, the ELGA provides excellent rigidity while maintaining a lightweight structure for easy transportation and storage. Its compact design allows the lift to pass through standard doorways and operate efficiently in confined indoor environments.
Key Features:
Powered by a reliable 24V DC electric winch, the ELGA provides smooth, stable lifting with minimal operator effort, making it ideal for repetitive material handling tasks.
The high-strength aluminum alloy mast offers excellent structural stability while reducing the overall machine weight, making transportation and maneuvering easier.
Available in several models with lifting heights from 3.5 m to 7.0 m, allowing users to choose the most suitable configuration for different working environments.
The telescopic mast folds down into a compact transport size, allowing easy loading into vans or small trucks and convenient storage when not in use.
Four heavy-duty adjustable outriggers provide excellent stability during lifting operations, ensuring safe handling of heavy materials at maximum height.
The semi-electric design enables one operator to safely lift and position heavy materials with minimal physical effort.
Large transport wheels and swivel casters allow easy movement across workshops, warehouses, and construction sites.
Built with industrial-grade aluminum profiles, reinforced steel chassis, and high-quality lifting components for long service life and reliable daily operation.
Product Details
Reliable DC-powered lifting mechanism delivers smooth and efficient vertical lifting while reducing manual labor.
Lightweight aluminum construction provides excellent rigidity, corrosion resistance, and stable lifting performance.
Heavy-duty stabilizers quickly deploy to ensure maximum safety during lifting operations.
The 700 × 500 mm loading platform accommodates HVAC equipment, construction materials, machinery parts, ducting, and industrial components.
The foldable mast and compact chassis allow the machine to fit through standard doors and transport easily between job sites.
High-quality wheels provide smooth maneuverability and secure positioning during operation.
Typical Applications:
Advantages of ELGA Series:
✔ Electric lifting reduces operator fatigue
✔ Lightweight aluminum construction
✔ Compact foldable design
✔ Easy one-person operation
✔ High lifting efficiency
✔ Excellent transportability
✔ Stable outrigger support
✔ Low maintenance
✔ Indoor and outdoor applications
✔ Multiple lifting height options
Frequently Asked Questions (FAQ)
1. What is the maximum lifting height of the ELGA Series?
The ELGA Series is available in four models with maximum lifting heights of 3.5 m, 5.0 m, 6.0 m, and 7.0 m, allowing users to select the most suitable model for their application.
2. What is the lifting capacity?
Depending on the model, the rated load capacity ranges from 200 kg to 350 kg, providing reliable performance for lifting various construction and industrial materials.
3. Is the ELGA fully electric?
The ELGA is a semi-electric material lift. It uses a 24V DC electric winch for lifting, while the equipment is manually pushed and positioned, combining easy operation with cost-effective performance.
4. What materials can the ELGA lift?
It is suitable for lifting HVAC units, ductwork, pipes, glass panels, electrical equipment, machinery components, construction materials, and warehouse goods.
5. Can one person operate the lift?
Yes. The lightweight aluminum frame, electric lifting system, and compact design allow a single operator to transport, position, and lift materials safely and efficiently.
6. What safety features does the ELGA include?
The ELGA features adjustable outriggers for enhanced stability, a high-strength aluminum telescopic mast, locking swivel casters, and a reliable DC electric lifting system to ensure safe operation at height.
7. Is the ELGA suitable for indoor use?
Yes. Its compact folded dimensions allow it to pass through most standard doorways, making it ideal for warehouses, factories, commercial buildings, and indoor construction sites.
8. Why choose the ELGA Semi-Electric Material Lift?
Compared with manual material lifts, the ELGA significantly reduces physical effort, improves lifting efficiency, and enhances workplace safety, while maintaining a lightweight, portable design suitable for a wide range of industrial applications.
| Model | ELGA10-DC | ELGA15-DC | ELGA20-DC | ELGA25-DC |
| Maximum Lift Height | 3.5 m | 5.0 m | 6.0 m | 7.0 m |
| Load Capacity | 350 kg | 300 kg | 250 kg | 200 kg |
| Fork Size | 700 × 500 mm | 700 × 500 mm | 700 × 500 mm | 700 × 500 mm |
| Folded Height | 2035 mm | 2035 mm | 2035 mm | 2035 mm |
| Power Supply | 24V DC Electric Winch | 24V DC Electric Winch | 24V DC Electric Winch | 24V DC Electric Winch |
| Motor Power | 1.3 HP (450 W) | 1.3 HP (450 W) | 1.3 HP (450 W) | 1.3 HP (450 W) |
| Lifting Speed | 49 mm/s | 49 mm/s | 49 mm/s | 49 mm/s |
| Lowering Speed | 59 mm/s | 59 mm/s | 59 mm/s | 59 mm/s |
| No-load Lifting Speed | 58 mm/s | 58 mm/s | 58 mm/s | 58 mm/s |
