| Place of Origin: | China |
|---|---|
| Brand Name: | Sinolift |
| Certification: | CE |
| Model Number: | CY |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Sandard Export Package |
| Delivery Time: | 15 days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 5000 sets/mouth |
| Product Name: | CY Series Adjustable Fork Width 100mm Crane Fork Capacity 1 Ton-5 Ton | Model: | CY10/CY20/CY30/CY50 |
|---|---|---|---|
| Load Capacity: | 1 Ton-5 Ton | Adjustable Fork Width: | 350-1000mm |
| Effective Height: | 1100-2000mm | Fork Length: | 1000mm |
| Net Weight: | 140-380Kg | Certification: | CE,ISO9001 |
| Warranty: | 1 Year | After Service: | On-line Service,Spare Parts |
| Highlight: | 100mm Crane Fork,Adjustable Fork Width Crane Fork,Adjustable height crane pallet forks |
||
Feature:

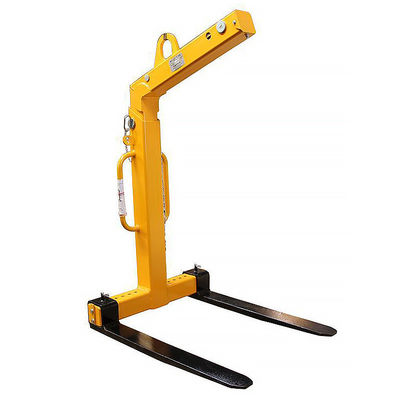

Crane Fork CY series
▲ No slings or chains necessary.
▲ Crane operator will not need to leave cab of lorry or crane.
▲ Forks will remain horizontal when loaded and unloaded.
▲ Adjustable fork width.
▲ Adjustable height.
Specification:
| Model No. | Work Load Limit WLL (T) | Adjustable Fork Width (mm) | Effective Height (mm) | Fork Length (mm) | Net weight (kg) |
| CY10 | 1 | 350-900 | 1100-1600 | 1000 | 140 |
| CY20 | 2 | 400-900 | 1300-2000 | 1000 | 220 |
| CY30 | 3 | 450-900 | 1300-2000 | 1000 | 280 |
| CY50 | 5 | 530-1000 | 1300-2000 | 1000 | 380 |
