| Place of Origin: | China |
|---|---|
| Brand Name: | Sinolift |
| Certification: | CE |
| Model Number: | HM |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Sandard Export Package |
| Delivery Time: | 15 days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union |
| Supply Ability: | 5000 sets/mouth |

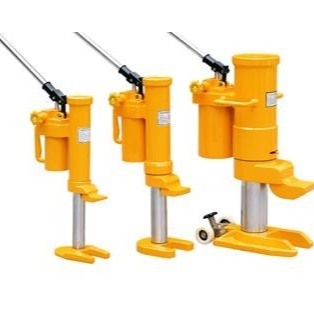

| Product Name: | HM Series Hydraulic Jack With Capacity 5 Ton -25 Ton | Model Number: | HM50/HM200/HM250 |
|---|---|---|---|
| Rated Capacity: | 5 Ton-25 Ton | Max. Lever Force: | 40kg |
| Lifting Range Of Foot: | 58-273mm | Lifting Range Of Head: | 505-720mm |
| Color: | Red,Green,Blue,White Etc | Certification: | CE,ISO9001 |
| Material: | Special Steel | Net Weight: | 102kg |
| Warranty: | 1 Year | After Service: | On-line Service,free Spart Parts |
| High Light: | ASME/ANSI B30.1.1986 Hydraulic Jack,Overload Protection Hydraulic Jack,ASME/ANSI B30.1.1986 material handling equipment |
||
Feature:
HU-LIFT hydraulic jacks for repairs, maintenance and installation of heavy machines
▲ Compact and stable construction.
▲ Can be used in any position.
▲ Housing revolves 360 degrees.
▲ Lowering speed can be accurately adjusted.
▲ Protected against overloading.
▲ Pump lever is removable.
▲ According to CE and US standard USA ASME/ANSI B30.1.1986.
CAUTIONS:
To avoid possible personal injury or damage to equipment
▲ Do not exceed the maximum load capacity of the jack.
▲ Do not add additional load to a lifted load.
▲ Do not use in unstable or hazardous positions.
▲ Unit must be used on flat surfaces able to carry the load.
▲ The load must be stable during lifting.
▲ An unstable load may cause the jack or load to slip.
▲ Do not use jack(s) if damaged, altered or in poor condition.
▲ Do not lift people or loads with people on them.
▲ Do not lift at the end of the toe. Fully engage the load with the toe.
Specification:
| Type | HM50 | HM100 | HM250 | |
| Capacity | (tonne) | 5 | 10 | 25 |
| Lifting Range of Foot | (mm) | 25-230 | 30-260 | 58-273 |
| Lifting Range of Head | (mm) | 368-573 | 420-650 | 505-720 |
| Max. Lever Force | (kg) | 38 | 40 | 40 |
| Net Weight | (kg) | 25 | 35 | 102 |
