| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SINOLIFT |
| Certification: | CE, ISO9001 |
| Model Number: | QDD10 / QDD10L / QDD15L |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Sandard Export Package |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000 sets/mouth |
| Product Name: | SINOLIFT QDD10 / QDD10L / QDD15L Pedestrian Electric Tractor | Front Track: | 428mm |
|---|---|---|---|
| Rear Track: | 217mm | Overall Width: | 520mm |
| Travel Brake: | Electromagnetic | Drive Unit Type: | DC |
| Steering Type: | Mechanical | Noise Level: | 74dB(A) |
| After-sales Service Provided: | Video Technical Support,Free Spare Parts | Warranty: | 1 Year |
Product Name:

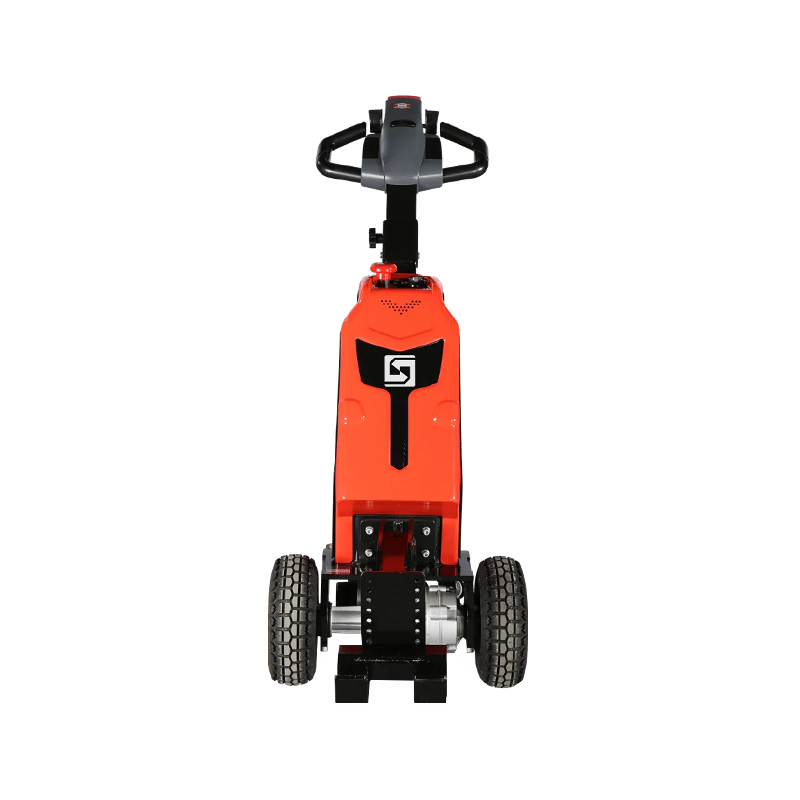

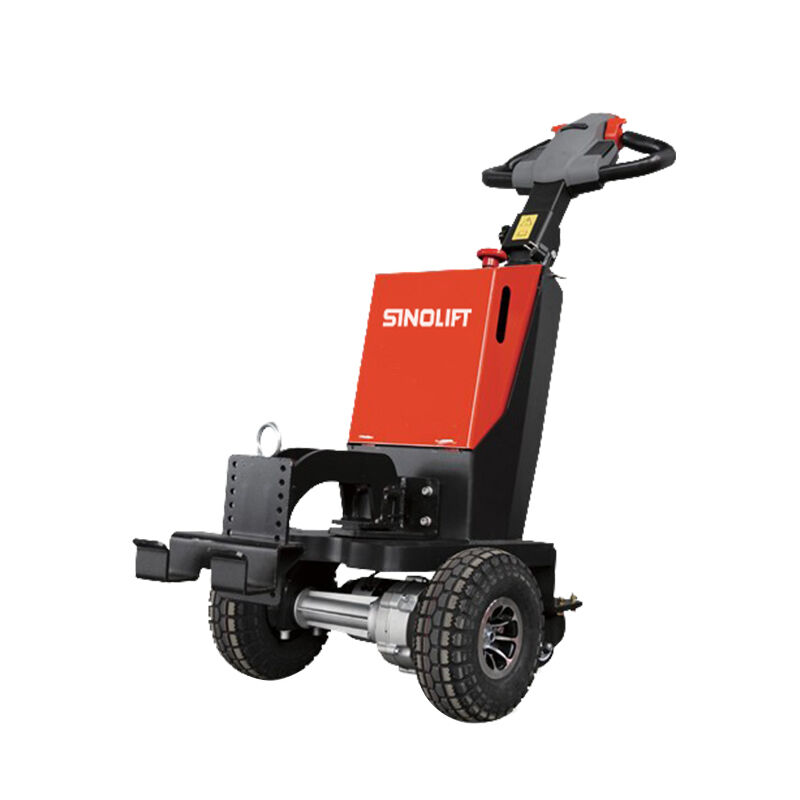

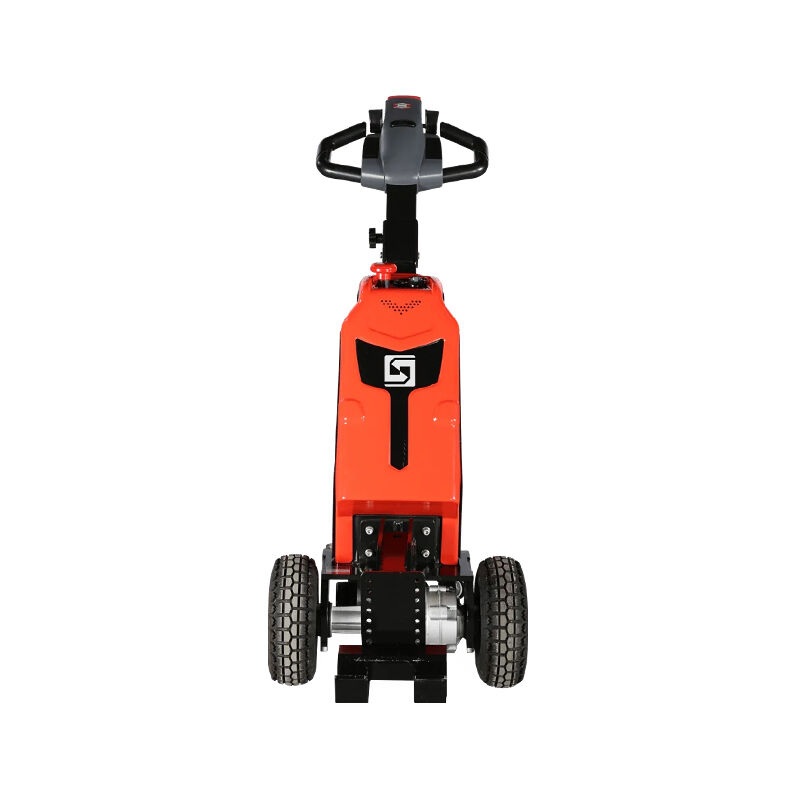

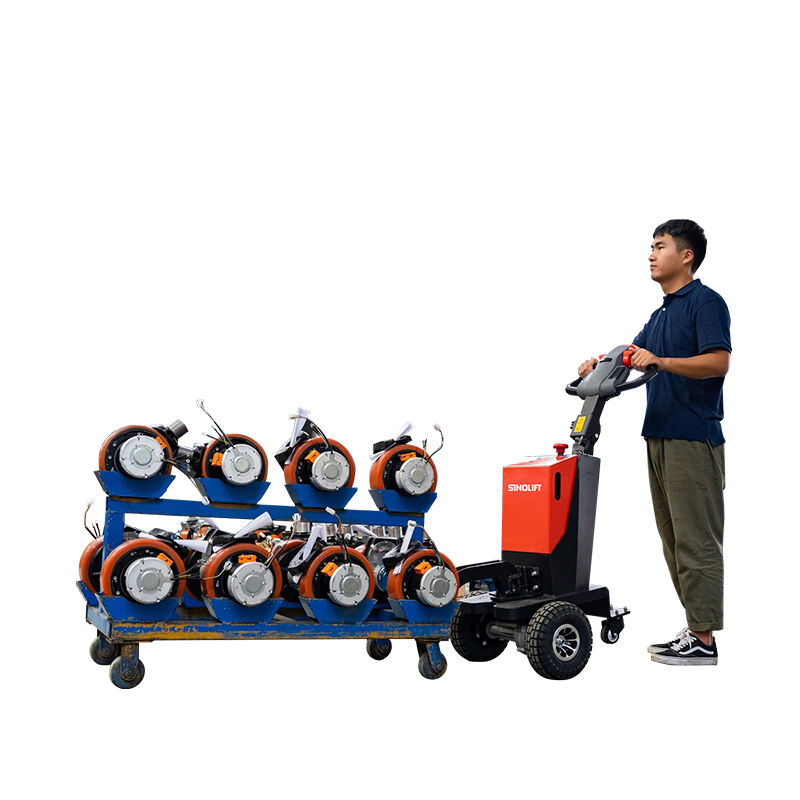

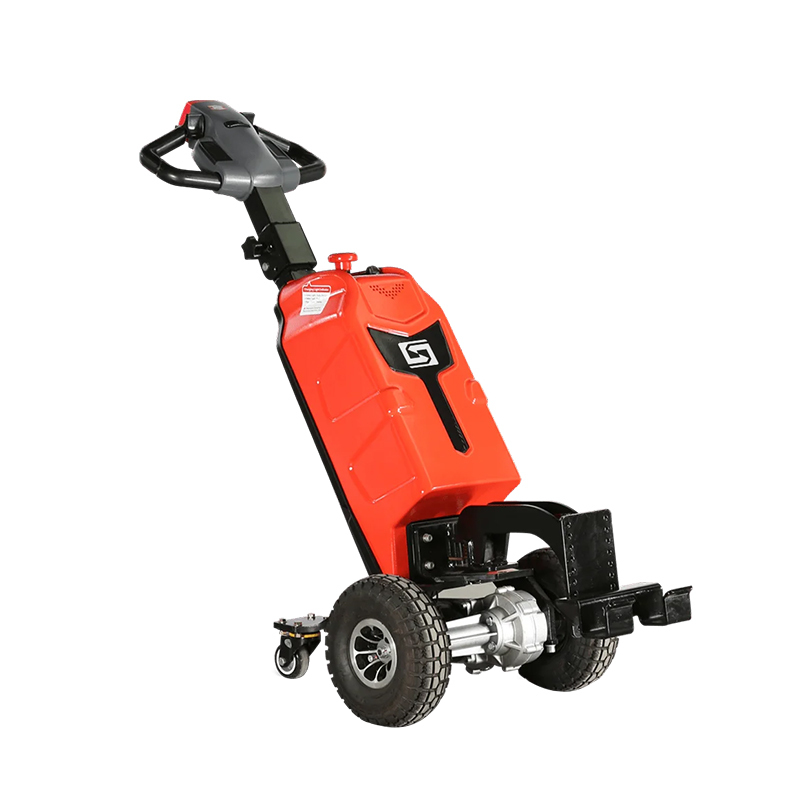

SINOLIFT QDD10 / QDD10L / QDD15L Pedestrian Electric Tractor
Product Description:
The SINOLIFT QDD Series Pedestrian Electric Tractor is designed for efficient and effortless towing in factories, warehouses, and logistics environments. Built with high-quality steel and powered by a high-performance motor, it delivers strong traction, stable operation, and low energy consumption. Its compact structure and ergonomic design make daily material handling easier, safer, and more productive, even in confined spaces.
Key Features:
High-power motor delivers reliable traction for heavy-load towing with stable and efficient operation.
High-quality steel frame ensures long service life and dependable performance in demanding industrial environments.
Lightweight body combined with compact dimensions allows easy maneuvering while reducing operator fatigue.
Adjustable handle length maintains a comfortable operating height for different users, ensuring smooth and convenient control.
Equipped with overcharge protection, stable voltage output, an extended charging cable, a direct charging plug, and 3C certification for safe and reliable use.
Slip-resistant, wear-resistant tires with strong load-bearing capacity eliminate worries about punctures or blowouts.
Height-adjustable reinforced hook with screw-type structure allows quick disassembly and secure load bearing.
Designed for quiet operation and reduced energy consumption, suitable for continuous indoor use.
Customization services are available, backed by factory-direct sales and strict quality assurance.
Product Specifications:
| Model | QDD10 | QDD10L | QDD15L | |
| Load Capacity | kg | 1000 | 1000 | 1500 |
| Wheelbase | mm | 315 | 320 | 320 |
| Self-Weight | kg | 98 | 120 | 245 |
| Axle Load, Full Load (Front/Rear) | kg | 98/0 | 120/0 | 245/0 |
| Axle Load, No Load (Front/Rear) | kg | 78/20 | 95/25 | 195/50 |
| Tire Type (Drive/Idler) | Pneumatic | Pneumatic | Solid Rubber | |
| Front Wheel (Diameter × Width) | mm | 2×Φ250×85 | 2×Φ250×85 | 2×Φ250×85 |
| Rear Wheel (Diameter × Width) | mm | 2×Φ75×32 | 2×Φ75×32 | 2×Φ74×48 |
| Drive Wheel / Idler Wheel Quantity (X = Drive) | 2X/2 | 2X/2 | 2X/2 | |
| Front Track | mm | 428 | 428 | 428 |
| Rear Track | mm | 217 | 217 | 217 |
| Overall Height | mm | 890~976~1068 | 896~985~1074 | 1020~1076~1274 |
| Handlebar Min/Max Height at Operating Position | mm | 835~930~1010 | 841~936~1016 | 965~1040~1130 |
| Overall Length (Including Tow Hook) | mm | 1255~1315~1345 | 1210~1270~1300 | 1250~1310~1340 |
| Overall Width | mm | 520 | 520 | 520 |
| Travel Speed, Full/No Load | km/h | 4.5/5 | 4.5/5 | 4.5/5 |
| Traction Force (60MIN), Full/No Load | N | 200/0 | 200/0 | 300/0 |
| Max Traction Force (5MIN), Full/No Load | N | 650/0 | 650/0 | 650/0 |
| Max Gradeability, Full/No Load | % | 3/16 | 3/16 | 3/16 |
| Travel Brake | Electromagnetic | Electromagnetic | Electromagnetic | |
| Drive Motor Rated Power (S2 60min) | kw | 0.4 | 0.4 | 0.4 |
| Battery Voltage/Nominal Capacity | V/Ah | 2×12/50 (Lead-Acid) | 24/20 (Li-ion) | 24/20 (Li-ion) |
| Battery Weight | kg | 2×19 | 5.8 | 5.8 |
| Drive Unit Type | DC | DC | DC | |
| Steering Type | Mechanical | Mechanical | Mechanical | |
| Noise Level | dB(A) | 74 | 74 | 74 |
