| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SINOLIFT |
| Certification: | CE |
| Model Number: | DG360 / DG720 / DG1080 / DG1440 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Sandard Export Package |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 sets/mouth |
| Product Name: | DG360 / DG720 / DG1080 / DG1440 Forklift Mounted Drum Grab | Model: | DG360 / DG720 / DG1080 / DG1440 |
|---|---|---|---|
| Rated Capacity: | 360Kg | Overall Dimensions: | 910×910×850 Mm |
| Adjustable Clamping Height: | 525–750 Mm | Net Weight: | 75 Kg |
Product Name

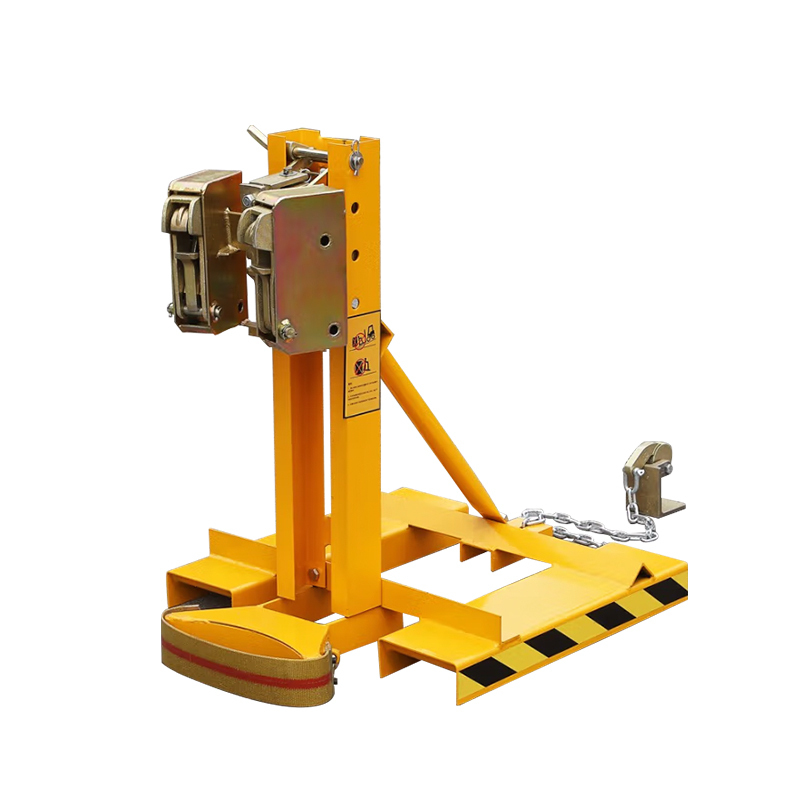

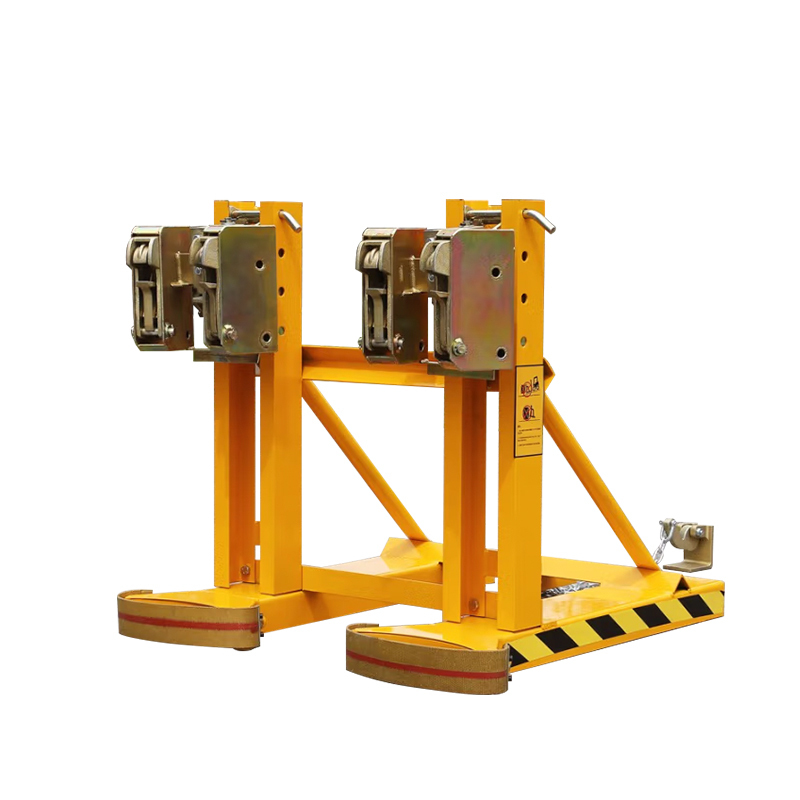

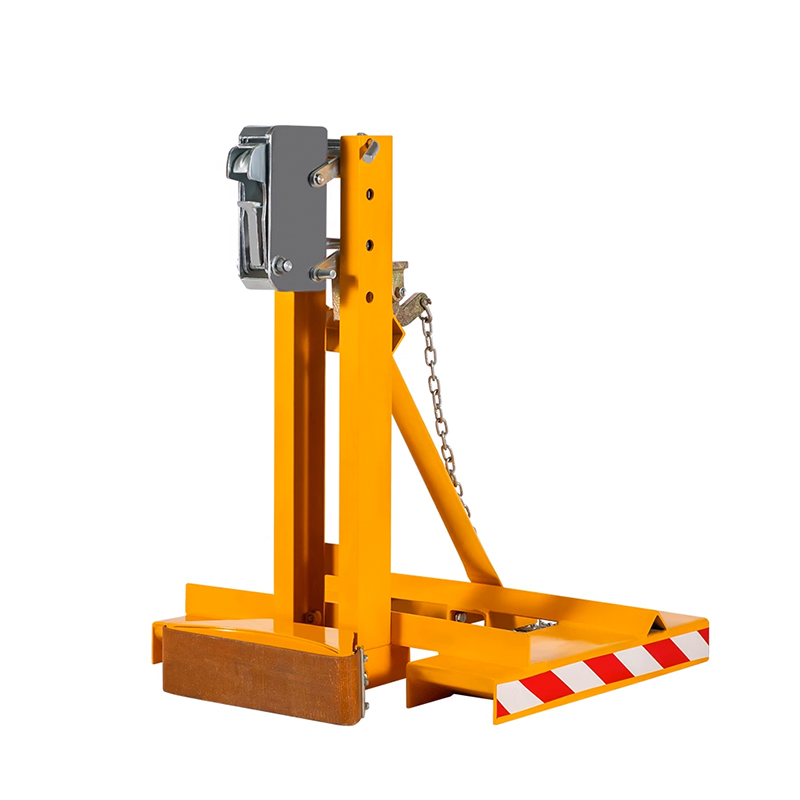

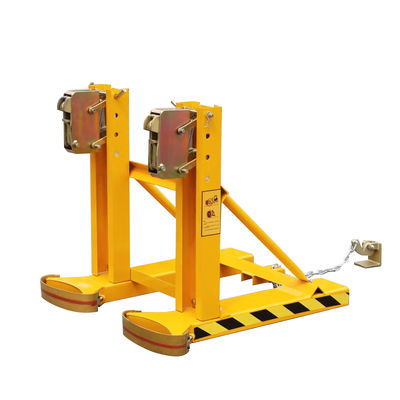

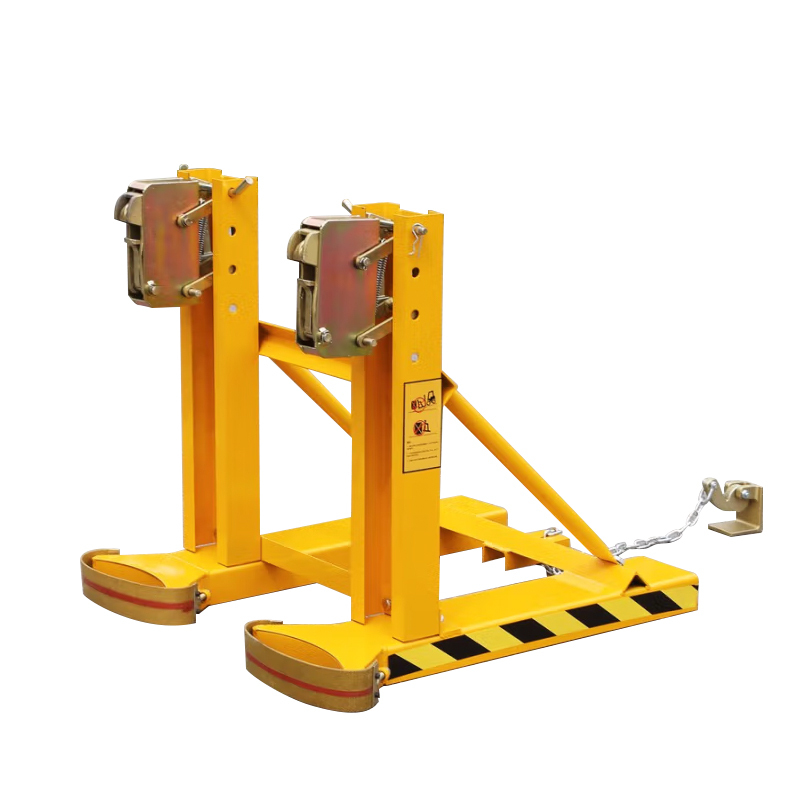

DG360 / DG720 / DG1080 / DG1440 Forklift Mounted Drum Grab
Product Description
A reliable, forklift-mounted drum grab for lifting and transporting steel or plastic drums. Built with a reinforced bracket and automatic alloy clamp, it ensures safe, hands-free operation. The core gripping head is made of durable low-alloy steel, and the gravity-actuated mechanism strengthens the grip as drum weight increases. Ideal for handling lighter drums and low-frequency applications.
Highlight
1. Auto-locking clamp for secure grip
2. Handles both steel and plastic drums
3. Heavy-duty alloy steel gripping head
4. Self-locking latches prevent slippage
5. Fits forklifts and loaders with reinforced slots
6. Gravity-enhanced grip boosts safety
7. Wide straps reduce abrasion and improve stability
8. Suited for light-duty, occasional drum handling
Product Specifications
| Model | DG360A | DG360B | DG720A | DG720B |
| Type | Single Drum, Single Clamp | Single Drum, Double Clamps | Double Drum, Double Clamps | Double Drum, Four Clamps |
| Rated Capacity | 360 kg | 360 kg | 360×2 kg | 360×2 kg |
| Net Weight | 41 kg | 45 kg | 63 kg | 75 kg |
| Overall Dimensions | 780×670×850 mm | 780×670×850 mm | 910×910×850 mm | 910×910×850 mm |
| Adjustable Clamping Height | 525–750 mm | 525–750 mm | 525–750 mm | 525–750 mm |
| Fork Pocket (L×W) | 150×55 mm | 150×55 mm | 150×55 mm | 150×55 mm |
| Outer Width Between Fork Sleeves | 660 mm | 660 mm | 750 mm | 750 mm |
| Outer Width of Fork Sleeves | 600 mm | 600 mm | 755 mm | 755 mm |
