|Place of Origin:||China|
|Minimum Order Quantity:||1 set|
|Packaging Details:||Sandard Export Package|
|Delivery Time:||15 days|
|Payment Terms:||T/T, L/C, D/A, D/P, Western Union, MoneyGram|
|Supply Ability:||5000 sets/mouth|

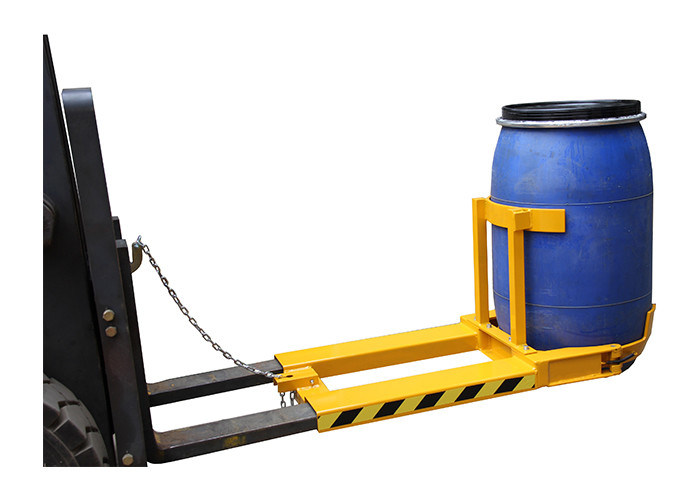

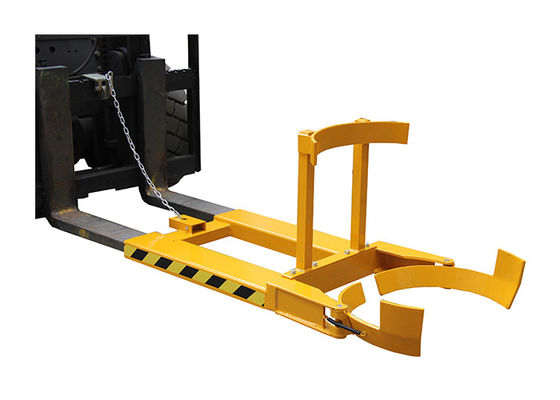

|Product Name:||DG400 Forklift Mounted Anchor-ear Drum Grab Load Capacity 400Kg||Model:||DG400|
|Single Fork Pocket Size:||160x70mm||Capacity:||400Kg|
|Outer Width Of Fork Pocket:||640mm||Overall Size (LxWxH):||1440x640x590mm|
|Fork Pocket Length:||755mm||Drum Size:||30 Gallon (Ø450x700)-55 Gallon ( (Ø572x900) Steel, 210L Plastic, 110L Fibre|
|Net Weight:||57kg||Warranty:||1 Year|
|Certification:||CE,ISO9001||After Service:||On-line Service,Spare Parts|
forklift mounted plastic drum grabber,
30 gallon steel drum grabber
1. Heavy load design, load capacity reaches to 400kgs;
2. Simple structure but useful;
3. Widely used with forklift to handle and stack drums;
4. Widely used with forklift to handle and stack 200L open plastic drums;
Fully automatic operation.
Secured to the truck by fork pockets and screw clamps.
Can be designed for use with 210 liter open top and tight head egg shaped plastic drums.
Arms close automatically around the base of the drum holding it securely during transportation.
|Drum Size||30 gallon (Ø450x700)-55 gallon ( (Ø572x900) steel, 210L plastic, 110L fibre|
|Single Fork Pocket size||mm||160x70|
|Fork Pocket Length||mm||755|
|Outer Width of Fork Pocket||mm||640|
|Overall Size (LxWxH)||mm||1440x640x590|
