| Place of Origin: | China |
|---|---|
| Brand Name: | Sinolift |
| Certification: | CE |
| Model Number: | DG720E |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Sandard Export Package |
| Delivery Time: | 15 days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 5000 sets/month |

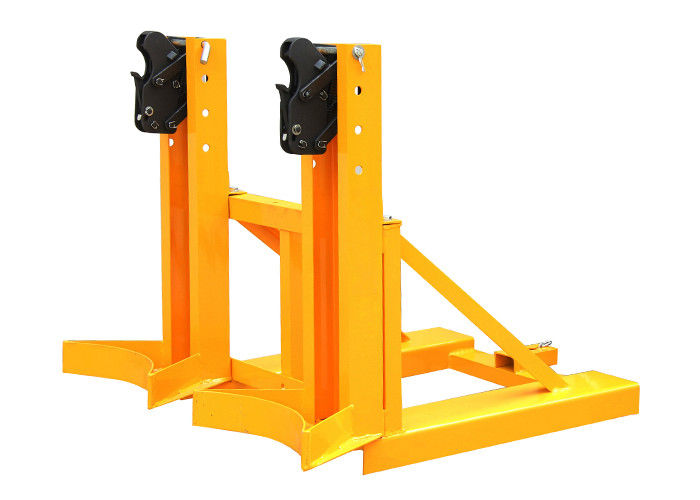

| Product Name: | DG720E Forklift Mounted Drum Grab Single Grip Type Grab Lifting Height 750mm Drum Grabber Load Capacity Double 360Kg | Capacity: | 2X360kg |
|---|---|---|---|
| Load Center: | 1150mm | Overall Size: | 1030X1020X850mm |
| Straddle Inner Width: | 450mm | Staddle Outline Width: | 750mm |
| Straddle Length: | 750mm | Foks Leg (length*width) Height: | 150X55mm |
| Net Weight: | 65Kg | Certification: | CE,ISO9001 |
| Warranty: | 1 Year | After Service: | On-line Service,Spare Parts |
| High Light: | 750mm lifting height drum grabs,single grip type forklift drum grab |
||
Feature:
1. Suitable for transporting thin rimmed drums and deformed drums.
2. Grab, lift, move and place drums without the operator leaving driver's seat.
3. Completely Mechanical and Automatic drum grab requires no hydraulic or
electrical connections.
4. Automatic clamping mechanism for handling steel and plastic drums in high
volume applications.
5. Use special black eagle-gripper structure, wholly made of cast steel; easier to operate, more durable.
6. Carriage mounted models are available to mount directly on the carriage of most lift trucks for tight aisle applications.
7. Can handle 1 or 2 drums simultaneously.
8.Totally enclosed fork pockets with attached safety chain and cam lock secures attachment to lift truck.
9. Single-Grip type grabs.
« Purely mechanical structure design, convenient to work with forklift truck; can automatically move 1~2 drums at one time just with forklift truck’s movement without any other force
« Use special black eagle-gripper structure, wholly made of cast steel; easier to operate, more durable
« Be able to deal with more types of drums, including steel oil drum and PE oil drum
« Full automatic mechanical operation to suit various types of drums; each drum will be gripped tight by auto-adjustable double-eagle-gripper unit which will not only ease the stress put on the edge of drum but also ensure reliable transporting and stacking partly-damaged drums or unevenly-placed drums
« Enable loading or unloading drum content inside limited space such as a container; massively improve on space utilization
« Auto-lock is installed for connecting forks to make sure the drums won’t slip off when they’re on gradient or bumpy road
Specification:
| Model | DG720E | |
| Capacity | kg | 360X2 |
| Net Weight | kg | 65 |
| Overall Size | mm | 1030*1020*850 |
| Load Center | mm | 1150 |
| Grab Min. Height | mm | 525 |
| Grab Max. Height | mm | 750 |
| Grab Middle Height | mm | 600--675 |
| Foks leg (length*width) | mm | 150*55 |
| Straddle inner Width | mm | 450 |
| Staddle outline Width | mm | 750 |
| Straddle Length | mm | 750 |
