| Place of Origin: | China |
|---|---|
| Brand Name: | Sinolift |
| Certification: | CE |
| Model Number: | DG720D |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Sandard Export Package |
| Delivery Time: | 15 days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 5000 sets/month |

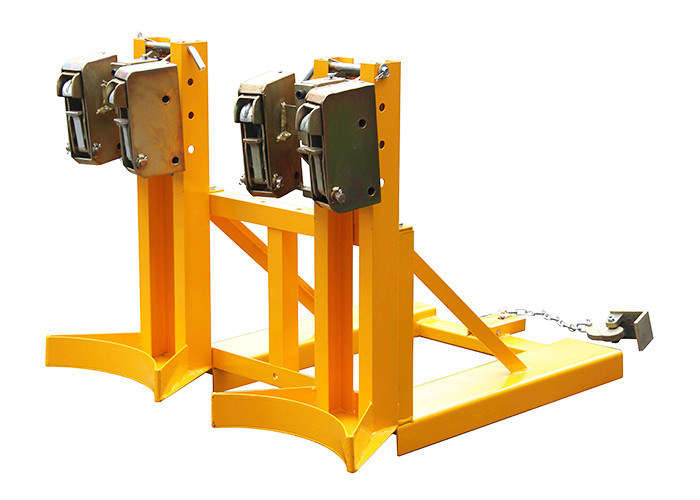

| Product Name: | DG720D Forklift Mounted Drum Grab Double-Grip Type Grabs Capacity Double 360Kg | Capacity: | 2X360kg |
|---|---|---|---|
| Overall Size: | 1030X1020X850mm | Straddle Inner Width: | 450mm |
| Staddle Outline Width: | 750mm | Load Center: | 1150mm |
| Foks Leg (length*width) Height: | 150X55mm | Grab Min. Height: | 465mm |
| Grab Max. Height: | 690mm | Grab Middle Height: | 600-675mm |
| Straddle Length: | 750mm | Net Weight: | 85Kg |
| Warranty: | 1 Year | After Service: | On-line Service,Spare Parts |
| Highlight: | double grip type steel drum grabber,forklift mounted plastic drum grabber |
||
Feature:
- Grab, lift, move and place drums without the operator leaving driver's seat;
- Completely Mechanical and Automatic drum grab requires no hydraulic or
electrical connections;
- Automatic clamping mechanism for handling steel and plastic drums in high
volume applications
- Carriage mounted models are available to mount directly on the carriage of
most lift trucks for tight aisle applications;
- Can handle 1 or 2 drums simultaneously;
- Totally enclosed fork pockets with attached safety chain and cam lock secures
attachment to lift truck.
- Double-Grip type grabs.
1. Grab, lift, move and place drums without the operator leaving driver's seat;
2. Completely Mechanical and Automatic drum grab requires no hydraulic or
electrical connections;
3. Automatic clamping mechanism for handling steel and plastic drums in high
volume applications
4. Carriage mounted models are available to mount directly on the carriage of
most lift trucks for tight aisle applications;
5. Can handle 1 or 2 drums simultaneously;
6. Totally enclosed fork pockets with attached safety chain and cam lock secures attachment to lift truck.
7. Double-Grip type grabs. Adjustable support leg from single Eagle-grip to double Eagle-grip.
8. Arc Bracket.
Specification:
| Model | DG720D | |
| Capacity | kg | 360*2 |
| Net Weight | kg | 86 |
| Overall Size | mm | 1030*1020*850 |
| Load Center | mm | 1150 |
| Grab Min. Height | mm | 465 |
| Grab Max. Height | mm | 690 |
| Grab Middle Height | mm | 600--675 |
| Foks leg (length*width) | mm | 150*55 |
| Straddle inner Width | mm | 450 |
| Staddle outline Width | mm | 750 |
| Straddle Length | mm | 750 |
