| Place of Origin: | China |
|---|---|
| Brand Name: | SINOLIFT |
| Certification: | CE |
| Model Number: | DYC-G |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Sandard Export Package |
| Delivery Time: | 15 days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union |
| Supply Ability: | 1000 sets/mouth |

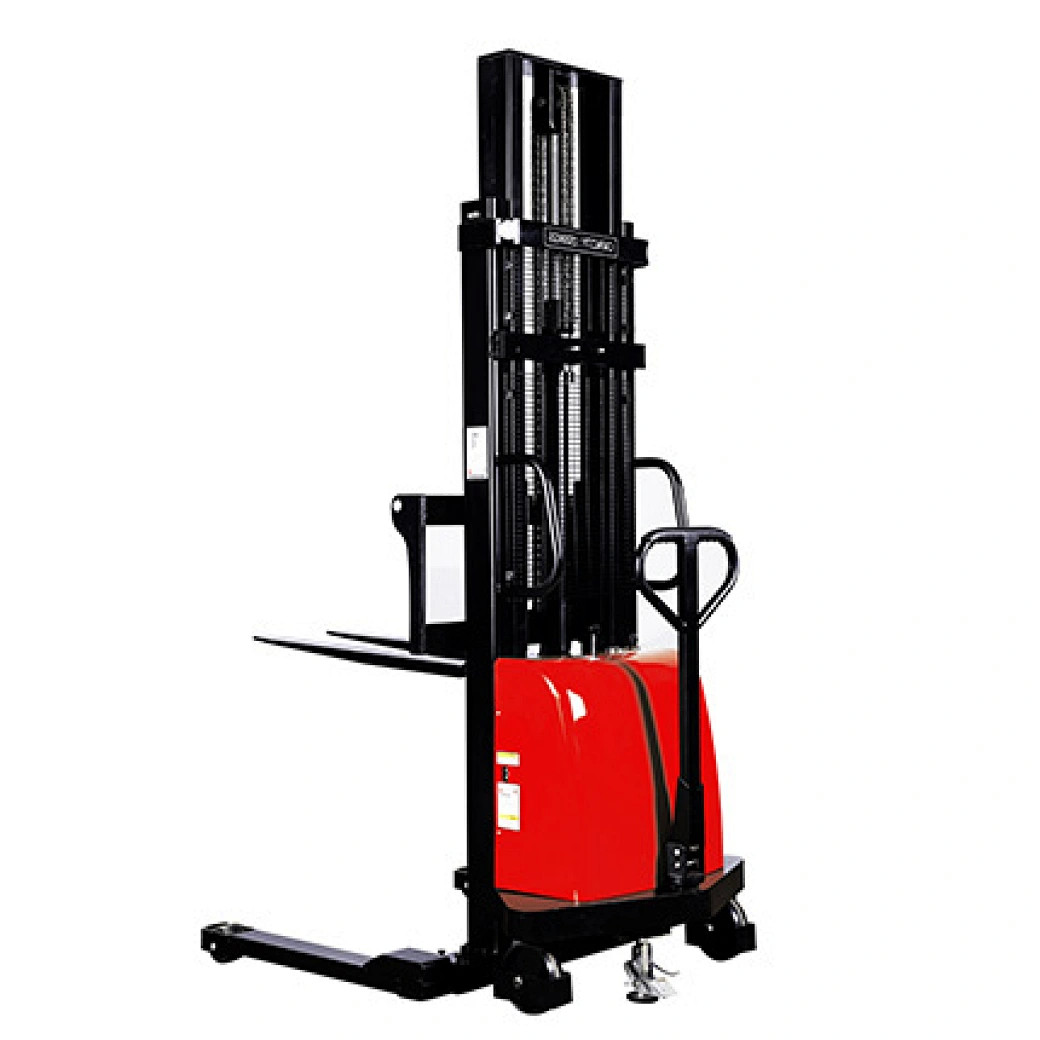

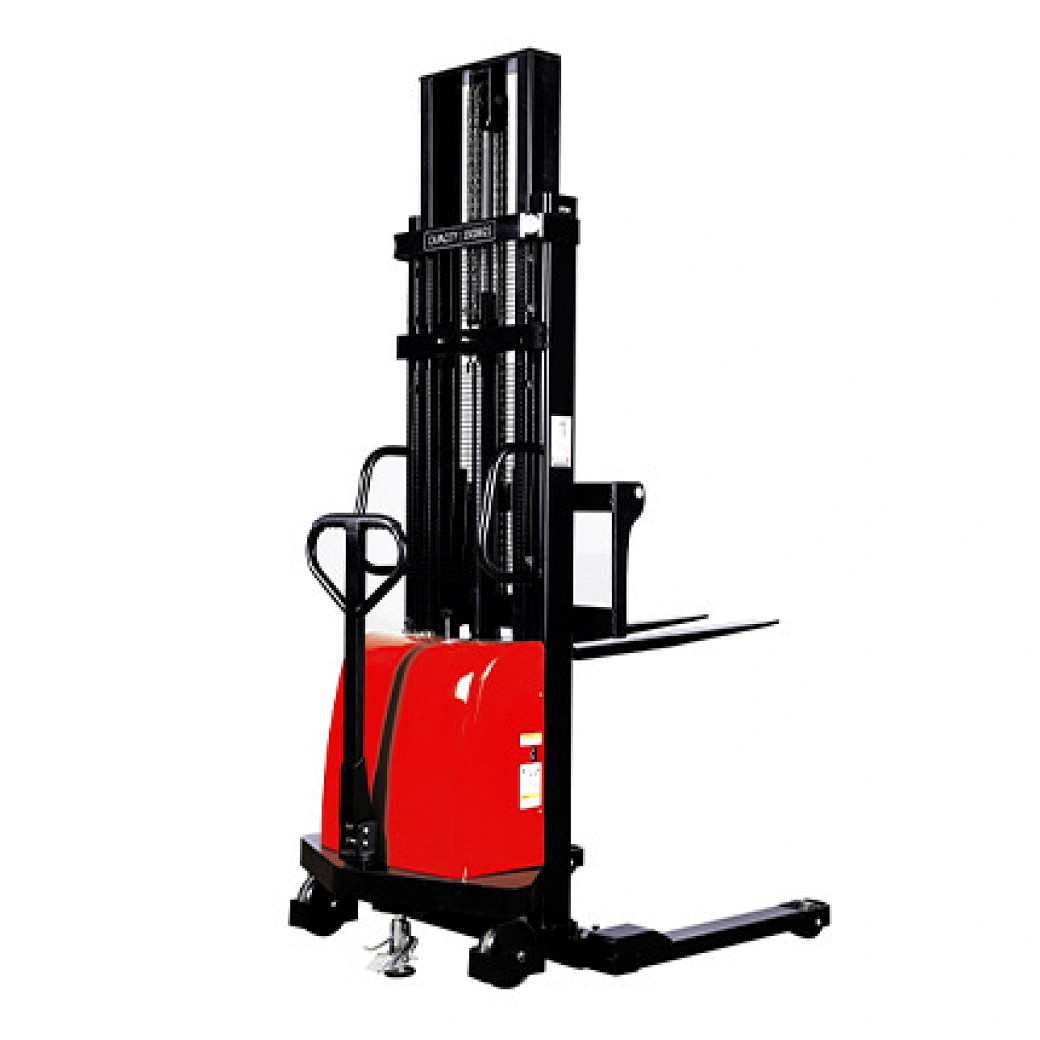

| Product Name: | DYC-G Semi-Electric Straddle Leg Stacker | Driving Style: | Pedestrian |
|---|---|---|---|
| Load Capacity Q: | 2000kg | Warranty: | 1 Year |
| After Service: | On-line Service,free Spart Parts |
| Model |
Straddle Leg Stacker
DYC10-G
|
Straddle Leg Stacker
DYC15-G
|
|
| Rated Capacity | Q(kg) | 1000 | 1500 |
| Load Center | C(mm) | 400 | 400 |
| Lifting Height | H(mm) | 1600/2000/2500/3000 | 1600/2000/2500 |
| Min. Fork Height | H3(mm) | 80 | 80 |
| Fork Length | L(mm) | 970 | 970 |
| Fork Width (Adjustable) | E(mm) | 320-850 | 320-850 |
| Turngin Radius | Wa(mm) | 1335 | 1335 |
| Outer Leg Width | B1(mm) | 1080-1360 | 1080-1360 |
| Inner Leg Width | B2(mm) | 880-1160 | 880-1160 |
| Maximum Height of Door Frame During Operation | H2(mm) | 2165/2532/3032/3532 | 2165/2532/3032 |
| Height of Door Frame When Retracting | H1(mm) | 2165/1565/1815/2065 | 2165/1565/1815 |
| Overall Width | B(mm) | 1080/1360 | 1080/1360 |
| Overall Length | A(mm) | 1685 | 1685 |
| Minmum Clearance | H4(mm) | 50 | 50 |
| Lifting Speed (unladen/laden) | mm/s | 230/130 | 230/130 |
| Lowering Speed (unladen/laden) | mm/s | 400*500 | 400*500 |
| Outside Diameter of Front Wheel | mm | 100*70 | 100*70 |
| External diameter of rear wheel | mm | 180*50 | 180*50 |
| Lifting Motor | v/kw | 12/1.6 | 12/1.6 |
| Battery | v/ah | 12V/120AH | 12V/120AH |
| Charger | v/a | 12V/18A | 12V/18A |
| Net Weight | kg | 460 | 460 |
