| Place of Origin: | China |
|---|---|
| Brand Name: | SINOLIFT |
| Certification: | CE |
| Model Number: | CPD08M CPD10M CPD16M |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Sandard Export Package |
| Delivery Time: | 15 days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union |
| Supply Ability: | 1000 sets/mouth |
| Product Name: | SINOLIFT CPD08M CPD10M CPD16M ELECTRIC FORKLIFT | Driving Style: | Pedestrian |
|---|---|---|---|
| Load Capacity Q: | 1600kg | Warranty: | 1 Year |
| After Service: | On-line Service,free Spart Parts |

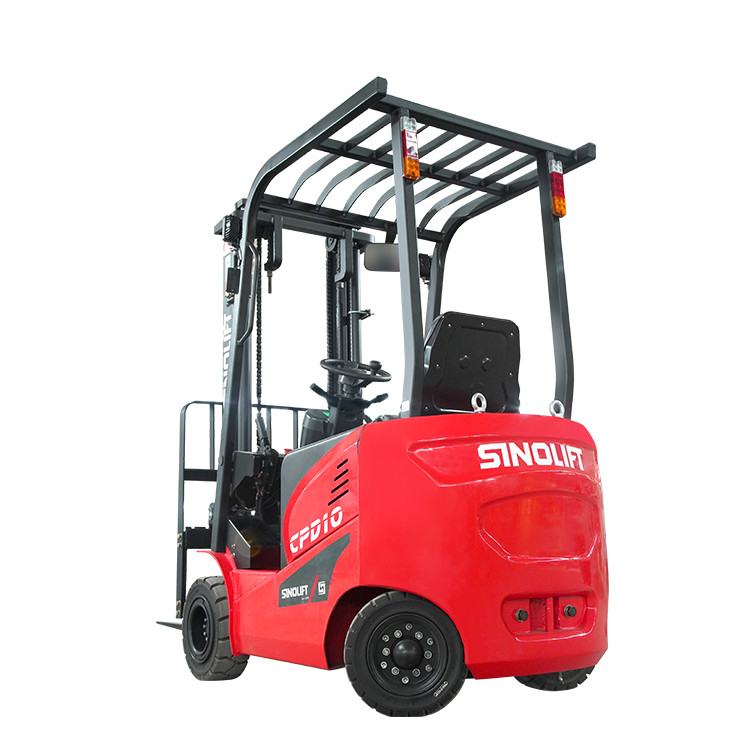

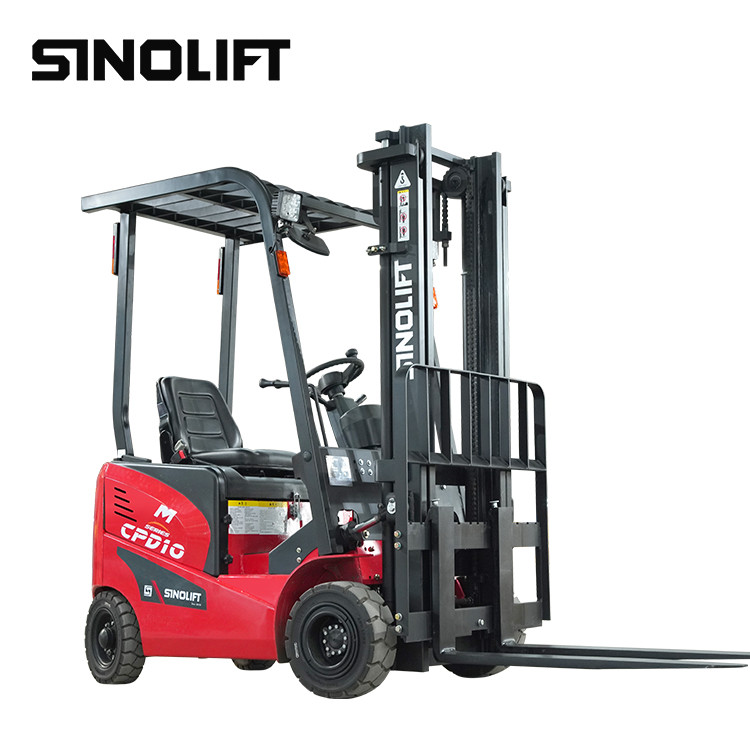

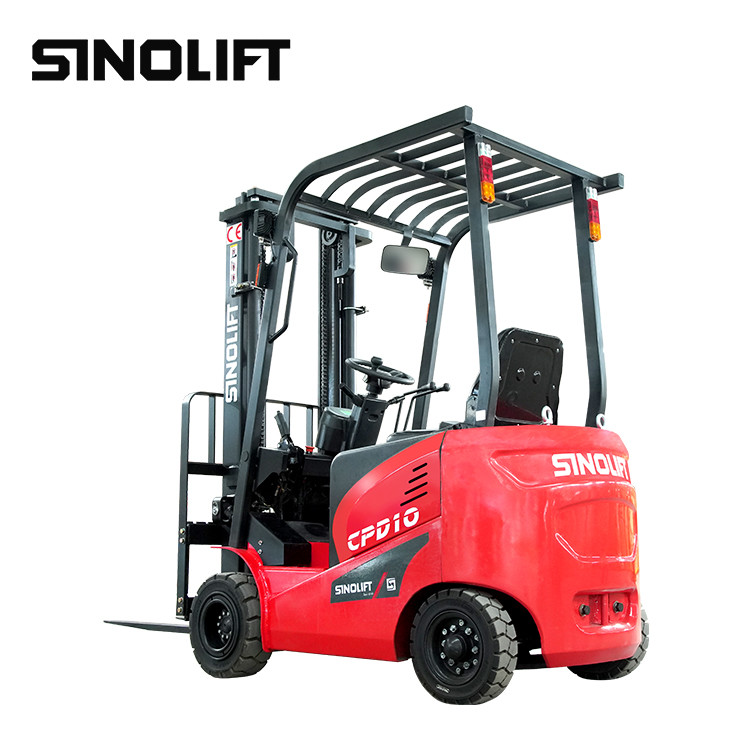

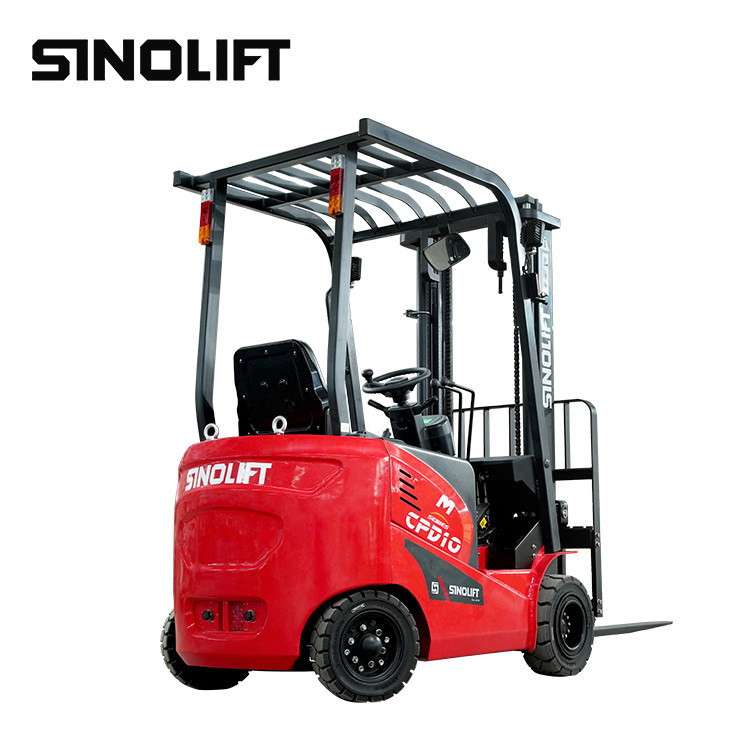

SINOLIFT CPD08M CPD10M CPD16M Mini ELECTRIC FORKLIFT
Compact forklift with proven ACtechnology. Efficient, smooth running and powerful performangmake your work more productive. The safety designed driver'sspace makes your operating more comfortable. An idealarrangement of components ensures easy access andconvenience for maintenance.
| Identification | 1.1 | Manufacturer | SINOLIFT | |||||
| 1.2 | Model | CPD08M | CPD10M | CPD12M | CPD16M | |||
| 1.3 | Power Type | Electric | ||||||
| 1.2 | Type of operation | Seated | ||||||
| 1.4 | Load capacity/rated load | Q | kg | 800 | 1000 | 1200 | 1 600 | |
| 1.5 | Load center distance | C | mm | 400 | 400 | |||
| 1.3 | Loaddistance, center of drive axle to fork | L2 | mm | 314 | 354 | |||
| 1.6 | Wheelbase | L1 | mm | 1150 | 1250 | |||
| Dimension | 2.1 | Mast/fork carriage tilt forward/backward | a/B | 5/8 | 5/8 | |||
| 2.2 | Mast lowered height | H1 | mm | 1990 | 2020 | |||
| 2.3 | Free lift height | H3 | mm | / | / | |||
| 2.4 | Standard mast lifting height | H | mm | 3000 | 3000 | |||
| 2.5 | Extended mast height | H2 | mm | 4090 | 4075 | |||
| 2.6 | Overhead load guard height | H4 | mm | 2000 | 2100 | |||
| 2.7 | Seat height | mm | 920 | 1020 | ||||
| 2.8 | Coupling height | mm | 300 | 320 | ||||
| 2.9 | Overall length (with fork) | L | mm | 2580 | 2800 | |||
| 2.1 | Overall length (without fork) | L" | mm | 1810 | 2030 | |||
| 2.11 | Overall width | W1 | mm | 990 | 990 | |||
| 2.12 | Fork dimension | TxWxL4 | mm | 30x100x770 | 30x100x770 | |||
| 2.13 | Type of fork carriage | ISO23282A | ISO2328 2A | |||||
| 2.14 | Fork carriage width | mm | 1060 | 1060 | ||||
| 2.15 | Fork carriage spread width | W5 | mm | 970 | 970 | |||
| 2.16 | Ground clearance under mast laden | H5 | mm | 100 | 130 | |||
| 2.17 | Ground clearance from center of wheelbase | H6 | mm | 130 | 140 | |||
| 2.18 | Min. Right Angle Stacking Aisle Width (pallet size 1000x1000) | Ast | mm | 3264 | 3454 | |||
| 2.19 | Min. Right Angle Stacking Aisle Width (pallet size 1200x1200) | Ast | mm | 3064 | 3254 | |||
| 2.2 | Turning radius | r | mm | 1550 | 1700 | |||
