| Place of Origin: | China |
|---|---|
| Brand Name: | Sinolift |
| Certification: | CE |
| Model Number: | NAG |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Sandard Export Package |
| Delivery Time: | 15 days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union |
| Supply Ability: | 1000 sets/mouth |
| Product Name: | SINOLIFT NF Series Hand Pallet Truck Loading Capacity 3000kg | Driving Style: | Pedestrian |
|---|---|---|---|
| Load Capacity Q: | 3000kg | Warranty: | 1 Year |
| After Service: | On-line Service,free Spart Parts |

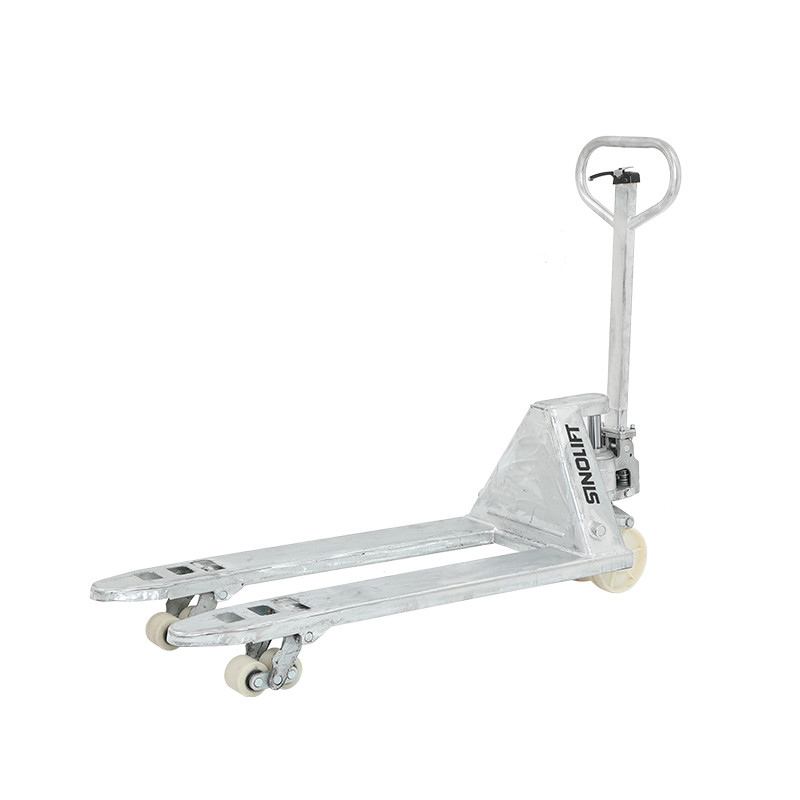

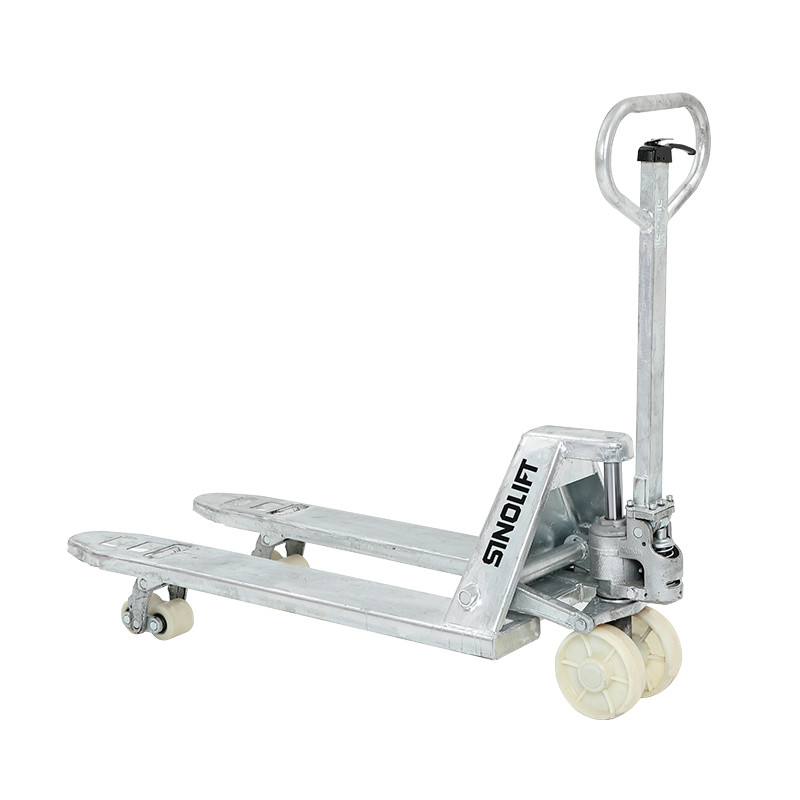

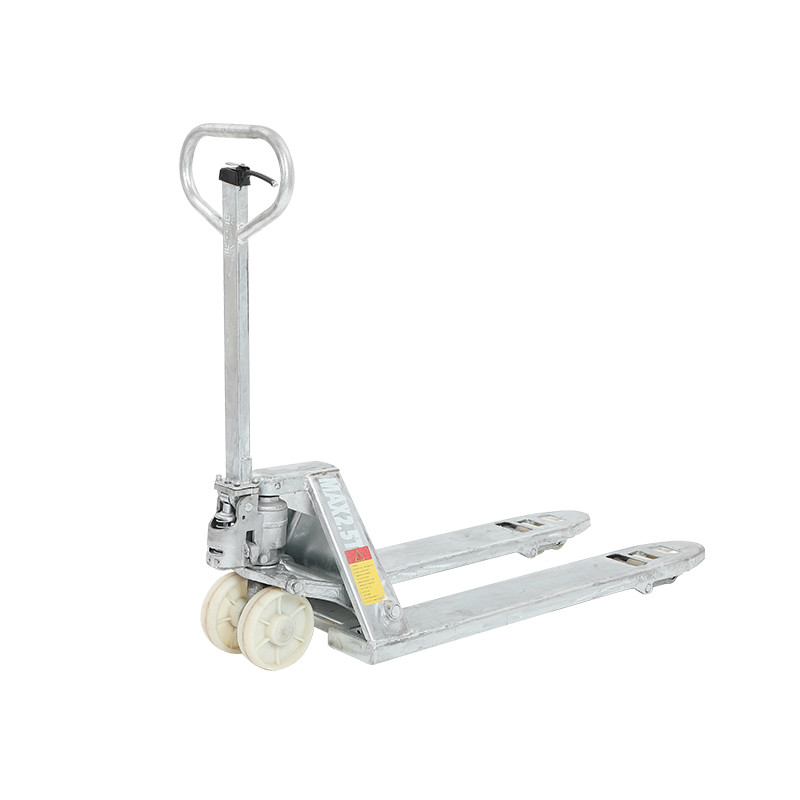

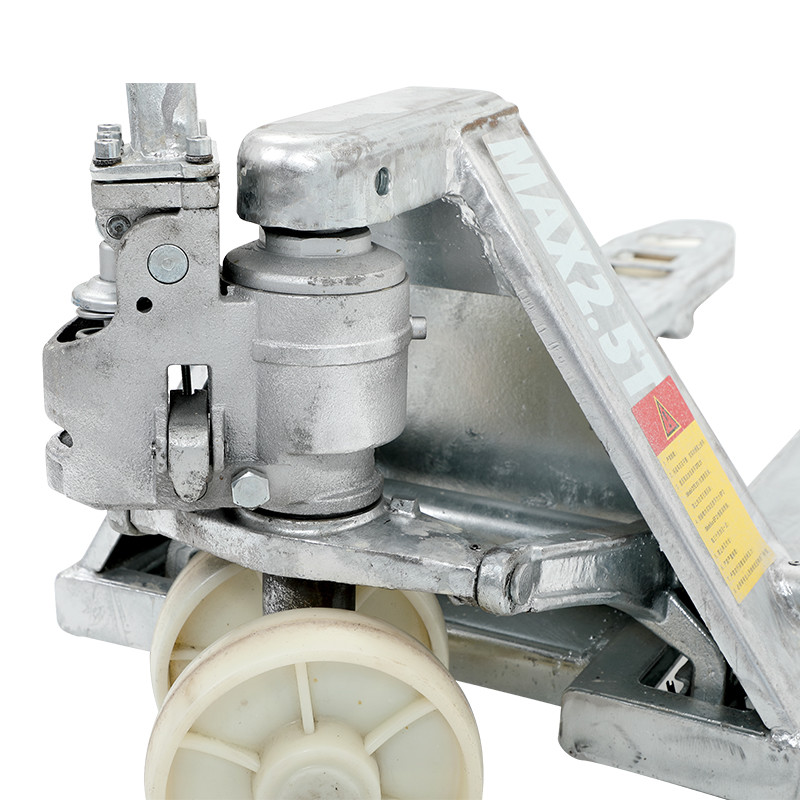

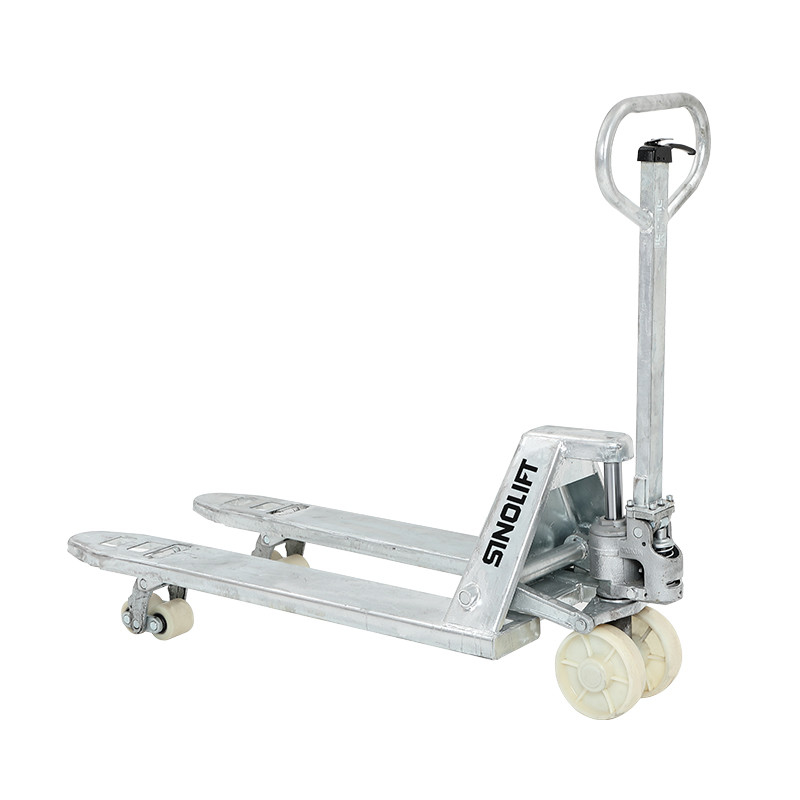

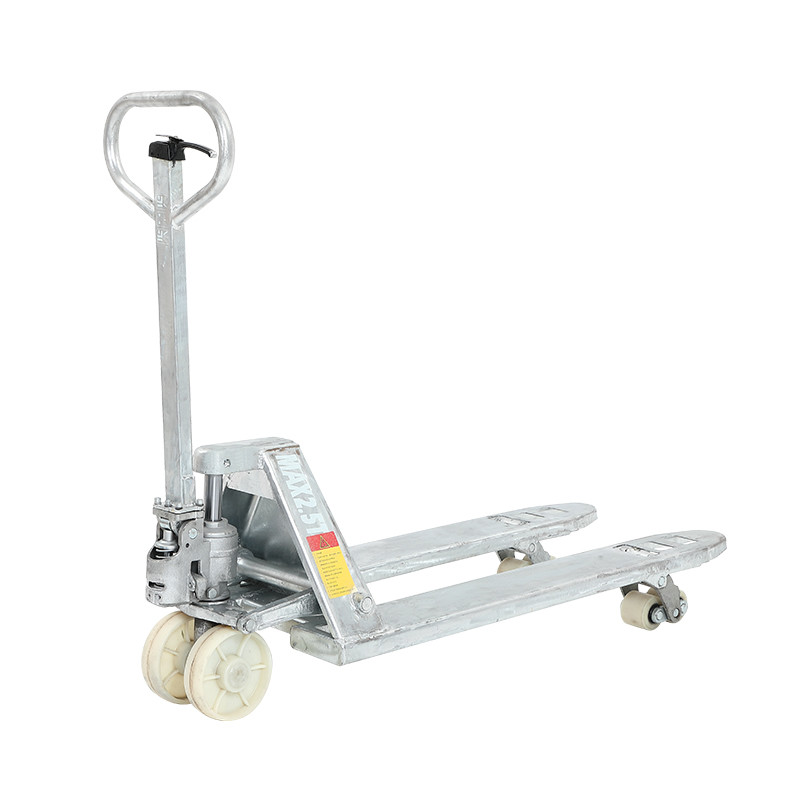

The galvanized and stainless steel hand pallet trucks are designed for excellent corrosion resistance, making them ideal for use in humid environments or areas where high hygiene standards are required.
· Sturdy pallet truck featuring a tray head and reinforced side sills.
· Hot-dip galvanized finish for enhanced long-term durability.
· Equipped with stainless steel bearings, axles, screws, and bolts.
| Model | NAG Series | |
| Rated Capacity | kg | 5000/2000/2500/3000/5000 |
| Width over forks | mm | 460/520/540/550/680/685 |
| Steering Wheel | mm | 180x62 NYLON or PU |
| Fork Length | mm | 810/980/1070/1150/1220 |
| Load Wheel | mm | Φ78*70(Tandem) |
| Max.Fork Height | mm | 200 |
| Min.Fork Height | mm | 80 |
| Overall Length | mm | 1500 |
| Fork Width | mm | 150 |
| Width inside forks | mm | 160,220,240,250 |
| Under Clearance | mm | 40 |
| Strokes | 50 | |
| Over Height | mm | 1200 |
| Steer Angle | 230deg | |
| Drive Unit Length | mm | 370 |
| Weight | kg | 78 |
