| Place of Origin: | China |
|---|---|
| Brand Name: | Sinolift |
| Certification: | CE |
| Model Number: | CBD20M |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Sandard Export Package |
| Delivery Time: | 15 days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union |
| Supply Ability: | 1000 sets/mouth |

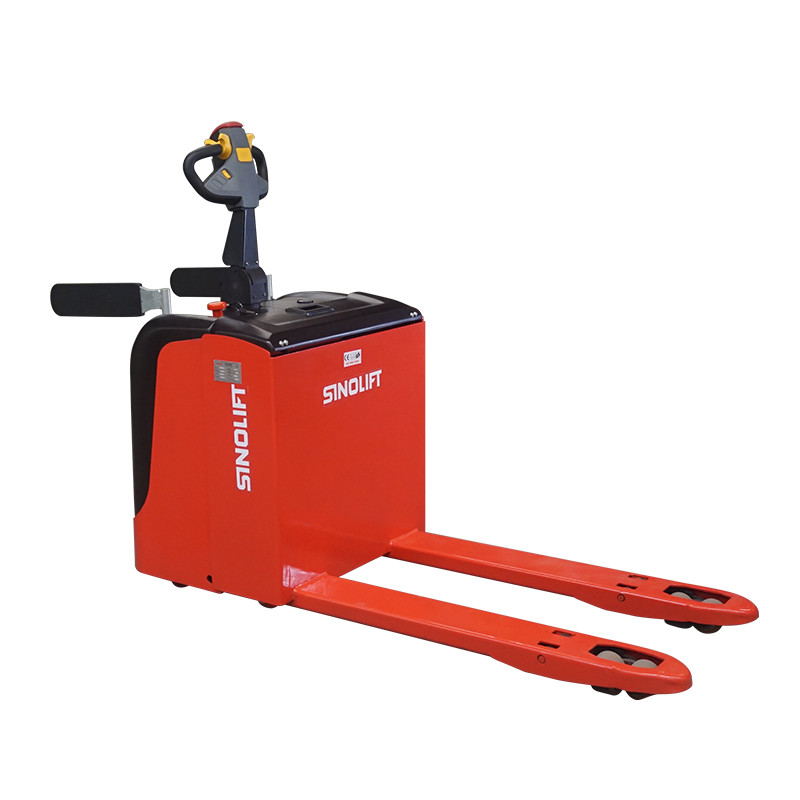

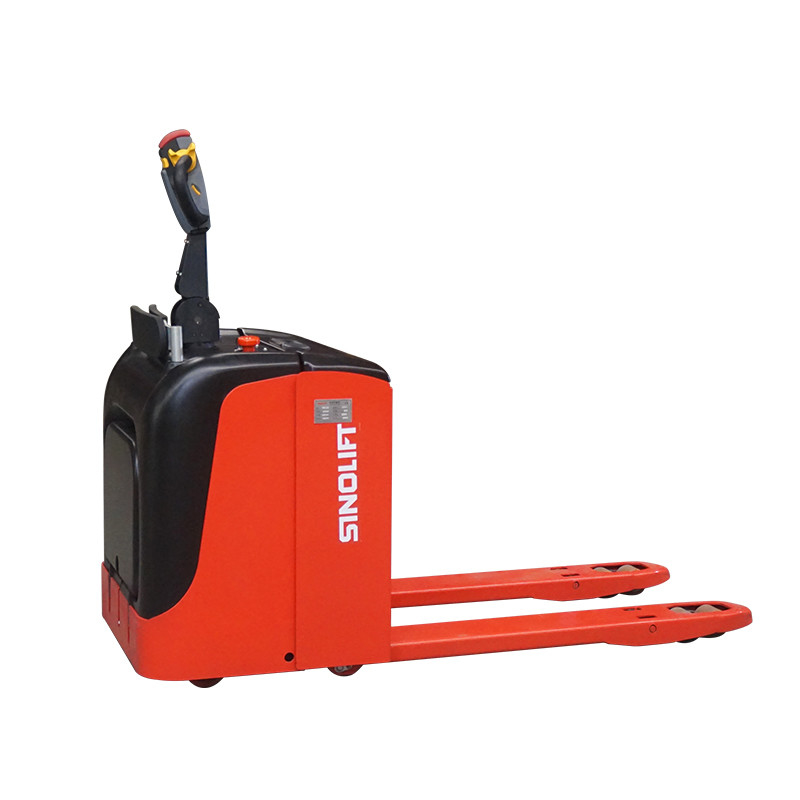

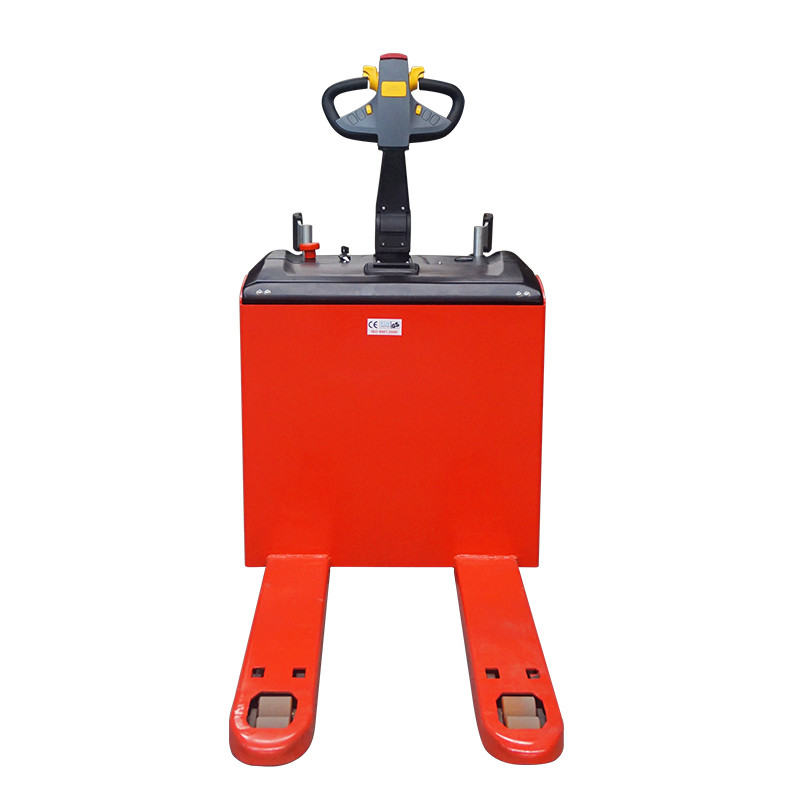

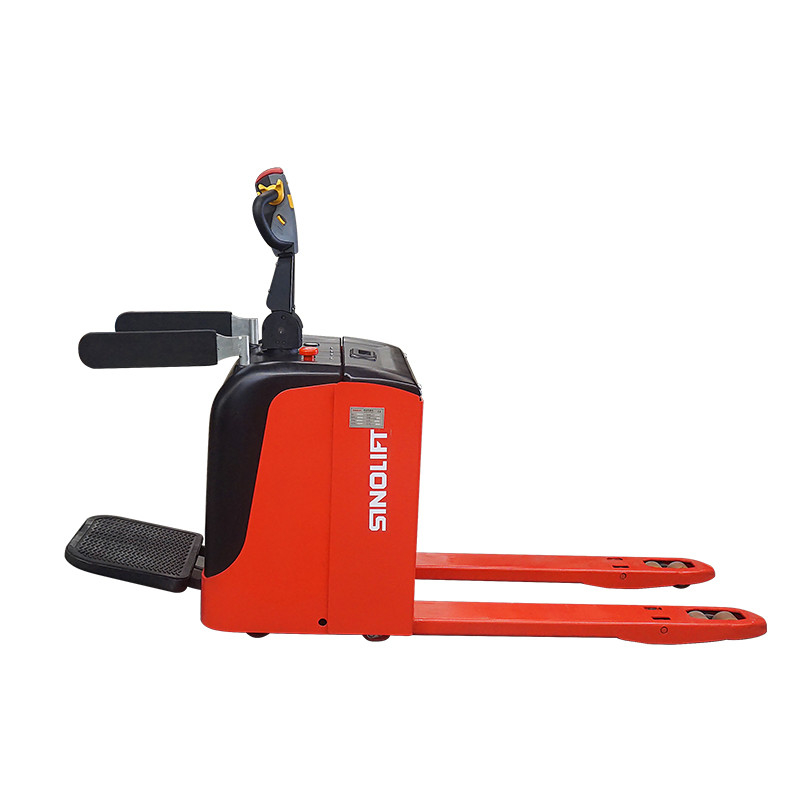

| Product Name: | Sinolift 2.5 Ton ~ 3.0 Ton Series Electric Pallet Truck CBD20M Used In The Warehouse Environment | Driving Style: | Pedestrian |
|---|---|---|---|
| Load Capacity Q: | 2000kg | Load Center C: | 600mm |
| Overall Length: | 1780mm | Overall Width: | 690mm |
| Overall Height: | 1310mm | Power Of Driving Motor: | 1.5kw |
| Power Of Lift Motor: | 2.2kw | Net Weight: | 350kg |
| Warranty: | 1 Year | After Service: | On-line Service,free Spart Parts |
l Maintenance-free AC drive system for optimal performance.
l Premium quality controller ensuring reliable operation.
l Electromagnetic braking system for enhanced safety.
l Concealed shock-absorbing pedal design, offering high comfort during driving.
l High-performance hydraulic station with low noise, minimal vibration, and high efficiency.
l Electronic steering system, offering lightweight control, reduced noise, and effortless maneuvering.
l Emergency reverse device for enhanced safety.
| Model | CBD20M | CBD25M | CBD30M | ||
| Power Type | Electric | Electric | Electric | ||
| Operation Type | Stand-on | Stand-on | Stand-on | ||
| Steering Mode | Electric Power Steering | ||||
| Load Capacity | Q | kg | 2000 | 2500 | 3000 |
| Load Center | C | mm | 600 | 600 | 600 |
| Wheelbase | y | mm | 1410 | 1410 | 1410 |
| Total Weight(With Battery) | kg | 650 | 650 | 650 | |
| Axle Load( Loaded):rear/front | kg | 900/1750 | 1070/2080 | 1245/2425 | |
| Axle Load( Unloaded):rear/front | kg | 545/105 | 545/105 | 545/105 | |
| Overall Length | L1/L2 | mm | 1800/2265 | 1800/2265 | 1800/2265 |
| Overall Width | W1 | mm | 810 | 810 | 810 |
| Fork Size | l/e/s | mm | 1150×170×55 | 1150×170×55 | 1150×170×55 |
| Width of Fork | b2 | mm | 540/685 | 540/685 | 540/685 |
| Ground Clearance at Fork | h3 | mm | 85 | 85 | 85 |
| Lifting Height | h2 | mm | 205 | 205 | 205 |
| Ground Clearance at center of wheelbase | m1 | mm | 55 | 55 | 55 |
| Height of Operating Handlebar(Min./Max.) | h14 | mm | 1000/1380 | 1000/1380 | 1000/1380 |
| Turning Radius(Footboard Fold/Unfold) | Wa | mm | 1660/2100 | 1660/2100 | 1660/2100 |
| Right Stack Aisle Width | Ast | mm | 2400/2840 | 2400/2840 | 2400/2840 |
| (Pallet size 1000*1200,Footboard Fold/Unfold) | |||||
| Right Stack Aisle Width | Ast | mm | 2315/2755 | 2315/2755 | 2315/2755 |
| (Pallet size 800*1200,Footboard Fold/Unfold) | |||||
| Tyre Type | Polyurethane | Polyurethane | Polyurethane | ||
| Tyre Size(Front) | mm | 85*70 | 85*70 | 85*70 | |
| Tyre Size(Balance Wheel) | mm | 115*55 | 115*55 | 115*55 | |
| Tyre Size(Driving Wheel) | mm | 230*75 | 230*75 | 230*75 | |
| Tyres Number front/rear(x=drive wheel) | 4/1x+2 | 4/1x+2 | 4/1x+2 | ||
| Drive Damping Method | Drive frame integral rail type spring shock absorption | ||||
| Traveling Speed(Loaded/Unloaded) | Km/h | 7.5/8 | 6.0/7 | 5.0/7 | |
| Lifting Speed(Loaded/Unloaded) | mm/s | 22/35 | 22/30 | 22/30 | |
| Lowering Speed(Loaded/Unloaded) | mm/s | 30/26 | 30/26 | 30/26 | |
| Max. Gradeability(Loaded/Unloaded) | % | 85 | 85 | 65 | |
| Service Brake Type | Electromagnetic/Regeneration | ||||
| Parking Brake Type | Electromagnetic | ||||
| Drive Motor Power(AC) | KW | 1.5 | 1.5 | 1.5 | |
| Pump Motor Power(DC) | KW | 0.8 | 0.8 | 2.2 | |
| Battery Voltage/Capacity K5 | V/Ah | 24V/210 | 24V/210 | 24V/240 | |
| Battery Weight | kg | 188 | 188 | 210 | |
| Controller Brand | CURTIS | CURTIS | CURTIS | ||
| Controller Model | 1232E | 1232E | 1232E | ||
| Noise Level | dB | 70 | 70 | 70 | |
