| Place of Origin: | China |
|---|---|
| Brand Name: | Sinolift |
| Certification: | ISO9001/ CE |
| Model Number: | ML1500 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Sandard Export Package |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Set/Month |
| Product Name: | Sinolift ML1500 Airport Strong Stability Electric Tow Tractor | Rated Loading Capacity: | 3000kg |
|---|---|---|---|
| Power Souce: | AC Motor | Type: | Electric Tow Tractor |
| Color: | Red,Green,Blue,White Etc | Overall Dimensions: | 1490*820*1350mm |
| Operation Type: | Stand-on | Weight: | 1450kg |
| Battery: | D-300A 24V | Lift Drive / Actuation: | Electric Motor |
| After-sales Service Provided: | Video Technical Support,Free Spare Parts | Warranty: | 1 Year |

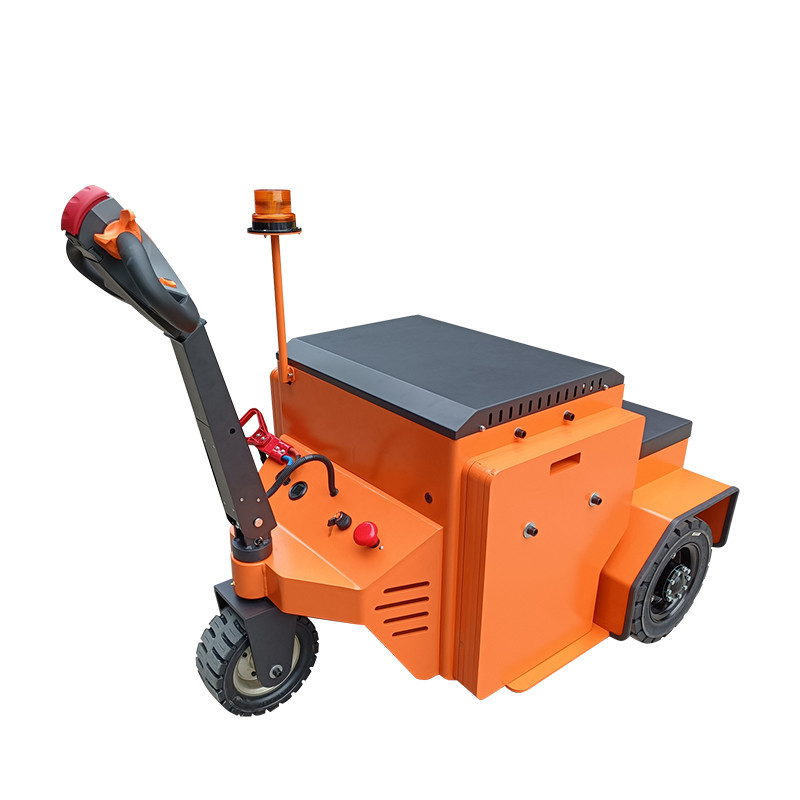

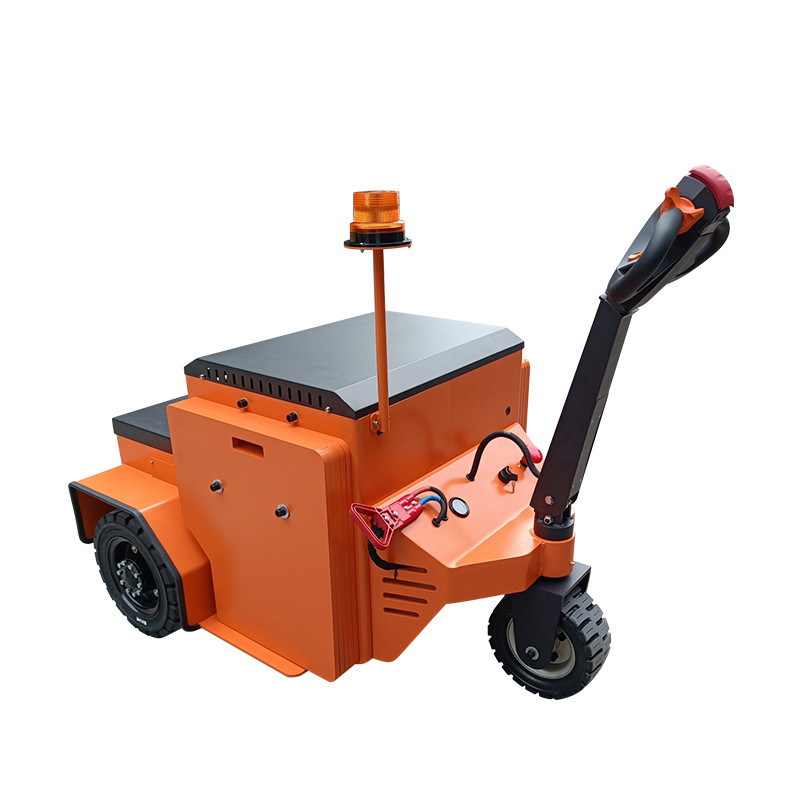

sinolift ML1500 airport Strong stability electric tow tractor
|
Model |
|
ML1500L |
ML2000L |
ML3000L |
|
Rated Traction Load |
kg |
15000 |
20000 |
30000 |
|
Rated Traction Force |
N |
6000 |
7000 |
9000 |
|
Wheelbase |
mm |
980 |
980 |
980 |
|
Weight (including battery) |
kg |
1000 |
1200 |
1350 |
|
Battery Weight |
kg |
400 |
400 |
400 |
|
Drive Wheel Size (Diameter x Width) |
mm |
2XФ375X115 |
2XФ375X115 |
2XФ400X150 |
|
Load Wheel Size (Diameter x Width) |
mm |
Ф280X127 |
Ф280X127 |
Ф280X127 |
|
Number of Drive/Load Wheels (X = Drive Wheels) |
mm |
2X/1 |
2X/1 |
2X/1 |
|
Front Track, Drive End |
mm |
460 |
460 |
460 |
|
Overall Height |
mm |
1225 |
1225 |
1225 |
|
Handle Height at Operating Position |
mm |
950/1200 |
950/1200 |
950/1200 |
|
Coupler Height Range |
mm |
260/360/720 |
260/360/720 |
260/360/720 |
|
Overall Length |
mm |
1560 |
1560 |
1560 |
|
Overall Width |
mm |
1040 |
1040 |
1040 |
|
Minimum Ground Clearance |
mm |
100 |
100 |
100 |
|
Turning Radius |
mm |
1320 |
1320 |
1320 |
|
Travel Speed, Loaded/Unloaded |
km/h |
2~3 |
2~3 |
2~3 |
|
Maximum Traction Force |
N |
9000 |
10000 |
12000 |
|
Gradeability, Loaded/Unloaded |
% |
2月5日 |
2月5日 |
2月5日 |
|
Drive Motor Rated Power (5260 min) |
V/kw |
48/4.0 |
48/5.0 |
48/6.0 |
|
Charger (External) |
V/A |
48/30 |
48/30 |
48/30 |
|
Battery Voltage/Nominal Capacity (K20) |
V/Ah |
48/210 |
48/210 |
48/210 |
|
Battery Weight |
kg |
400 |
400 |
400 |
|
Drive Control Type |
|
AC |
AC |
AC |
|
Noise Level |
dB(A) |
<70 |
<70 |
<70 |
