| Place of Origin: | China |
|---|---|
| Brand Name: | Sinolift |
| Certification: | CE |
| Model Number: | CDD-ES |
| Minimum Order Quantity: | 1 Sets |
| Price: | Negotiable |
| Packaging Details: | Sandard Export Package |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Set/Month |
| Product Name: | SINOLIFT CDD-ES Economic Electric Stacker | Load Capacity: | 1200kg |
|---|---|---|---|
| Load Center: | 600mm | Power Type: | Battery Powered |
| Driving Style: | Pedestrian | Min. Steering Radius: | 1460mm |
| Min. Overall Height: | 2225mm | Max. Lift Height: | 3300mm |
| Brake Type: | Electromagnetic | Net Weight: | 645kg |
| Warranty: | 1 Year | After Service: | On-line Service,free Spart Parts |

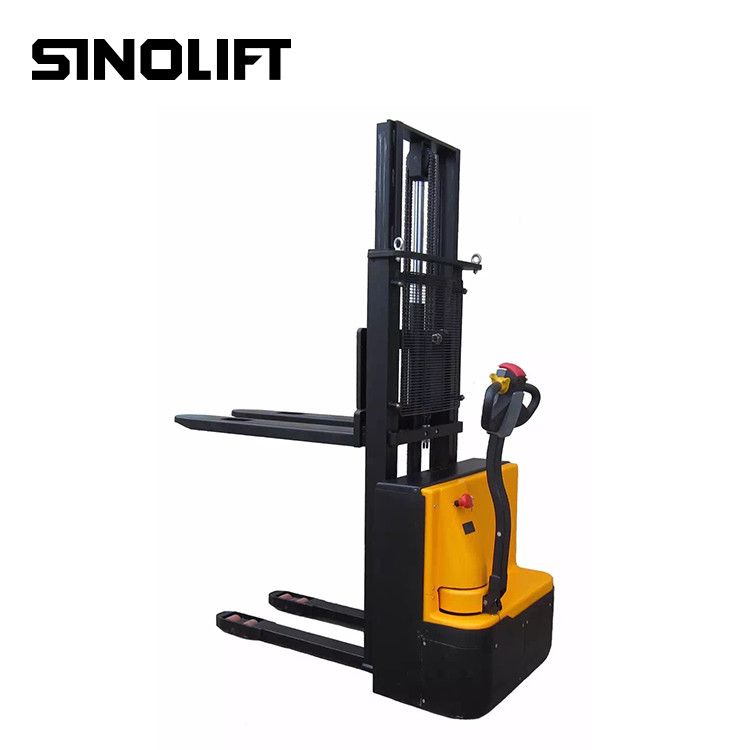

CDD-ES Economic Electric Stacker Made in Shanghai
Simple structure, easy to maintain and repair.
Long operation handle allows more light steering and ensures safe distance for driver.
Horizontal driving wheel, electromagnetic brake.
Curtis electric control, with safety protections.
German brand hydraulic motor, traction battery.
Safety features include a horn,an electromagnetic brake and belly reverse button.
Automatic battery charger, battery voltage indicator.
| Model | CDD1016 | CDD1025 | CDD1029 | CDD1031 | CDD1033 | |||
| CDD1216 | CDD1225 | CDD1229 | CDD1231 | CDD1233 | ||||
| Power type | Battery powered | |||||||
| Driving style | Pedestrian | |||||||
| Load capacity | Q | kg | 1000/1200 | |||||
| Load center | C | mm | 600 | |||||
| Overall length | L1 | mm | 1815 | |||||
| Overall width | W | mm | 800 | |||||
| Min. overall height | H1 | mm | 2125 | 1800 | 2025 | 2125 | 2225 | |
| Fork dimension L×b×m | mm | 1150×160×56 | ||||||
| Outside width of forks | D | mm | 540 | |||||
| Ground clearance | x | mm | 29 | |||||
| Base distance | L0 | mm | 1250 | |||||
| Wheel material | PU | |||||||
| Driving wheel size | mm | φ250×80 | ||||||
| Front wheel size | mm | φ78×70 | ||||||
| Balance wheel size | mm | φ125×75 | ||||||
| Min. steering radius | Wa | mm | 1460 | |||||
| Min. width of aisle | mm | ≥2150 | ||||||
| Max. lift height | H | mm | 1600 | 2450 | 2900 | 3100 | 3300 | |
| Max. overall height | H2 | mm | 2172 | 3022 | 3472 | 3672 | 3872 | |
| Min. fork height | H3 | mm | 90 | |||||
| Brake type | Electromagnetic | |||||||
| Power of driving motor | Kw | 0.7 | ||||||
| Power of lift motor | Kw | 2.2 | ||||||
| Battery capacity/voltage | Ah/V | 95/24 | ||||||
| Weight of battery | kg | 50 | ||||||
| Net weight(without battery) | kg | 545 | 585 | 605 | 635 | 645 | ||
