| Place of Origin: | China |
|---|---|
| Brand Name: | Sinolift |
| Certification: | CE |
| Model Number: | TB |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Sandard Export Package |
| Delivery Time: | 15 days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 5000 sets/mouth |

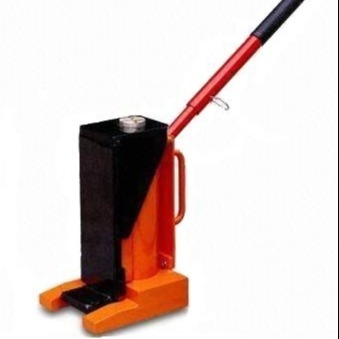

| Product Name: | TB Hydraulic Machine Jack Capacity 7.5-15 Ton | Model: | TB100 TB200 |
|---|---|---|---|
| Lifting Capacity On Top: | 7.5-15 Ton | Lifting Capacity On Toe: | 6 Ton-12 Ton |
| Lifting Stroke: | 160mm | Lifting Range Of Top: | 325-425mm |
| Min.Loading Height Using Lifting Toe: | 40mm | Lifting Range Of Toe: | 160mm |
| Min.Loading Height: | 35mm | Net Weight: | 25Kg |
| Warranty: | 1 Year |
Feature:Machinery Jack
1.With double supporting lever for wider application
2.Heavy duty designed and compact structure
3.Conform to CE safety standard
Specification:
| Model | TB100 | TB200 | |
| Lifting Capacity on Top | kg | 7500 | 15000 |
| Lifting Capacity on Toe | kg | 6000 | 12000 |
| Lifting stroke | mm | 160 | 140 |
| Lifting Range of Top | mm | 320-560 | 325-545 |
| Min.Loading Height Using Lifting Toe | mm | 35 | 40 |
| Lifting Range of Toe | mm | 160 | / |
| Min.Loading Height Using Lifting Toe at Max.Adjustment | mm | 35-195 | 40-260 |
| Net Weight | kg | 25 | 69 |
