| Place of Origin: | China |
|---|---|
| Brand Name: | Sinolift |
| Certification: | CE |
| Model Number: | JT |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Sandard Export Package |
| Delivery Time: | 15 days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union |
| Supply Ability: | 5000 sets/mouth |

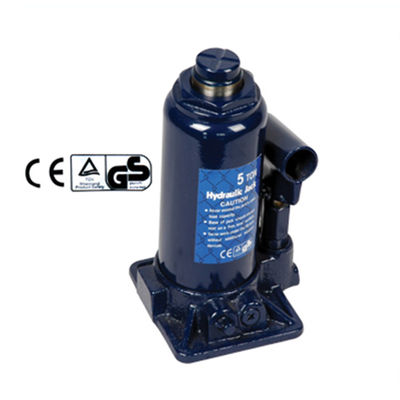

| Product Name: | JT03 Bottle Jack Loading Capacity 2 Ton -5 Ton | Min. Height: | 158mm |
|---|---|---|---|
| Lifting Height: | 180mm | Adjust Height: | 80mm |
| Max. Height: | 420mm | Size: | 305x295x240mm |
| Net Weight: | 8.3Kg | Certification: | CE,ISO9001 |
| Warranty: | 1 Year | After Service: | On-line Service,Spare Parts |
Feature:
Versatile jacks can be used vertically (not upside down) or at any angle to no more than 5 degree from vertical position.
Machined and polished cylinder walls ensure straight lifts preventing uneven wear.
Heat treated adjustable extension screw with cleaned lift saddle prevents slippage.
Patented bypass mechanism protects hydraulic cylinder from overpumped durable baked blue enamel finish.
Specification:
| Model | Lifting Capacity | Min. height | Lifting Height | Adjust Height | Max. Height | Net Weight | Gross Weight | Measurement | Quantiy/Case | Quantiy/1x20" |
| ton | mm | mm | mm | mm | kg | kg | cm | pcs | pcs | |
| JT0203 | 2 | 158 | 90 | 60 | 308 | 2.3 | 25 | 52x25.5x19 | 10 | 6250 |
| JT0303 | 3 | 195 | 125 | 60 | 380 | 3.3 | 28 | 46x26.5x22.5 | 8 | 4600 |
| JT0503 | 5 | 197 | 125 | 80 | 402 | 4.4 | 29 | 37x27.5x22.5 | 6 | 3500 |
| JT0803 | 8 | 205 | 125 | 80 | 410 | 5.4 | 24 | 29.5x27.5x22.5 | 4 | 2430 |
| JT1003 | 10 | 205 | 125 | 80 | 410 | 6 | 26 | 30.5x29.5x24 | 4 | 2210 |
| JT1203 | 12 | 215 | 125 | 80 | 420 | 7.2 | 16 | 30.5x16.5x24 | 2 | 1800 |
| JT1503 | 15 | 225 | 140 | 80 | 445 | 8.3 | 19 | 31.5x17x24.5 | 2 | 1460 |
| JT2003 | 20 | 244 | 145 | 80 | 469 | 11.5 | 24 | 34.5x19.5x27 | 2 | 1400 |
| JT3003 | 30 | 285 | 180 | / | 465 | 14.6 | 31 | 37.5x19x31 | 2 | 970 |
| JT5003 | 50 | 300 | 180 | / | 480 | 33 | 34 | 24x22x32 | 1 | 480 |
