| Place of Origin: | China |
|---|---|
| Brand Name: | Sinolift |
| Certification: | CE |
| Model Number: | SC |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Sandard Export Package |
| Delivery Time: | 15 days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, |
| Supply Ability: | 5000 sets/mouth |
| Product Name: | SC500A SC1000A SC2000A Shop Crane Loading Capacity 350-2000Kg | Model: | SC500A SC1000A SC2000A |
|---|---|---|---|
| Load Capacity: | 350-2000Kg | SC500A Size: | 1354mm |
| SC1000A Size: | 1597mm | SC2000A Size: | 1626mm |
| Certification: | CE,ISO9001 | Warranty: | 1 Year |
| After Service: | On-line Service,Spare Parts | Net Weight: | 75Kg/115Kg/165Kg |
Feature:

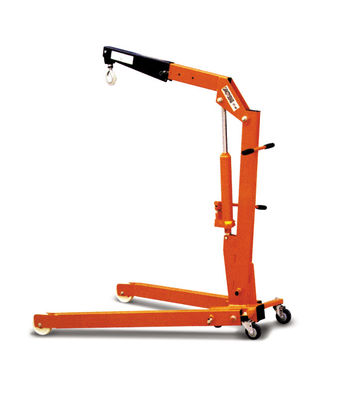

Foldable Shop Crane SC•A series
▲ Unique technology of quick lifting by double action pump.
▲ Larger capacity than normal shop cranes at 3 positions.
▲ Chrome plated lifting piston and pump piston.
▲ Relief valve to prevent overload.
▲ 360º swivel operating handle.
▲ Forged heavy duty swivel hook.
▲ 125% overload testing before delivery.
▲ Conforms to CE safety standard.
Specification:
| Model | SC500A | SC1000A | SC2000A | ||||||||
| Capacity P1/P2/P3 | kg | 500/425/350 | 1000/800/700 | 2000/1700/1500 | |||||||
| N.W | kg | 75 | 115 | 165 | |||||||
| Package Size | cm | 156×50×65 | 174×50×65 | 196×63×68 | |||||||
| Size | A | B | C | D | E | F | G | H | I | W1 | W2 |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | |
| SC500A | 1354 | 165 | 1582 | 897 | 102 | 2080 | 1920 | 130 | 330 | 470 | 960 |
| SC1000A | 1597 | 90 | 1749 | 1231 | 150 | 2450 | 2320 | － | 280 | 460 | 1100 |
| SC2000A | 1626 | 208 | 1911 | 1293 | 150 | 2490 | 2330 | － | 250 | 590 | 1170 |
