| Place of Origin: | China |
|---|---|
| Brand Name: | Sinolift |
| Certification: | CE |
| Model Number: | YLB |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Sandard Export Package |
| Delivery Time: | 15 days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 5000 sets/mouth |
| Product Name: | YLB01 Dip-angle Telescopic Fork Mounted Jibs Loading Capacity 600Kg-3000Kg | Model: | YLB01 |
|---|---|---|---|
| Loading Capacity: | 600-3000Kg | Overall Size(L×W×H): | 2410×540×525mm |
| Fork Pocket: | 180X74mm | Fork Opening: | 166mm |
| Certification: | CE,ISO9001 | Warranty: | 1 Year |
| After Service: | On-line Service,Spare Parts |

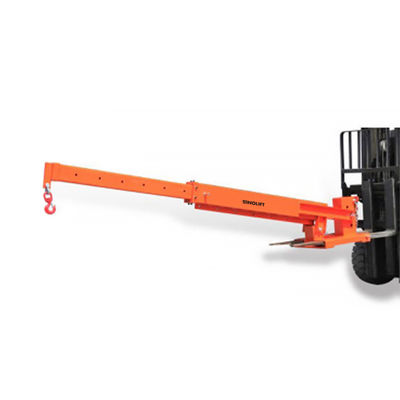

Dip-angle Telescopic Fork Mounted Jibs
▲Convert a forklift truck into a mobile crane to reach and transport long and awkward loads from inaccessible location;
▲Vertify load center of forklift truck;
▲With two locking screw and safety heavy chains to ensure fork not to shift or slip;
▲Applicable fork sectional size≤180×60mm(W×T);
▲Supplied complete with one safety swivel hook with bow shackle＆one rigid hook.
| Model YLB01 | A | B | C | D | E | F | G | H | I | J | K | L | M | N | ||
| 0° | Length Positions | mm | 760 | 990 | 1220 | 1450 | 1680 | 1910 | 2140 | 2375 | 2605 | 2835 | 3065 | 3295 | 3525 | 3755 |
| Capacity | kg | 3000 | 2303 | 1869 | 1572 | 1357 | 1194 | 1065 | 960 | 875 | 804 | 744 | 692 | 647 | 607 | |
| 13° | Length Positions | mm | 740 | 965 | 1190 | 1415 | 1640 | 1865 | 2090 | 2319 | 2544 | 2769 | 2994 | 3219 | 3444 | 3669 |
| Capacity | kg | 3081 | 2363 | 1916 | 1611 | 1390 | 1223 | 1091 | 983 | 896 | 823 | 762 | 708 | 662 | 621 | |
| 26° | Length Positions | mm | 710 | 919 | 1127 | 1336 | 1544 | 1752 | 1961 | 2174 | 2382 | 2591 | 2799 | 3007 | 3216 | 3424 |
| Capacity | kg | 3211 | 2481 | 2023 | 1707 | 1477 | 1301 | 1163 | 1049 | 957 | 880 | 815 | 758 | 709 | 666 | |
| Fork opening | mm | 166 | ||||||||||||||
| Fork pocket | mm | 180×74 | ||||||||||||||
| Overall size(L×W×H) | mm | 2410×540×525 | ||||||||||||||
| Net Weight | kg | 240 | ||||||||||||||
