DG10 DG20 DG30 DG40 DG50 Forklift Drum Grab Loading Capacity 300Kg-900kg

Basic Information
Place of Origin: China
Brand Name: sinolift
Certification: CE
Model Number: DG
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Sandard Export Package
Delivery Time: 15 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 5000 sets/mouth
Product Name: Forklift Drum Grab Load Capacity: 450kg
Drum Size: 33/55 Gallon Distance Of Forks Pocket (inner): 520-660mm
Forks Pocket Size: 140X55/178X55/138X30mm Overall Size: 1094X710X122mm
Certification: CE,ISO9001 Net Weight: 20-90Kg
Warranty: 1 Year After Service: On-line Service,Spare Parts

Feature:



1. It uses a heavy duty steel Girdle with a quick acting over-centre clamp to secure the drum.

2. A foot operated hydraulic pump is used for lifting and a heavy duty gearbox for 320 degrees of controlled tipping of the drum.

3. The standard machine is designed to handle 205 Litre Steel drums that have two equi-spaced chimes over its length.

4. Anti-falling electric design provides safe and labor-saving operation.



Specification:

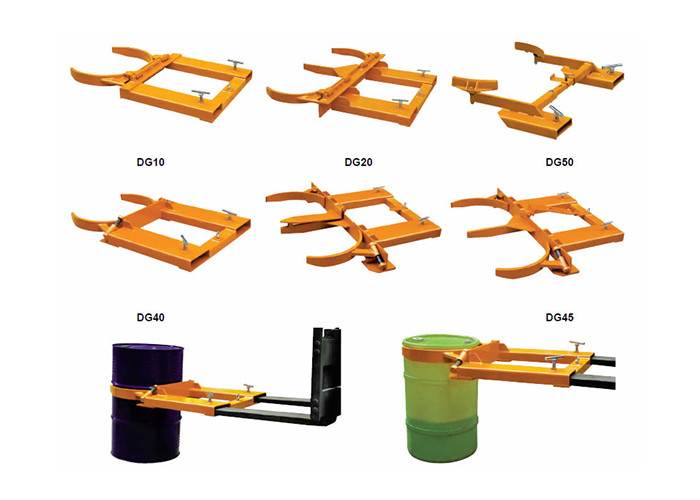

Model   DG10 DG20 DG30 DG40 DG45 DG50
Capacity kg 450 450x2 450 450 450x2 300
Drum size   55 gallon 55*2 gallon 33/55 gallon 33/55 gallon 30 or 55*2 gallon 33/55 gallon
Distance of forks pocket (inner) mm 560 660 560 520 650 616/521
Forks pocket size (LxW) mm 140×55 178×55 140×55 178×55 178×55 138×30
Overall size mm 1094x710x122 1170x1096x192 1082x710x141 1080x710x141 1300x1082x141 766x605x152
Net weight kg 55 90 52 57 88 20
