| Place of Origin: | China |
|---|---|
| Brand Name: | Sinolift |
| Certification: | CE |
| Model Number: | Electric Roll Material Lifting & Handling Truck |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Sandard Export Package |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, D/P, T/T, Western Union |
| Supply Ability: | 1000 sets/mouth |
| Product Name: | Electric Roll Material Lifting & Handling Truck For Battery Electrode Roll Transportation | Warranty: | 1 Year |
|---|---|---|---|
| After Service: | On-line Service,free Spart Parts | Roll Inner Diameter: | 203.7 Mm |
| Roll Length: | 600 Mm/370 Mm | Lifting Height: | 270-1850 Mm |
| Driving System: | Electric Traveling | Travel Speed: | 0-5 Km/h, Variable Speed Control |
| Battery Type: | Lithium Battery |
Product Description

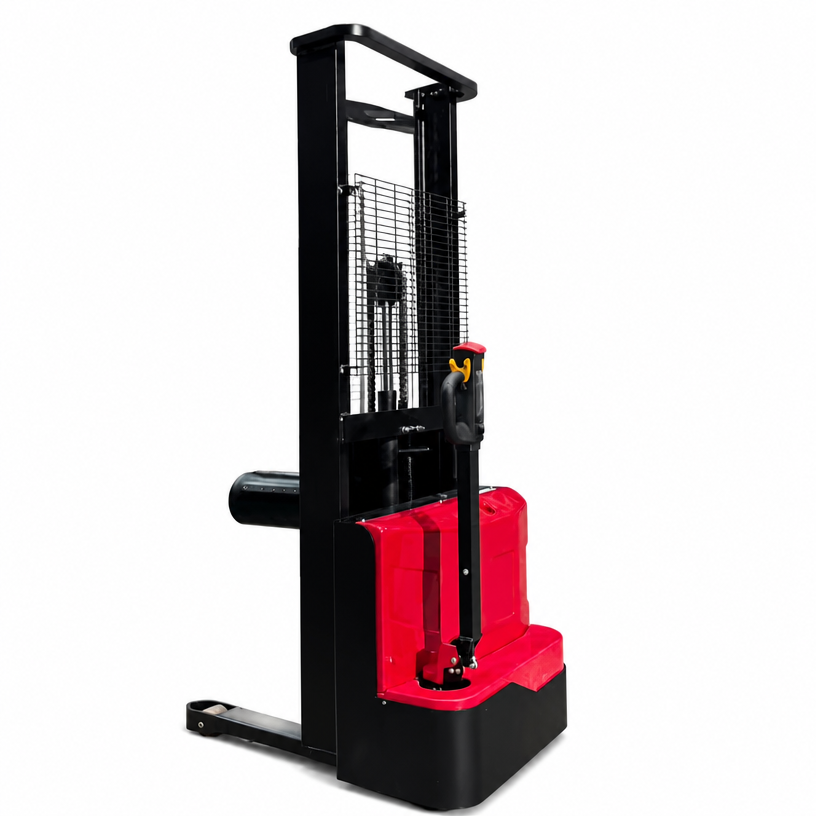

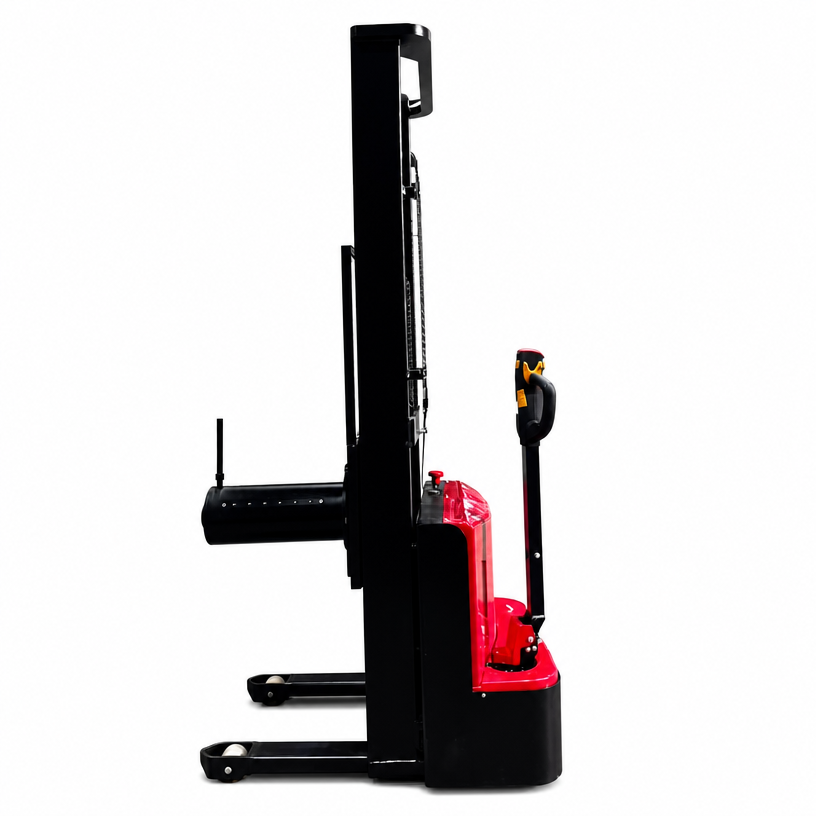

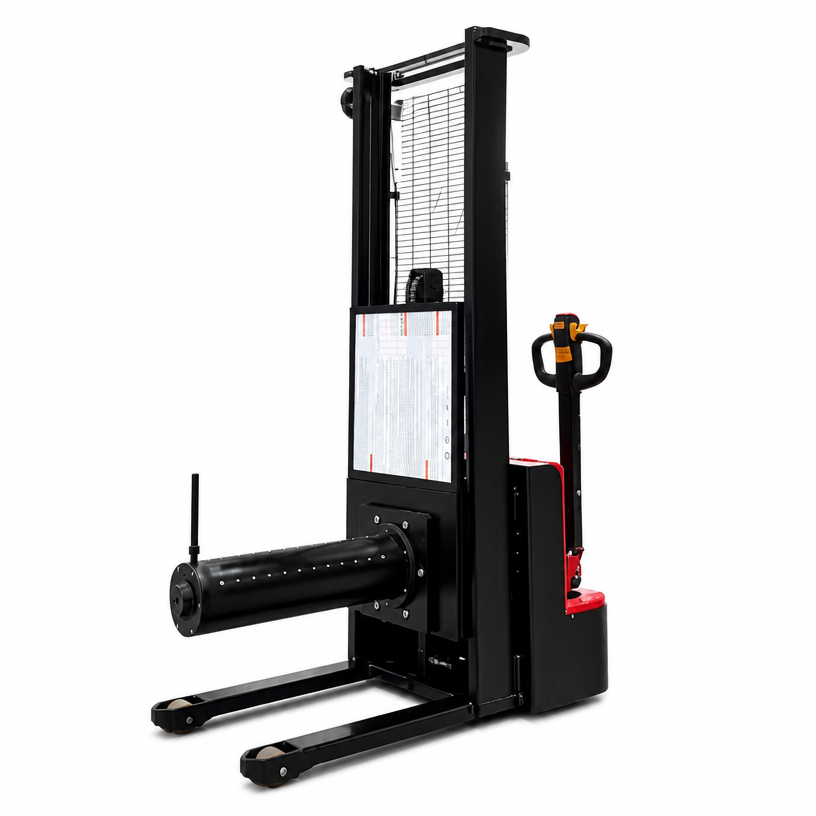

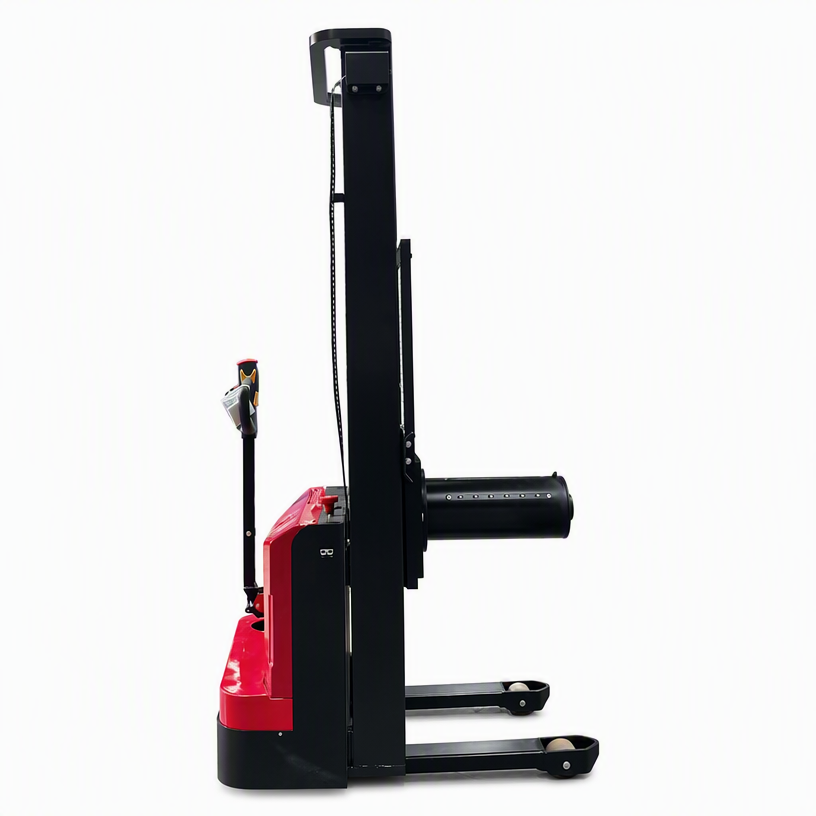

The Electric Roll Material Lifting & Handling Truck is a high-quality electric handling solution designed for safe and efficient transportation of cylindrical roll materials. It is specially suitable for battery electrode roll core handling in lithium battery manufacturing processes, as well as paper rolls, film rolls, and textile rolls. With electric driving, electric lifting, and stable roll positioning features, the truck helps improve material handling efficiency while reducing manual handling risks.
Product Features
1. Fully Electric Operation
• Electric traveling and electric lifting system for convenient operation.
• Adjustable traveling speed from 0-5 km/h with high and low speed switching.
2. Professional Roll Material Handling Design
• Designed for cylindrical roll materials with diameter ≥900 mm.
• Suitable for battery electrode rolls, paper rolls, film rolls, and textile rolls.
• Roll core positioning shaft design ensures stable handling.
3. Safe and Stable Transportation
• Equipped with roll positioning device to prevent movement during transportation.
• PU wheels provide smooth movement and reduce floor damage.
• Anti-crushing and anti-impact protection structures improve safety.
4. Intelligent Electrical Control System
• Lithium battery powered with battery level display.
• Key switch and emergency stop button for safe operation.
• Built-in charger for convenient charging.
Applications
• Lithium battery manufacturing: Battery electrode roll core transportation between coating, rolling, slitting, and production processes.
• Printing industry: Paper roll handling and production line transfer.
• Packaging industry: Film roll and packaging material handling.
• Textile industry: Fabric roll transportation and warehouse handling.
| Parameter | 8-inch Single Arm Roll Truck (600mm Roll Length) |
8-inch Single Arm Roll Truck (370mm Roll Length) |
| Rated Capacity | ≥800 kg | ≥400 kg |
| Suitable Roll Diameter | ≥900 mm | ≥900 mm |
| Roll Length | 600 mm | 370 mm |
| Roll Inner Diameter | 203.7 mm | 203.7 mm |
| Lifting Height | 270-1850 mm | 270-1850 mm |
| Roll Core Positioning Shaft | Ø100 mm, Depth 30 mm | Ø100 mm, Depth 30 mm |
| Driving System | Electric traveling | Electric traveling |
| Travel Speed | 0-5 km/h, variable speed control | 0-5 km/h, variable speed control |
| Wheel Material | PU | PU |
| Battery Type | Lithium battery | Lithium battery |
| Battery Voltage | 24V | 24V |
| Battery Capacity | ≥200Ah (modified to 105Ah) | ≥200Ah (modified to 105Ah) |
| Charger | 220V / 35A | 220V / 35A |
