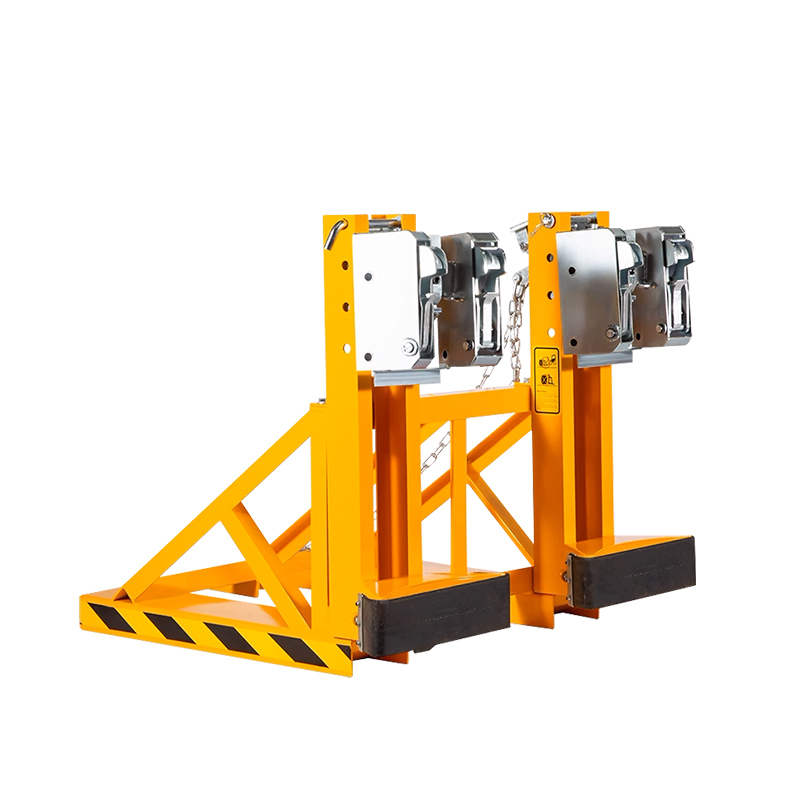

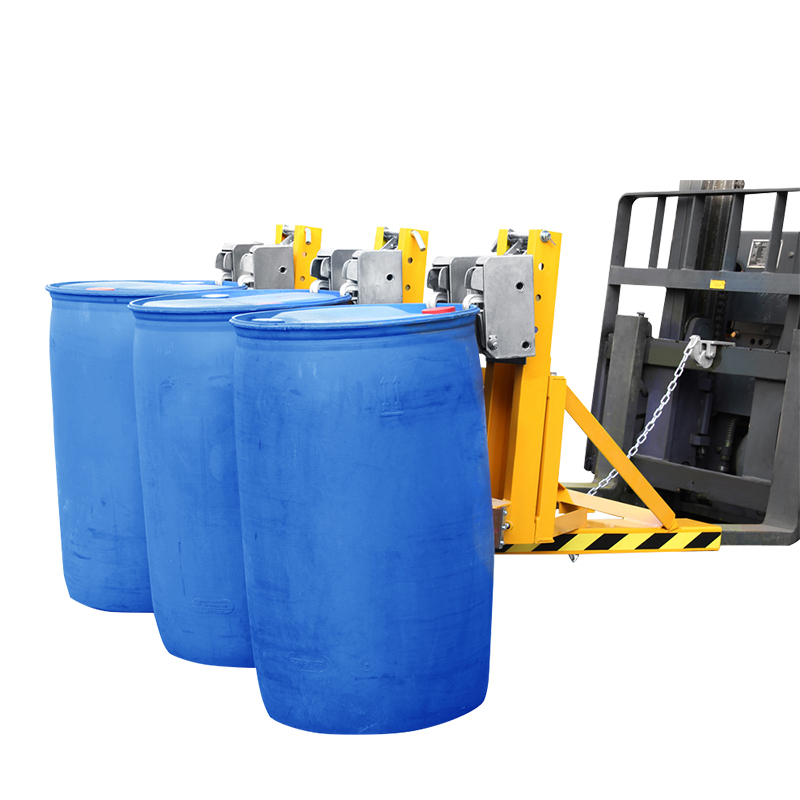

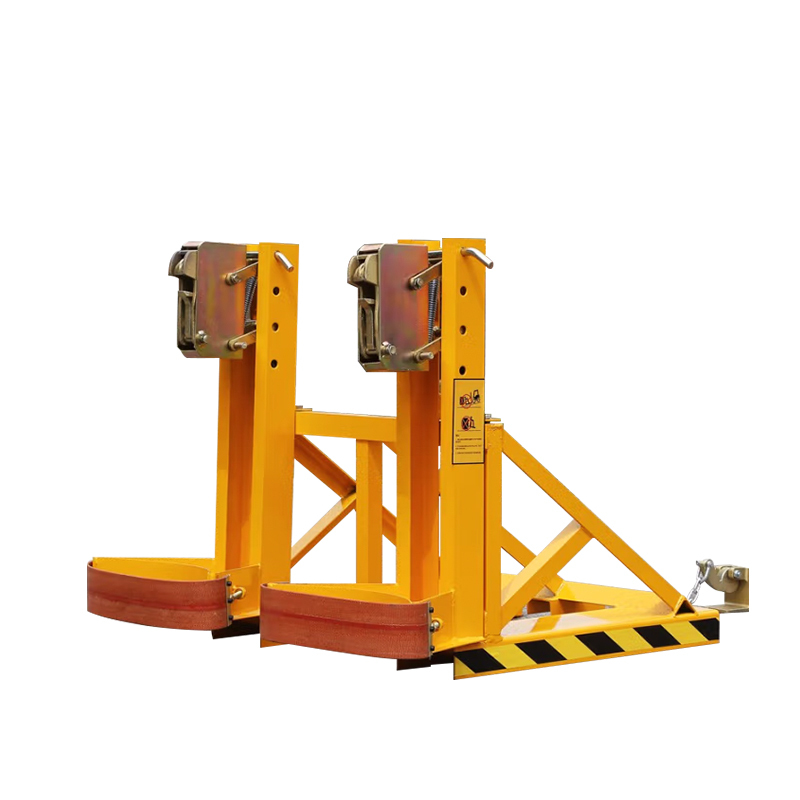

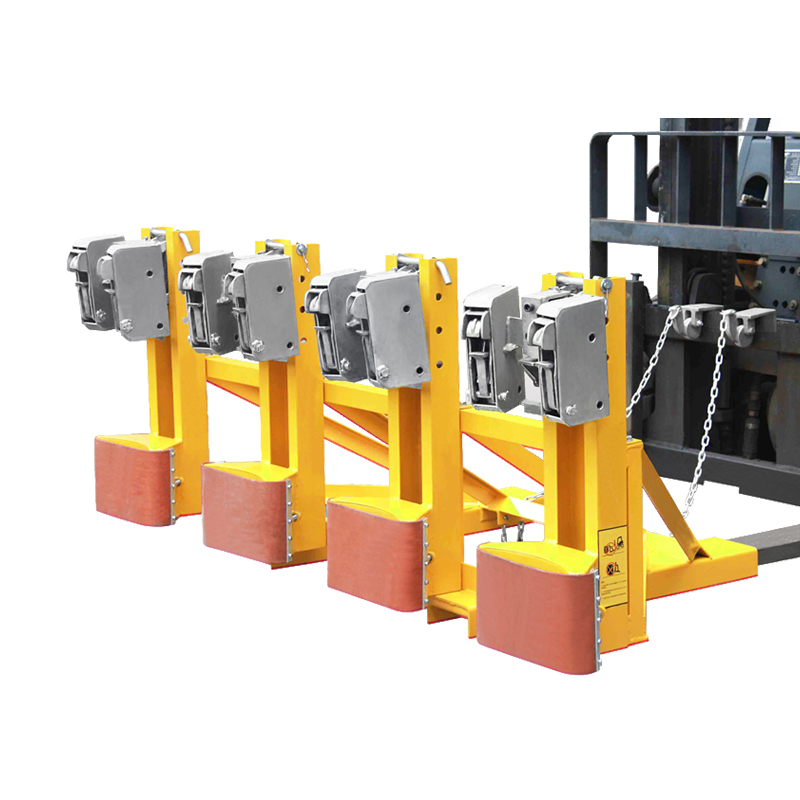

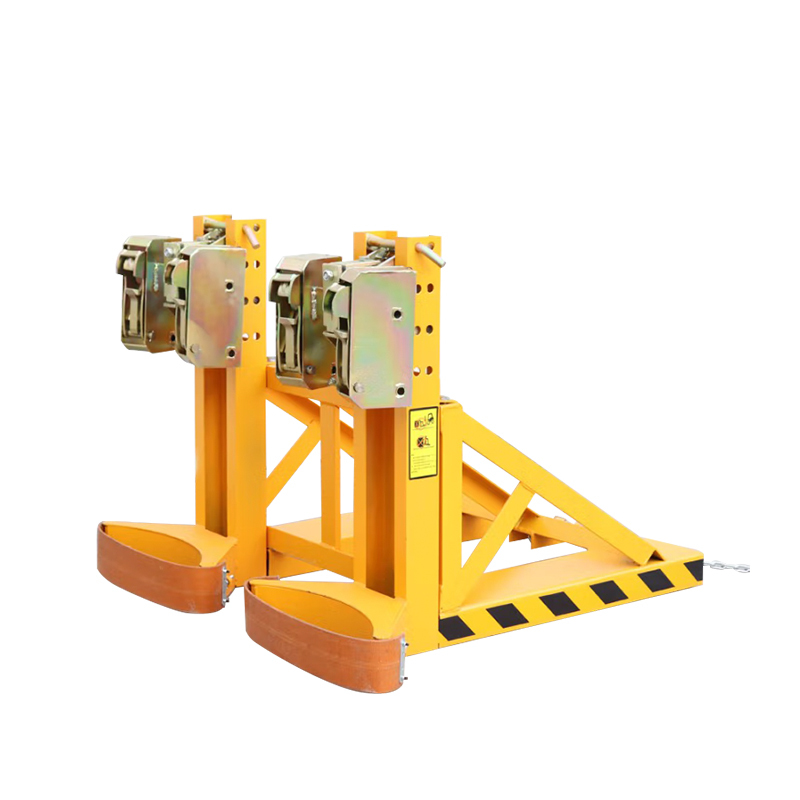

DG500 / DG1000 / DG1500 / DG2000 Heavy-Duty Forklift Mounted Drum Grab

DG500 / DG1000 / DG1500 / DG2000 Heavy-Duty Forklift Mounted Drum Grab
DG500 / DG1000 / DG1500 / DG2000 Heavy-Duty Forklift Mounted Drum Grab
DG500 / DG1000 / DG1500 / DG2000 Heavy-Duty Forklift Mounted Drum Grab DG500 / DG1000 / DG1500 / DG2000 Heavy-Duty Forklift Mounted Drum Grab DG500 / DG1000 / DG1500 / DG2000 Heavy-Duty Forklift Mounted Drum Grab DG500 / DG1000 / DG1500 / DG2000 Heavy-Duty Forklift Mounted Drum Grab
Basic Information
Place of Origin: CHINA
Brand Name: SINOLIFT
Certification: CE
Model Number: DG500 / DG1000 / DG1500 / DG2000
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Sandard Export Package
Delivery Time: 15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000 sets/mouth
Contact Now
Product Name: DG500 / DG1000 / DG1500 / DG2000 Heavy-Duty Forklift Mounted Drum Grab Model: DG500 / DG1000 / DG1500 / DG2000
Rated Load: 500Kg Dimensions (L×W×H): 910×730×850 Mm
Load Center Distance: 1150 Mm Net Weight: 52Kg

Product Description
A high-capacity forklift drum grab designed for safe and efficient handling of 1 to 4 steel or plastic drums at once. Features an automatic alloy clamp with a durable low-alloy steel gripping head, gravity-activated locking, and reinforced straps for maximum safety and stability during transport.

Highlight

1. Handles up to 4 drums simultaneously

2. Auto-locking alloy clamp ensures secure grip

3. Suitable for steel and plastic drums

4. Heavy-duty structural steel gripping head

5. Self-locking beak latches prevent slippage

6. Reinforced slots fit forklifts and loaders

7. Gravity-enhanced clamping for safer operation

8. Wide straps reduce abrasion and improve stability

Technical Specifications

Technical Specifications
Parameter Unit DG500A DG1000A DG1500A DG2000A
Rated Load kg 500 500×2 500×3 500×4
Net Weight kg 52 71 114 140
Dimensions (L×W×H) mm 910×730×850 910×760×870 1570×1080×850 2190×1080×850
Load Center Distance mm 1150 1150 1150 1150
Clamp Height - Min mm 525 525 525 525
Clamp Height - Max mm 750 750 750 750
Clamp Height - Mid Range mm 675-600 675-600 675-600 675-600
Forkleg Inner (L×W) mm 150×55 150×55 150×55 150×55
Forkleg Inner Width mm 430 430 670 670
Forkleg Outer Width mm 750 750 990 990
Forkleg Length mm 750 750 900 900



Technical Specifications
Model   DG500B DG1000B DG1500B DG2000B
Rated Load kg 500 500×2 500×3 500×4
Net Weight kg 60 86 146 170
Dimensions (L×W×H) mm 910×760×850 910×760×870 1570×110×850* 2190×110×850*
Load Center Distance mm 1150 1150 1150 1150
Clamp Height - Min mm 465 465 465 465
Clamp Height - Max mm 690 690 690 690
Clamp Height - Mid Range mm 615-540 615-540 615-540 615-540
Forkleg Inner (L×W) mm 150×55 150×55 150×55 150×55
Forkleg Inner Width mm 430 430 670 670
Forkleg Outer Width mm 750 750 990 990
Forkleg Length mm 750 750 900 900



Technical Specifications Unit
Model   DG500C DG1000C DG1500C DG2000C
Load Capacity kg 500 500×2 (1000) 500×3 (1500) 500×4 (2000)
Net Weight kg 50 71 106 130
Dimensions (L×W×H) mm 910×760×850 910×760×850 1570×1100×850 2090×1100×850
Load Center Distance mm 1150 1150 1150 1150
Clamping Height Range
Minimum mm 525 525 525 525
Maximum mm 750 750 750 750
Adjustable Mid Range mm 675 600 675 600 675 600 675 600
Forklift Compatibility
Forkleg Inner (L×W) mm 150×55 150×55 150×55 150×55
Forkleg Inner Width mm 450 450 680 680
Forkleg Outer Width mm 750 750 980 980
Forkleg Length mm 750 750 900 900



Technical Specifications Unit
Model   DG500D DG1000D DG1500D DG2000D
Load Capacity kg 500 500×2 (1000) 500×3 (1500) 500×4 (2000)
Net Weight kg 56 80 121 158
Dimensions (L×W×H) mm 910×760×850 910×760×850 1500×1100×850 2090×1100×850
Load Center Distance mm 1150 1150 1150 1150
Clamping Height Range
Minimum mm 465 465 465 465
Maximum mm 690 690 690 690
Adjustable Mid Range mm 615 540 675 600* 615 540 615 540
Forklift Compatibility
Forkleg Inner (L×W) mm 150×55 150×55 150×55 150×55
Forkleg Inner Width mm 450 450 680 680
Forkleg Outer Width mm 750 750 980 980
Forkleg Length mm 750 750 900 900



Technical Specifications Unit
Model   DG500E DG1000E DG1500E DG2000E
Load Capacity kg 500 500×2 (1000) 500×3 (1500) 500×4 (2000)
Net Weight kg 62.5 91 150.3 177
Dimensions (L×W×H) mm 910×750×850 910×950×850 1550×1100×850 2130×1080×850
Load Center Distance mm 1150 1150 1150 1150
Clamping Height Range
Minimum mm 465 465 465 465
Maximum mm 690 690 690 690
Adjustable Mid Range mm 675 600 675 600 615 540 675 600
Forklift Compatibility
Forkleg Inner (L×W) mm 150×55 150×55 150×55 150×55
Forkleg Inner Width mm 450 450 680 680
Forkleg Outer Width mm 750 750 980 980
Forkleg Length mm 750 750 900 900
