| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SINOLIFT |
| Certification: | CE |
| Model Number: | DG400 DG800 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Sandard Export Package |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 sets/mouth |

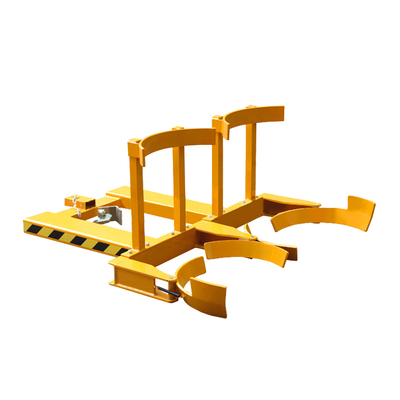

| Product Name: | DG400 DG800 Heavy-Duty Drum Clamp With Dual-Drum Design | Model: | DG400 DG800 |
|---|---|---|---|
| Rated Capacity: | 800Kg | Overall Dimensions: | 1440x1240x590mm |
| Fork Dimension: | 160x70mm | Fork Length: | 755mm |
| Fork Outer Width: | 735mm | Net Weight: | 81.7Kg |
Product Description
Designed for high-capacity drum handling in factories and ports. DG800's dual-drum design doubles efficiency with 800kg capacity, while both models feature oversized fork pockets for quick deployment and reinforced frames for prolonged durability.
Key Features of DG400 & DG800 Heavy-Duty Drum Clamp:

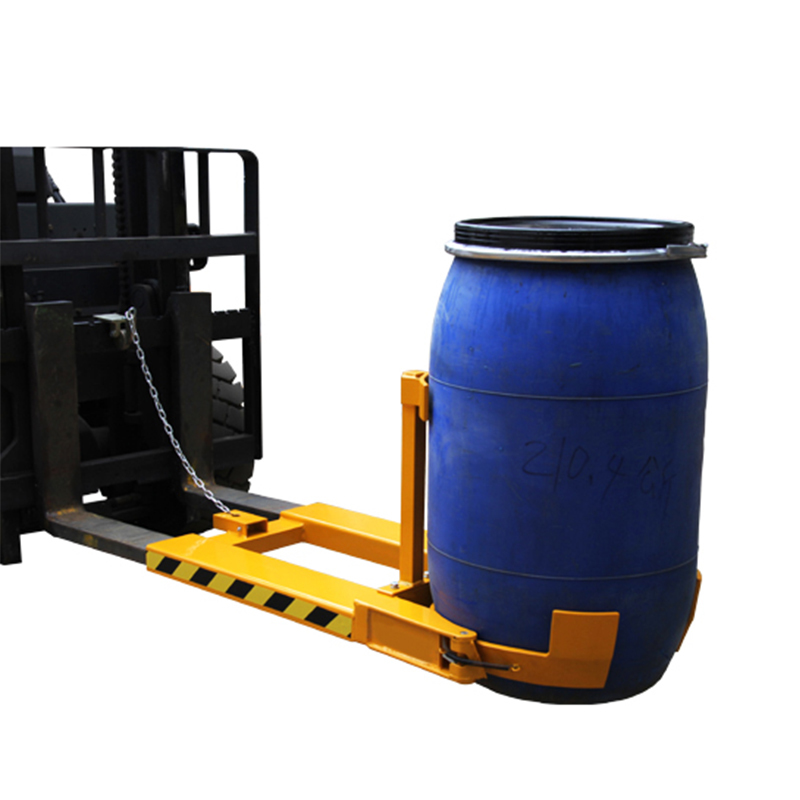

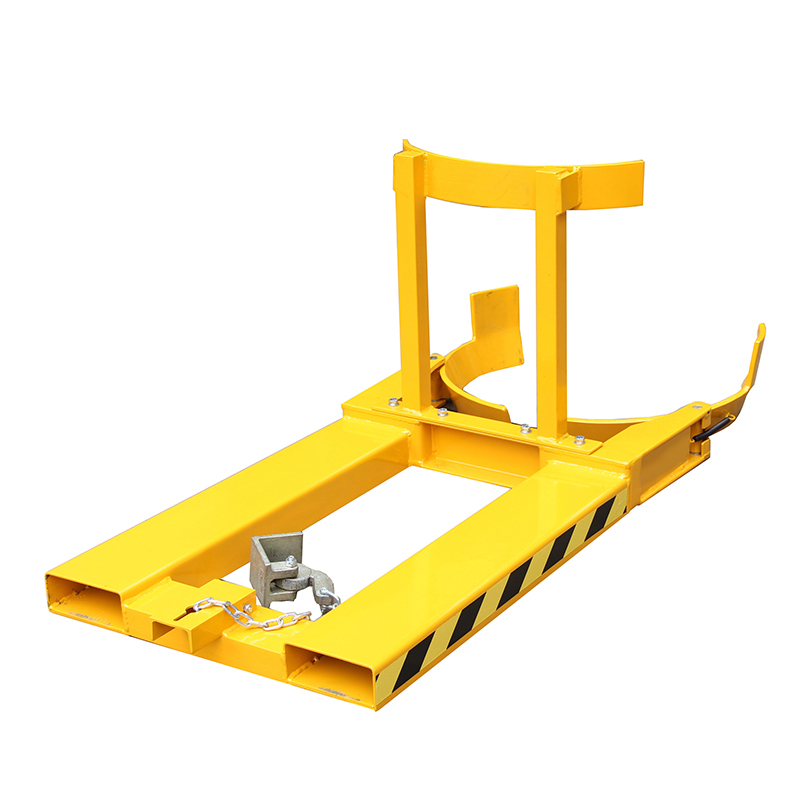

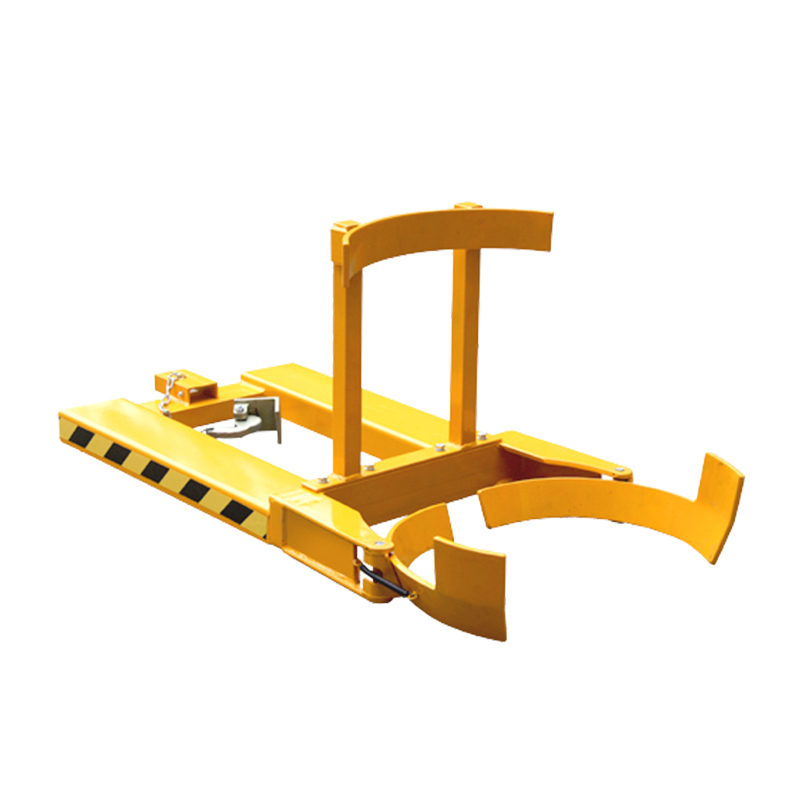

High-Capacity Handling –DG400 (400kg) and DG800 (800kg) models for heavy industrial drum transportation.

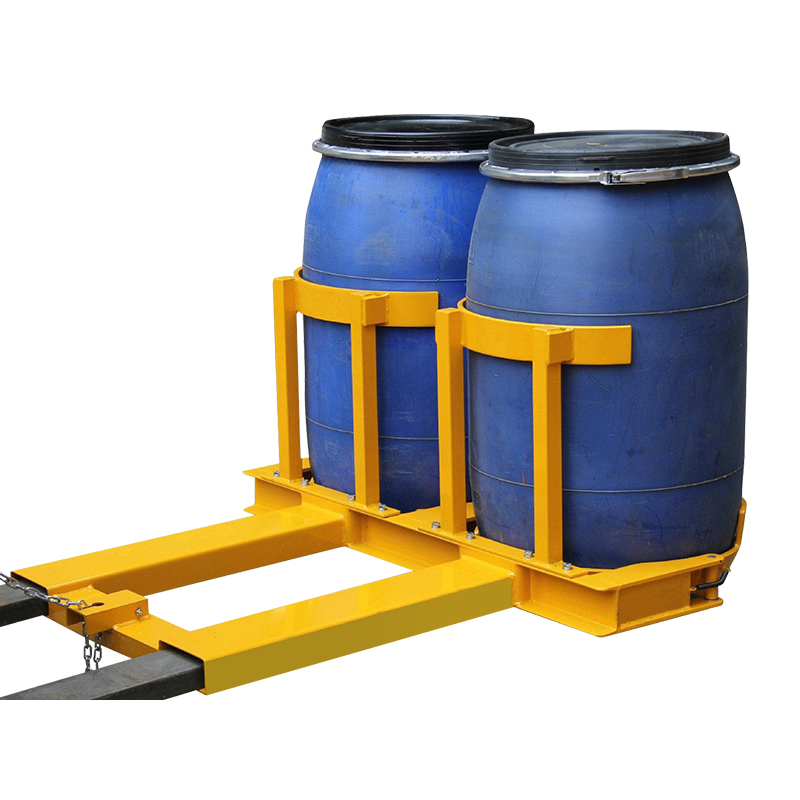

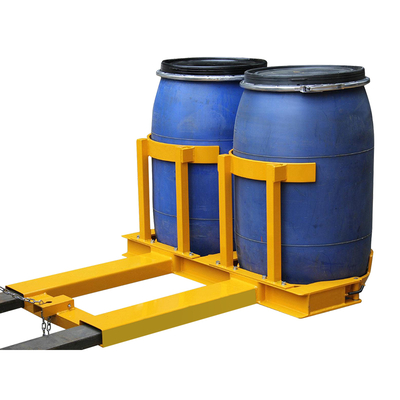

Dual-Drum Design (DG800) –Simultaneously lifts and moves two 55-gallon drums, maximizing efficiency.
Industrial-Grade Construction –Reinforced steel frame built for demanding port/factory environments.
Quick-Deploy Fork Pockets –Oversized sleeves (160×70mm) ensure fast forklift mounting.
Optimized for Large Drums –Compatible with 55-gallon steel/plastic drums (Φ572×900mm).
Product Specifications
| Model | DG400 | DG800 | |
| Type | / | Single Drum | Double Drum |
| Rated Capacity | kg | 400 | 800 |
| Net Weight | kg | 57 | 81.7 |
| Fork Dimension | mm | 160x70 | 160x70 |
| Fork Length | mm | 755 | 755 |
| Overall Dimensions | mm | 1440x640x590 | 1440x1240x590 |
| Fork Outer Width | mm | 640 | 735 |
