| Place of Origin: | China |
|---|---|
| Brand Name: | Sinolift |
| Certification: | CE |
| Model Number: | ELT0809 |
| Minimum Order Quantity: | 15 |
| Price: | Negotiate |
| Delivery Time: | 15days |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 50days |

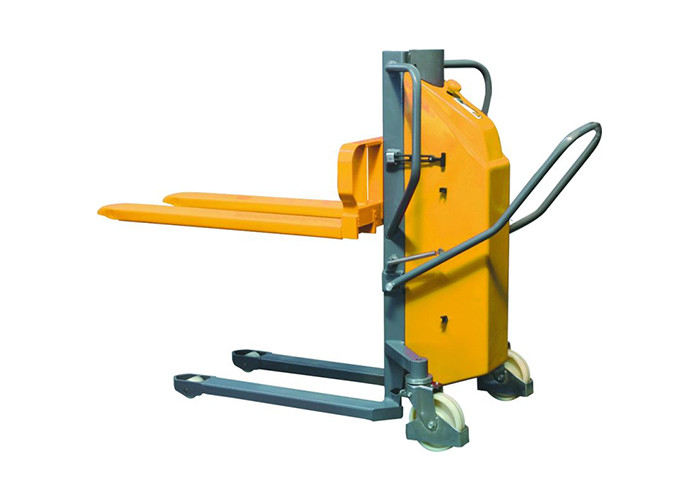

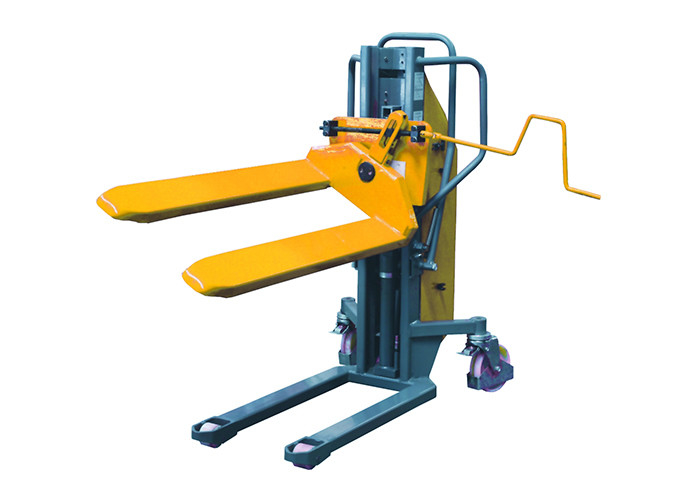

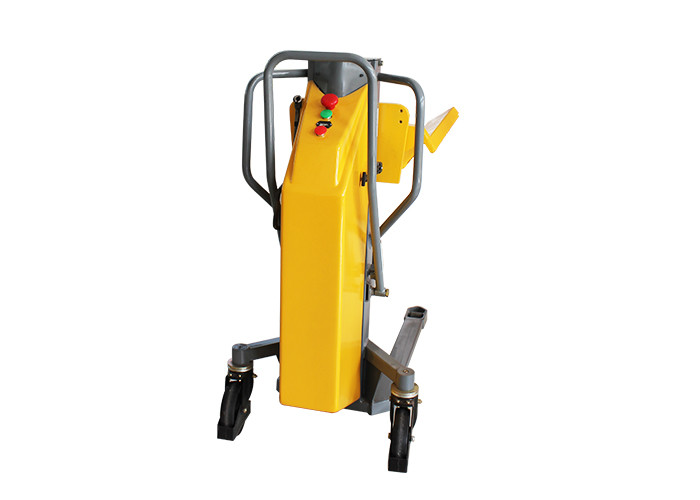

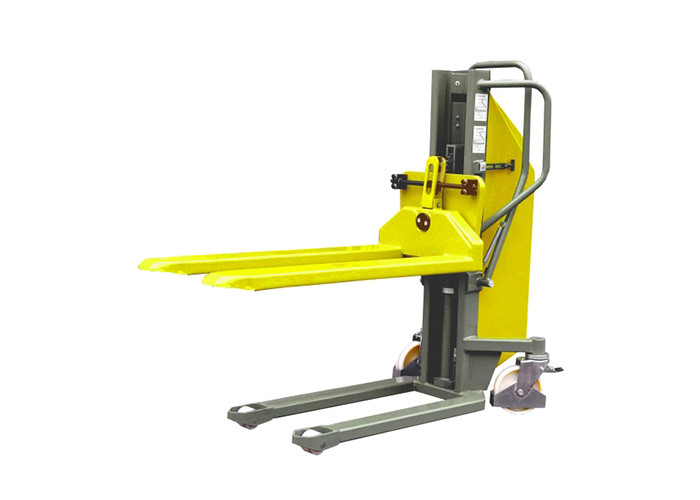

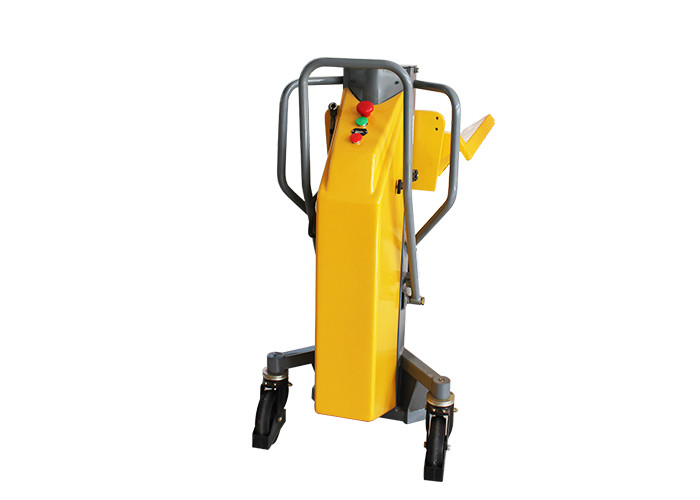

| Product Name: | Semi Electric Mono Mast Stacker Loading Capacity 800Kg | Load Capacity: | 800Kg |
|---|---|---|---|
| Lifting Height: | 900mm | Overall Dimension: | 1690X730X1420mm |
| Forks Width: | 540mm | Min. Height Over The Floor: | 87mm |
| Spacing Between The Forks: | 240mm | Battery: | 2X12V/60Ah |
| Power Pack Unit: | 12V/700W | Net Weight: | 271Kg |
| Warranty: | 1 Year | After Service: | On-line Service,Spare Parts |
| Highlight: | Semi Electric Mono Mast Stacker,800kg Mono Mast Stacker,900mm semi electric pallet stacker |
||
Feature:
1. With handle return gas spring, brake, protection wheel cap, protection net.
2. Compact vehicle design provides exceptional maneuverability in tight areas.
3. Adjustable bended and forged fork.
4. Lifting supporting leg keeps stacker steady when lifting or lowering.
What kind of smart design can be made in simple products, semi electric stacker and manual stacker.
1. Smart mast roller, adjusting eccentric bearing ensure mast verticality, keep mast veridicality from
89.3-89.7 degeree.
2. Smart supporting leg, steel tube is inside of leg square steel, ensure strength of supporting leg.
3. Smart design to reduce the noisy when unloading running by a special screw with spring and tip.
4. Stronger backrest, full welding from front to back of backrest, ensure the strength.
Specification:
| Model | ESU0809 | ELT0809 | |
| with tilting device | |||
| Capacity | kg | 800 | |
| Length | mm | 1690 | |
| Width | mm | 730 | |
| Height | mm | 1420 | |
| Length of the forks | mm | 1140 | |
| Width of the fork | mm | 150 | |
| Min.height over the floor | mm | 87 | |
| Forks width | mm | 540 | |
| Spacing between the forks | mm | 240 | |
| Lifting height | mm | 900 | |
| Bearing surface of the forks | mm | 1140x540 | |
| Forks tilting angle | . | 20 | |
| Lifting speed without load | mm | ≥0.07 | |
| Lifting speed with load | mm | ≥0.05 | |
| Lowering speed with a load | controllable | ||
| Clearance above floor | mm | 30 | |
| Battery | 2x12V/60Ah | ||
| Power Pack Unit | 12V/700W | ||
| Net Weight | kg | 271 | |
