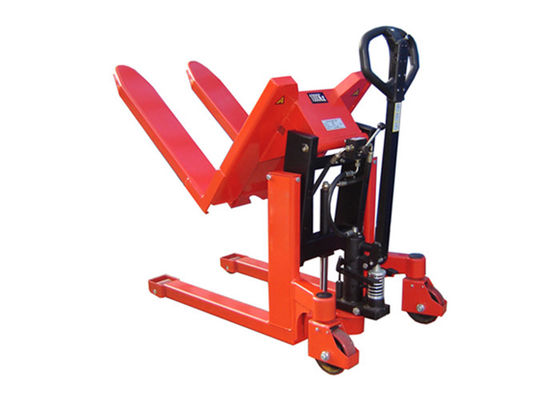

HS-T0809 The Hand Stacker Loading Capacity 800Kg

Basic Information
Place of Origin: China
Brand Name: Sinolift
Certification: CE
Model Number: HS-T0809
Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Sandard Export Package
Delivery Time: 15days
Payment Terms: L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000 sets/mouth
Product Name: HS-T0809 The Hand Stacker Loading Capacity 800Kg Loading Capacity: 800kg
Lifting Height: 900mm Length: 1630mm
Width: 730mm Height: 1230mm
Length Of The Forks: 1140mm Width Of The Fork: 150mm
Min. Height Of The Forks: 87mm Net Weight: 218Kg
Warranty: 1 Year
High Light:

900mm Hand Stacker


800kg Hand Stacker


Powder Coated pallet tilter

The Hand Stacker is ideal for lifting pallets and cages to a comfortable working height.
Capacity of 800kg lifting to a height of 0.9 metres.
The tilt facility is ideal for operators emptying cages of products onto production lines etc, a 400kg load can be
tilted to 40° and a 600kg load at 20°. Fitted with Nylon wheels as standard.
Heavy-duty powder coated frame for durability Fork size of 540mm wide over the forks by
1140mm long. Forks size is 150mm wide x 50mm deep
Model   HS 0809/HS-T0809
Capacity kg 800
Length mm 1630
Width mm 730
Height mm 1230
Length of the forks mm 1140
Width of the fork mm 150
Min. height of the forks above the floor 87
forks width mm 540
Truck weight kg 218
Lifting height mm 900
Bearing surface of the forks mm 1140x540
Tilting angle of the forks ° 20°- 600kg / 40°- 400kg
