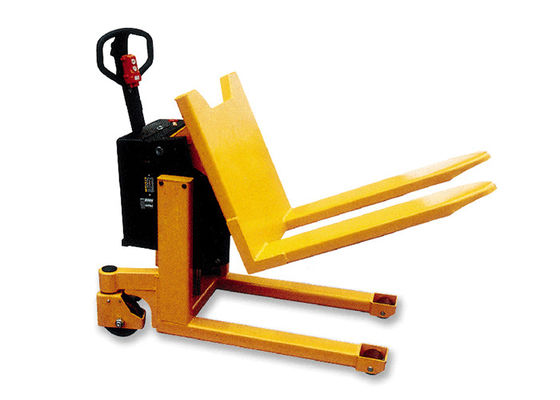

LT10E Pallet Tilting Work Postioner Pallet Tilter Lift Loading Capacity 1000kg

Basic Information
Place of Origin: China
Brand Name: Sinolift
Certification: CE
Model Number: LT10E
Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Sandard Export Package
Delivery Time: 15days
Payment Terms: L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000 sets/mouth
Product Name: LT10E Pallet Tilting Work Postioner Pallet Tilter Lift Loading Capacity 1000kg Capacity: 1000kg
Type: Electric Lifting Height: 285mm
Min.Fork Height: 85mm Fork Length: 800mm
Handle Height: 1138mm Overall Fork Width: 560mm
Load Centre Min./Max.: 200/420mm Power Unit: 0.8KW/12V
Net Weight: 185Kg
High Light:

1000kg Pallet Tilter Lift


285mm Pallet Tilter Lift


EN1757-1 Pallet Tilter

Manual and Electric Version
▲ Designed to give the user an ergonomically correct position to reach
loads easily without the necessity of bending down or stretching up.
▲ Handle can be turned and locked in position away from the work area.
▲ Applies to both sitting and standing positions.
▲ Forks can be tilted up to 90°.
▲ Both are supplied as standard with parking brake and foot protectors.
▲ Conforms to EN1757-1 and EN1175.


Model   LT10E
Type   Electric
Capacity (kg) 1000
Lifting Height, Vertical h (mm) 285
Min.Fork Height h1 (mm) 85
Fork Length l (mm) 800
Handle Height L1 (mm) 1138
Overall Fork Width b (mm) 560
Width Between Forks b1 (mm) 234
Fork Tip Length From Roller L2 (mm) 135
Overall Width B (mm) 638
Overall Length L (mm) 1410
Overall Height, Raised H (mm) 950
Overall Height, Lowered H (mm) 750
Load Centre Min./Max. C1 (mm) 200/400
Load Centre Min./Max. C2 (mm) 200/420
Power Unit (KW/V) 0.8/12
Net Weight (kg) 185
