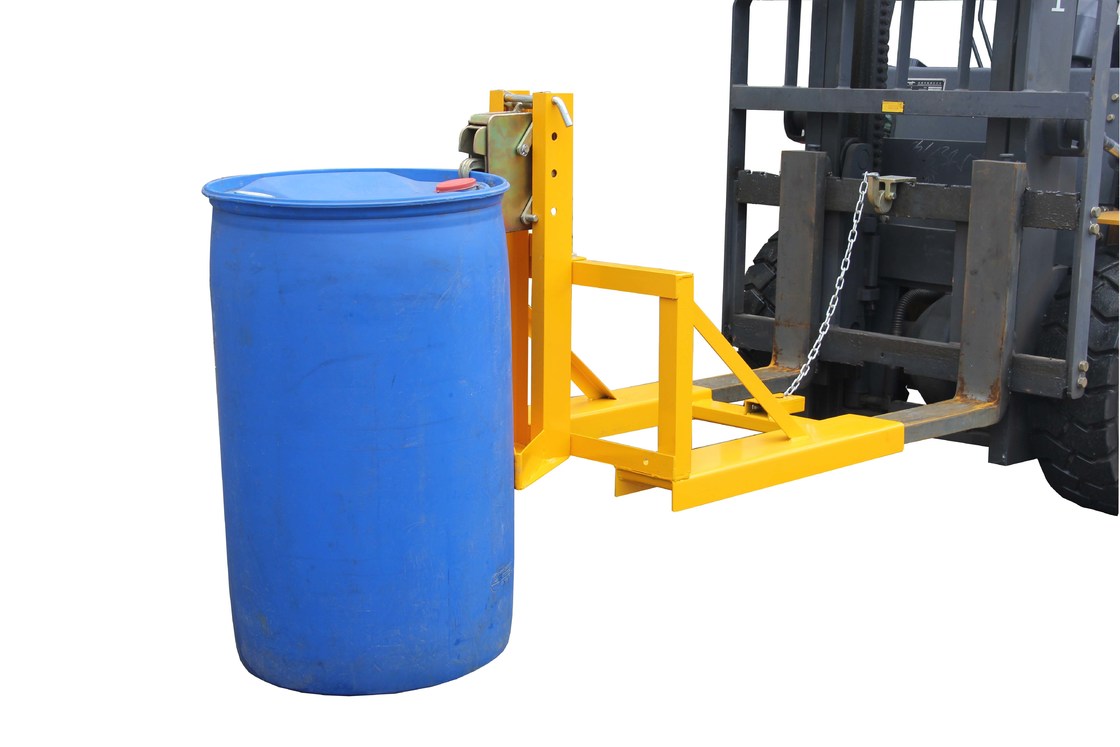

DG360C Single Gator Grip Forklift Mounted Drum Grab Loading Capacity 350kg

Basic Information
Place of Origin: CHINA
Brand Name: SINOLIFT
Certification: CE
Model Number: DG360C
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Sandard Export Package
Delivery Time: 15 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 5000 sets/mouth
Rated Capacity: 350kg Lifting Height: 450mm
Product Name: DG360C Single Gator Grip Forklift Mounted Drum Grab Loading Capacity 350kg Overall Size: 1030X760X850mm
Load Center: 1150mm Grab Min. Height: 525mm
Grab Max. Height: 750mm Straddle Inner Width: 425mm
Staddle Outline Width: 750mm Straddle Length: 750mm
Net Weight: 52Kg Warranty: 1 Year



1. Grab, lift, move and place drums without the operator leaving driver's seat.

2. Completely Mechanical and Automatic drum grab requires no hydraulic or electrical connections.

3. Automatic clamping mechanism for handling steel and plastic drums in high volume applications.

4. Carriage mounted models are available to mount directly on the carriage of most lift trucks for tight aisle applications.

5.. Can handle 1 or 2 drums simultaneously.

6. Totally enclosed fork pockets with attached safety chain and cam lock secures attachment to lift truck.

7. Single-Grip type grabs.



Model   DG360C
Capacity kg 360
Net Weight kg 52
Overall Size mm 1030*760*850
Load Center mm 1150
Grab Min. Height mm 525
Grab Max. Height mm 750
Grab Middle Height mm 600--675
Foks leg (length*width) mm 157*55
Straddle inner Width mm 425
Staddle outline Width mm 750
Straddle Length mm 750
