| Place of Origin: | China |
|---|---|
| Brand Name: | Sinolift |
| Certification: | CE |
| Model Number: | DTF350B |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Sandard Export Package |
| Delivery Time: | 15 days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 5000 sets/month |

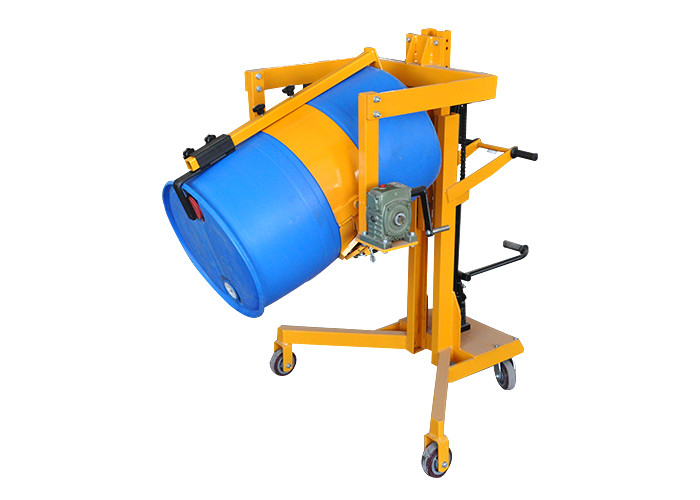

| Product Name: | DTF350B Manual Hydraulic Drum Dumper Standard Unit With Gear Reduction And The Stop Brake Loading Capacity 350Kg | Loading Capacity: | 350kg |
|---|---|---|---|
| Rotating Type: | Worm Gear | Vertical Lifting Height: | 900mm |
| Horizontal Lifting Height: | 1100mm | Leg Width: | 950mm |
| Drum Tilting Degree: | 90°~180°~360° | Outline Dimension: | 1180x1150x1260mm |
| Certification: | CE,ISO9001 | Net Weight: | 199Kg |
| Warranty: | 1 Year | After Service: | On-line Service,Spare Parts |
| High Light: | worm gear rotating drum dumper equipment,350kg capacity oil drum handling equipment |
||
Feature:
1. Designed to lift and pour a heavy drum up to 600mm(26") high. Manually rotate a drum 360 degrees in either direction. Lock drum in vertical position to prevent spills while transporting, or in horizontal position to dispense. Also move a drum to and from pallets.
2. Quickly lift, move and dispense a heavy drum,
3. Standard unit with gear reduction and the Stop brake. Adds gears for easy rotation and controlled dumping.
4. Pour drum beyond the V-shaped base. It is easy to Move drum off and on pallets.
Specification:
| Model | DTF350B | |
| Capacity | kg | 350 |
| Drum size | 30 gallon (Ø450x700)-55 gallon ( (Ø572x900) steel, 210L plastic | |
| Rotating type | Worm gear | |
| Lifting type | Manual & Pedal | |
| Vertical lifting height | mm | 900 |
| Horizontal lifting height | mm | 1100 |
| Leg Width | mm | 950 |
| Wheel | Φ125×20 | |
| Drum tilting degree | degree | 90°~180°~360° |
| Outline dimension | mm | 1180x1150x1260 |
| Net weight | kg | 199 |
