| Place of Origin: | China |
|---|---|
| Brand Name: | Sinolift |
| Certification: | CE |
| Model Number: | YL520 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Sandard Export Package |
| Delivery Time: | 15 days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union |
| Supply Ability: | 1000 sets/mouth |

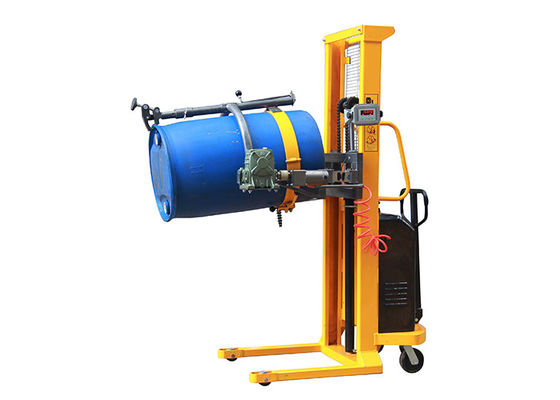

| Product Name: | YL520 Multifunction Weighting Electric Drum Lifter With Capacity 520Kg | Loading Weight: | 520kg |
|---|---|---|---|
| Drum Size: | 55 Gallon ( (Ø572x900) Steel, 210L Plastic | Lifting Height: | 1600mm |
| Battery Parameter: | 120Ah/12V | Turning Radius: | 1620mm |
| Lifting Speed: | 120mm/s | Certification: | CE,ISO9001 |
| Net Weight: | 269kg | Pump Unit Power: | 1.5kw/h |
| Warranty: | 1 Year | After Service: | On-line Service,Spare Parts |
| High Light: | multifunction drum dumper equipment,520kg Loading weight drum dumper,520kg Drum Dumping Equipment |
||
Feature:
1.Unique multi-function: Lifting, carry, turnover, dumping, easily and safety operate.
2. Tightly lock oil drum at horizontal or vertical position by left and right locking handles so that it will be dumped easily or free of overflow.
3.A combination of system to ensure that the mouth airfield effective fixation.
4.Oil drum carrier is of simple-and-light-structure design and be combined with Eagle-grip and Anchor ear structure which is fit for operating with steel oil drum and PE oil drum, easy to operate and saves effort.
5.With electronic scale built-in YL520-1; operational functions include: ZERO, TARE and weighting, of accuracy: ±3‰.
Specification:
| Model | YL520-1 | |
| Loading weight | kg | 520 |
| Drum size | 55 gallon ( (Ø572x900) steel, 210L plastic | |
| Lifting Height | mm | 1600 |
| Wheel Dimension | mm | Ø80x55/Ø150x50 |
| Inner/Outer Width of Front Leg | mm | 640/800 |
| Turning Radius | mm | 1620 |
| Pump Unit Power | KW/h | 1.5 |
| Battery Parameter | Ah/V | 120/12 |
| Lifting Speed | mm/s | 120 |
| Outline Dimension (LxWxH) | mm | 1400*980*2080 |
| Net weight | kg | 269 |
