| Place of Origin: | China |
|---|---|
| Brand Name: | Sinolift |
| Certification: | CE |
| Model Number: | YL600A |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Sandard Export Package |
| Delivery Time: | 15 days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 5000 sets/mouth |

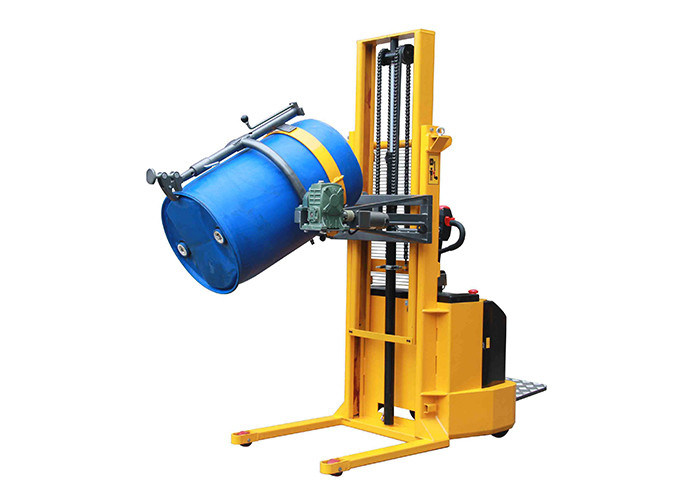

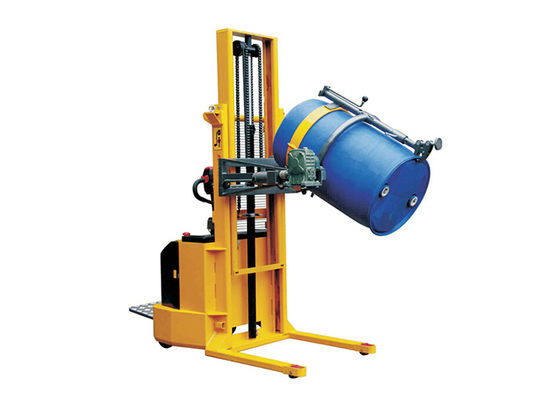

| Product Name: | YL600 Full Electric Drum Dumping Equipment With Intelligent Charger Drum Lifter Capacity 600kg Lifting Height 2350mm | Model: | YL600 |
|---|---|---|---|
| Drive Type: | Full Electric | Operating Type: | Standing Operation |
| Rated Load Capacity: | 600Kg | Lifting Height: | 2350MM |
| Turning Radius: | 1910MM | Controlling Type: | Electromagnetic Braking |
| Driving Wheel Size: | D250X80mm | Drive Motor Power: | 1.2KW |
| Lifting Motor Power: | 2.2KW | Rotating Range: | 360° |
| Highlight: | 55 gallon drum handling equipment,600kg rated load drum damper |
||
Feature:
Power drive, lift and tilt for ergonomic 55 steel drums and 200L plastic drums pouring;
Imported electrical vehicle exclusive walking control system;
Can be operated by one people, labor saving and high work efficiency;
The matched intelligent charger provides a more safe and convenient usage, needn’t the special inspection during whole charging process;
Specification:
| Model | YL600A | |
| Drive type | / | Full Electric |
| Operating type | / | Standing operation |
| Rated load capacity | kg | 600 |
| Lifting height | mm | 2350 |
| Turning radius | mm | 1910 |
| Max. Grade ability (laden/unladen) | % | 3/5 |
| Driving wheel size | mm | Ø250*80 |
| Wheels | / | Polyurethane |
| Controlling type | / | Electromagnetic braking |
| Drive motor power | kw | 1.2 |
| Lifting motor power | kw | 2.2 |
| Noise level | db(A) | ＜70 |
| Battery voltage/capacity | V/Ah | 24/210 |
| Charger | V/A | 24/30 |
| Net weight | kg | 680 |
| Rotating range | ° | 360° |
