| Place of Origin: | China |
|---|---|
| Brand Name: | Sinolift |
| Certification: | CE |
| Model Number: | YL520A-1 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Sandard Export Package |
| Delivery Time: | 15 days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 5000 sets/month |

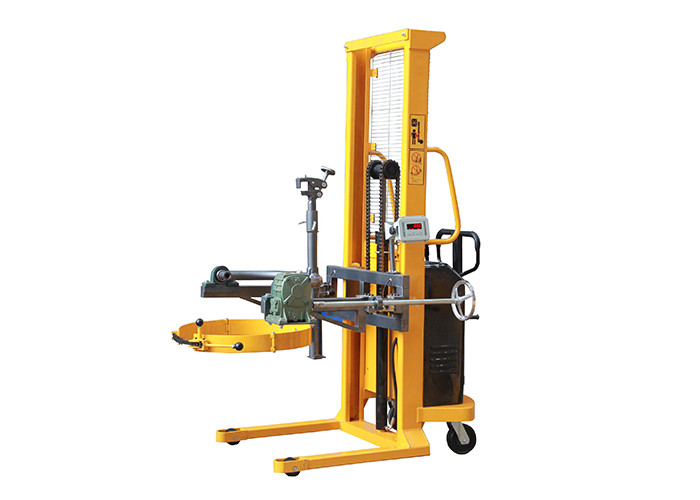

| Product Name: | YL520A-1 Lifting Height 1500mm Hydraulic Drum Dumping Equipment With Scale Load Capacity 520kg | Loading Capacity: | 520kg |
|---|---|---|---|
| Lifting Height: | 1500mm | Width Of Front Leg (Inner/Outer): | 640/800mm |
| Outline Dimension LxWxH: | 1400x1000x2080mm | Length Of Leg: | 630mm |
| Turning Radius: | 1620mm | Lifting Motor: | 1.5KW |
| Battery Parameter: | 120Ah/12V | Net Weight: | 260kg |
| Warranty: | 1 Year | After Service: | On-line Service,Spare Parts |
| High Light: | semi electric hydraulic drum handler,lifting height 1500mm drum dumper |
||
Feature:
1. The multifunctional unit has a hand pump that lifts drums from ground level to a raised height of 1500mm (61"), bottom of drum in horizontal position. A gear mechanism will provide a controlled rotation for the drum. A floor lock is standard to stabilize the unit in a fixed position.
2. A 12V DC powered mechanism lifts drums from ground level to a raised height of 1500mm (61".) and capacity of 500kg (1100Lbs).
3. Combined Eagle-grip and Anchor ear structure, suitable for manual hand rotation of steel drums and plastic drums;

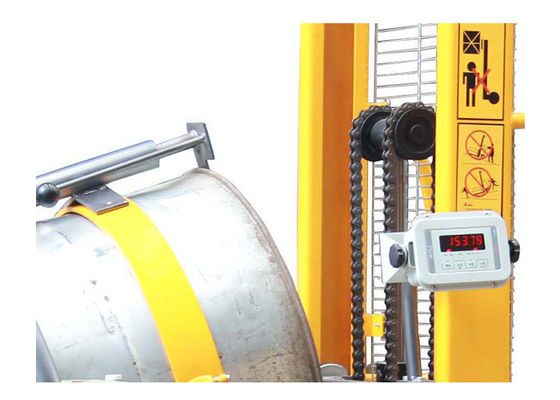

4. With electronic scale built-in YL520-1; operational functions include: ZERO, TARE and weighting, of accuracy: ±3‰
Specification:
| Model | YL520A-1 | |
| Loading Capacity | kg | 520 |
| Lifting Height | mm | 1500 |
| Drum size | 55 gallon ( (Ø572x900) steel, 210L plastic | |
| Wheel Dimension | mm | Ø80x55 / Ø150x50 |
| Width of Front Leg (Inner/Outer) | mm | 640/800 |
| Length of Leg | mm | 630 |
| Turning Radius | mm | 1620 |
| Lifting Motor | kw | 1.5 |
| Battery Parameter | Ah/V | 120/12 |
| Lifting Speed | mm/s | 120 |
| Outline Dimension LxWxH | mm | 1400x1000x2080 |
| Net weight | kg | 260 |
