| Place of Origin: | China |
|---|---|
| Brand Name: | Sinolift |
| Certification: | CE |
| Model Number: | DG1500E |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Sandard Export Package |
| Delivery Time: | 15 days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 5000 sets/month |

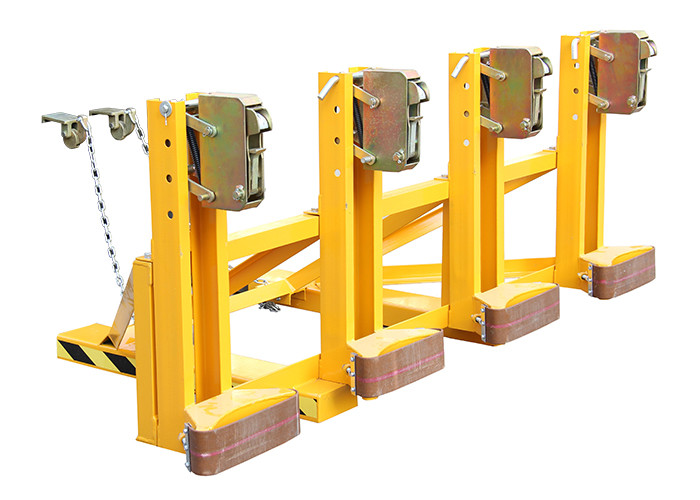

| Product Name: | DG2000A Mechanical Clamping Single Eagle Grip Forklift Drum Grabber Loading Capacity 500kg X4 | Capacity: | 500kgX4 |
|---|---|---|---|
| Straddle Inner Width: | 680mm | Staddle Outline Width: | 990mm |
| Foks Leg (length*width): | 150X55 | Straddle Length: | 900mm |
| Overall Size: | 2190X1080X850mm | Load Center: | 1150mm |
| Grab Min. Height: | 525mm | Grab Max. Height: | 750mm |
| Net Weight: | 137kg | Warranty: | 1 Year |
| After Service: | On-line Service,Spare Parts | ||
| High Light: | 4×500kg drum grabs,1150mm plastic drum grabber |
||
Feature:
1. Single Eagle-Grip automatic clamping mechanism for handling steel & plastic drums in high volume applications.
2. Clamping mechanisms are completely mechanical, requiring no hydraulic or electrical connections.
3. Replaceable soft wear-resistant protective cushion effectively protects drums and absorbs vibration.
4. Positive action jaws insure safe transporting of drums without damage to drum chimes.
5. Lift truck operators to install/remove the attachment in seconds without any tools.

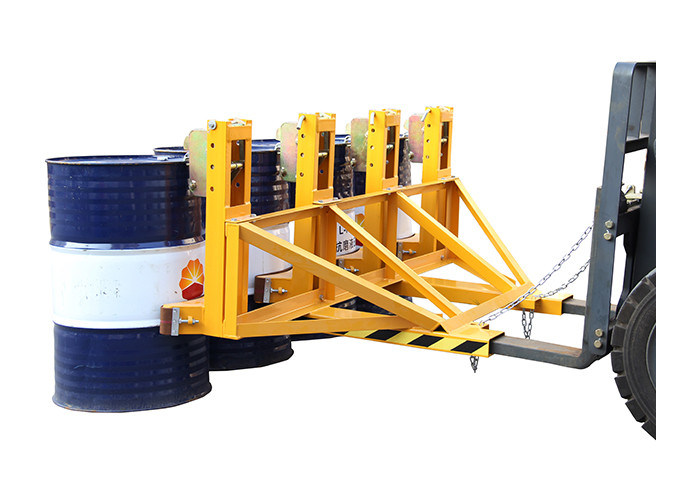

6. Fork mounted models can handle 1, 2, 3 or 4 drums simultaneously.
7. Quick adjustable heads allow pickup of various drum heights.
Specification:
| Model | DG2000A | |
| Capacity | kg | 500X4 |
| Net Weight | kg | 137 |
| Overall Size | mm | 2190X1080X850 |
| Load Center | mm | 1150 |
| Grab Min. Height | mm | 525 |
| Grab Max. Height | mm | 750 |
| Grab Middle Height | mm | 675--600 |
| Foks leg (length X width) | mm | 150X55 |
| Straddle inner Width | mm | 680 |
| Staddle outline Width | mm | 990 |
| Straddle Length | mm | 900 |
