Place of Origin: | China |
---|---|
Brand Name: | Sinolift |
Certification: | CE |
Model Number: | DG1500A |
Minimum Order Quantity: | 1 set |
Price: | Negotiable |
Packaging Details: | Sandard Export Package |
Delivery Time: | 15 days |
Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
Supply Ability: | 5000 sets/month |

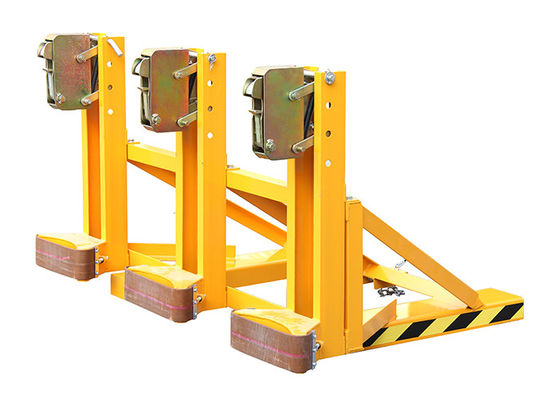

Product Name: | DG1500A Forklift Mounted Drum Grabber Single Eagle-Grip Three Drums Drum Grabber Load Capacity 500KgX3 | Capacity: | 500kgX3 |
---|---|---|---|
Grab Min. Height: | 525mm | Grab Max. Height: | 750mm |
Straddle Inner Width: | 680mm | Staddle Outline Width: | 990mm |
Foks Leg (length*width): | 150X55mm | Straddle Length: | 900mm |
Certification: | CE,ISO9001 | Net Weight: | 111kg |
Warranty: | 1 Year | After Service: | On-line Service,Spare Parts |
Highlight: | 3×500kg steel drum grabber,900mm plastic drum grabber |
Feature:
1. With the help of heavy duty Single Eagle-Grip automatic clamping mechanism for handling steel and plastic drums in high volume applications.
2. The clamping mechanisms are completely mechanical, requiring no hydraulic or electrical connections.
3. Replaceable soft wear-resistant protective cushion effectively protects drums and absorbs vibration.
4. Positive action jaws insure safe transporting of drums without damage to drum chimes.
5. Fork mounted models enable lift truck operators to install/remove the attachment in seconds without any tools.
6. Fork mounted models can handle 1, 2, 3 drums simultaneously.
Specification:
Model | DG1500A | |
Capacity | kg | 500X3 |
Net Weight | kg | 111 |
Overall Size | mm | 1570X1080X850 |
Load Center | mm | 1150 |
Grab Min. Height | mm | 525 |
Grab Max. Height | mm | 750 |
Grab Middle Height | mm | 675--600 |
Foks leg (lengthXwidth) | mm | 150*55 |
Straddle inner Width | mm | 680 |
Staddle outline Width | mm | 990 |
Straddle Length | mm | 900 |
