| Place of Origin: | China |
|---|---|
| Brand Name: | Sinolift |
| Certification: | CE |
| Model Number: | DG1080A |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Sandard Export Package |
| Delivery Time: | 15 days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 5000 sets/month |

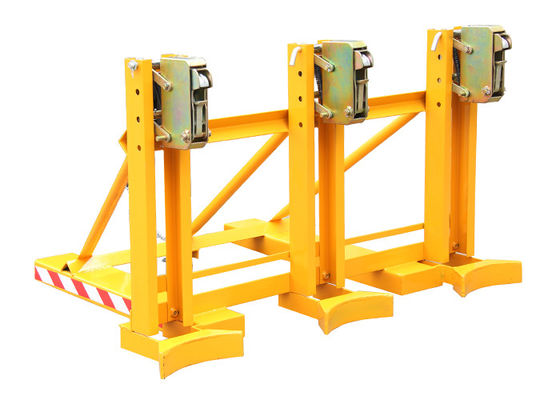

| Product Name: | DG1080A Drum Carriers Automatic Clamping Mechanism Drum Type Loading Capacity 1080Kg | Capacity: | 1080Kg |
|---|---|---|---|
| Overall Size: | 1080X1520X850mm | Straddle Inner Width: | 670mm |
| Staddle Outline Width: | 990mm | Load Center: | 1150mm |
| Foks Leg (length*width) Height: | 150X55mm | Grab Min. Height: | 525mm |
| Grab Max. Height: | 750mm | Net Weight: | 98Kg |
| Warranty: | 1 Year | After Service: | On-line Service,Spare Parts |
Feature:
- Grab, lift, move and place drums without the operator leaving driver's seat;
- Completely Mechanical and Automatic drum grab requires no hydraulic or
electrical connections;
- Automatic clamping mechanism for handling steel and plastic drums in high
volume applications;
- Carriage mounted models are available to mount directly on the carriage of
most lift trucks for tight aisle applications;
- Can handle 1,2,3 drums simultaneously;
- Totally enclosed fork pockets with attached safety chain and cam lock secures
the attachment to the lift truck.
Specification:
| Model | DG1080A | |
| Capacity | kg | 360*3 |
| Net Weight | kg | 98 |
| Overall Size | mm | 1080*1520*850 |
| Load Center | mm | 1150 |
| Grab Min. Height | mm | 525 |
| Grab Max. Height | mm | 750 |
| Grab Middle Height | mm | 675--600 |
| Foks leg (length*width) | mm | 150*55 |
| Straddle inner Width | mm | 670 |
| Staddle outline Width | mm | 990 |
| Straddle Length | mm | 900 |
