| Place of Origin: | China |
|---|---|
| Brand Name: | Sinolift |
| Certification: | CE |
| Model Number: | DG720C |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Sandard Export Package |
| Delivery Time: | 15 days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 5000 sets/month |
| Product Name: | DG720C Forklift Mounted Drum Grab With No Requirement Of Hydraulic Or Electrical Connections Capacity 700kg | Loading Capacity: | 360*2 Kg |
|---|---|---|---|
| Overall Size: | 1030*1020*850mm | Straddle Inner Width: | 425mm |
| Staddle Outline Width: | 750mm | Load Center: | 1150mm |
| Grab Middle Height: | 600--675 | Straddle Length: | 750mm |
| Net Weight: | 70Kg | Warranty: | 1 Year |

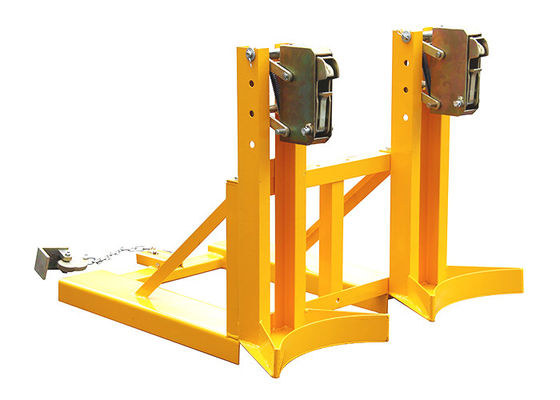

Forklift Mounted Drum Grab DG720C
1. Grab, lift, move and place drums without the operator leaving driver's seat.
2. Completely Mechanical and Automatic drum grab requires no hydraulic or
electrical connections.
3. Automatic clamping mechanism for handling steel and plastic drums in high
volume applications.
4. Carriage mounted models are available to mount directly on the carriage of
most lift trucks for tight aisle applications.
5. Can handle 1 or 2 drums simultaneously.
6. Totally enclosed fork pockets with attached safety chain and cam lock secures attachment to lift truck.
7. Single-Grip type grabs.
| Model | DG720C | |
| Capacity | kg | 360*2 |
| Net Weight | kg | 70 |
| Overall Size | mm | 1030*1020*850 |
| Load Center | mm | 1150 |
| Grab Min. Height | mm | 525 |
| Grab Max. Height | mm | 750 |
| Grab Middle Height | mm | 600--675 |
| Foks leg (length*width) | mm | 157*55 |
| Straddle inner Width | mm | 425 |
| Staddle outline Width | mm | 750 |
| Straddle Length(mm) | mm | 750 |
