| Place of Origin: | China |
|---|---|
| Brand Name: | Sinolift |
| Certification: | CE |
| Model Number: | DG720B |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Sandard Export Package |
| Delivery Time: | 15 days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 5000 sets/month |

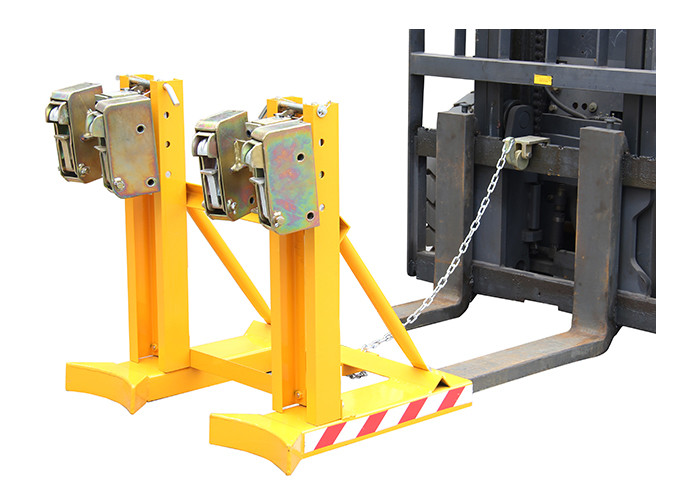

| Product Name: | DG720B Drum Grabbers Forklift Drum Grabber For Tight Aisle Applications Load Capacity 360kgX2 | Capacity: | 360KgX2 |
|---|---|---|---|
| Overall Size: | 810X910X850mm | Straddle Inner Width: | 430mm |
| Staddle Outline Width: | 750mm | Load Center: | 1150mm |
| Grab Min. Height: | 465mm | Grab Max. Height: | 690mm |
| Net Weight: | 74kg | Certification: | CE,ISO9001 |
| Warranty: | 1 Year | After Service: | On-line Service,Spare Parts |
| High Light: | 2×360kg forklift drum grab,465mm double drum clamp |
||
Feature:
- Grab, lift, move and place drums without the operator leaving driver's seat;
- Completely Mechanical and Automatic drum grab requires no hydraulic or
electrical connections;
- Automatic clamping mechanism for handling steel and plastic drums in high
volume applications
- Carriage mounted models are available to mount directly on the carriage of
most lift trucks for tight aisle applications;

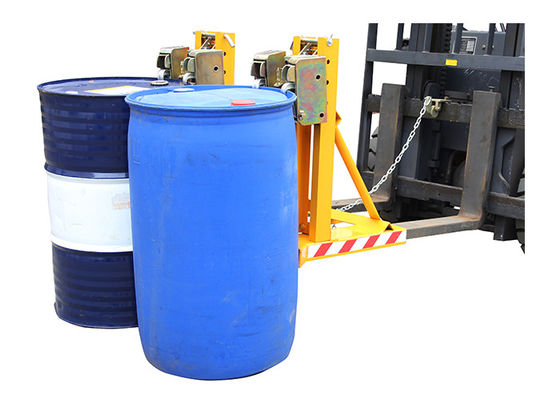

- Can handle 1,2 drums simultaneously;
1. Carry two drums by the automatic grip lock, maintains a positive grip over rough floor surface.
2. The Gator Grip auto lock feature will not open and ensures safe secure drum transport.
3. Grip head has different position to fit different height.
4. Easily carry and have much more safety
Specification:
| Model | DG720B | |
| Capacity | kg | 360*2 |
| Net Weight | kg | 74 |
| Overall Size | mm | 810*910*850 |
| Load Center | mm | 1150 |
| Grab Min. Height | mm | 465 |
| Grab Max. Height | mm | 690 |
| Grab Middle Height | mm | 615--540 |
| Foks leg (length*width) | mm | 150*55 |
| Straddle inner Width | mm | 430 |
| Staddle outline Width | mm | 750 |
| Straddle Length(mm) | mm | 600 |
