| Place of Origin: | China |
|---|---|
| Brand Name: | SINOLIFT |
| Certification: | CE, ISO9001 |
| Model Number: | CQXD16 CQXD20 |
| Document: | Sinolift CQXD16 CQXD20 Elec...re.pdf |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Sandard Export Package |
| Delivery Time: | 15 days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union |
| Supply Ability: | 1000 sets/mouth |
| Product Name: | Sinolift CQXD16 CQXD20 Electric Reach Truck | Driving Style: | Pedestrian |
|---|---|---|---|
| Load Capacity Q: | 5000kg | Load Center C: | 600mm |
| Overall Length: | 1780mm | Overall Width: | 690mm |
| Overall Height: | 1310mm | Power Of Driving Motor: | 1.5kw |
| Power Of Lift Motor: | 2.2kw | Net Weight: | 350kg |
| Warranty: | 1 Year | After Service: | On-line Service,free Spart Parts |

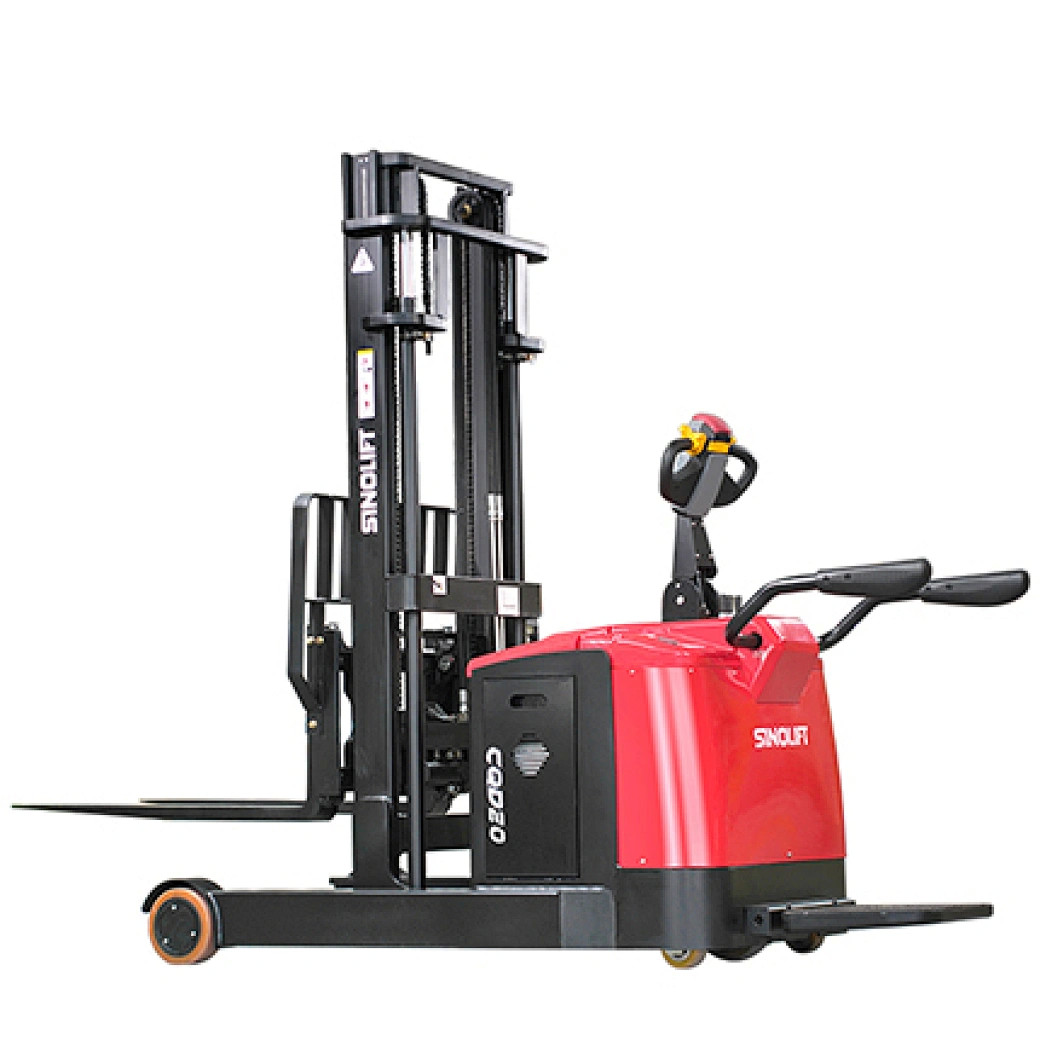

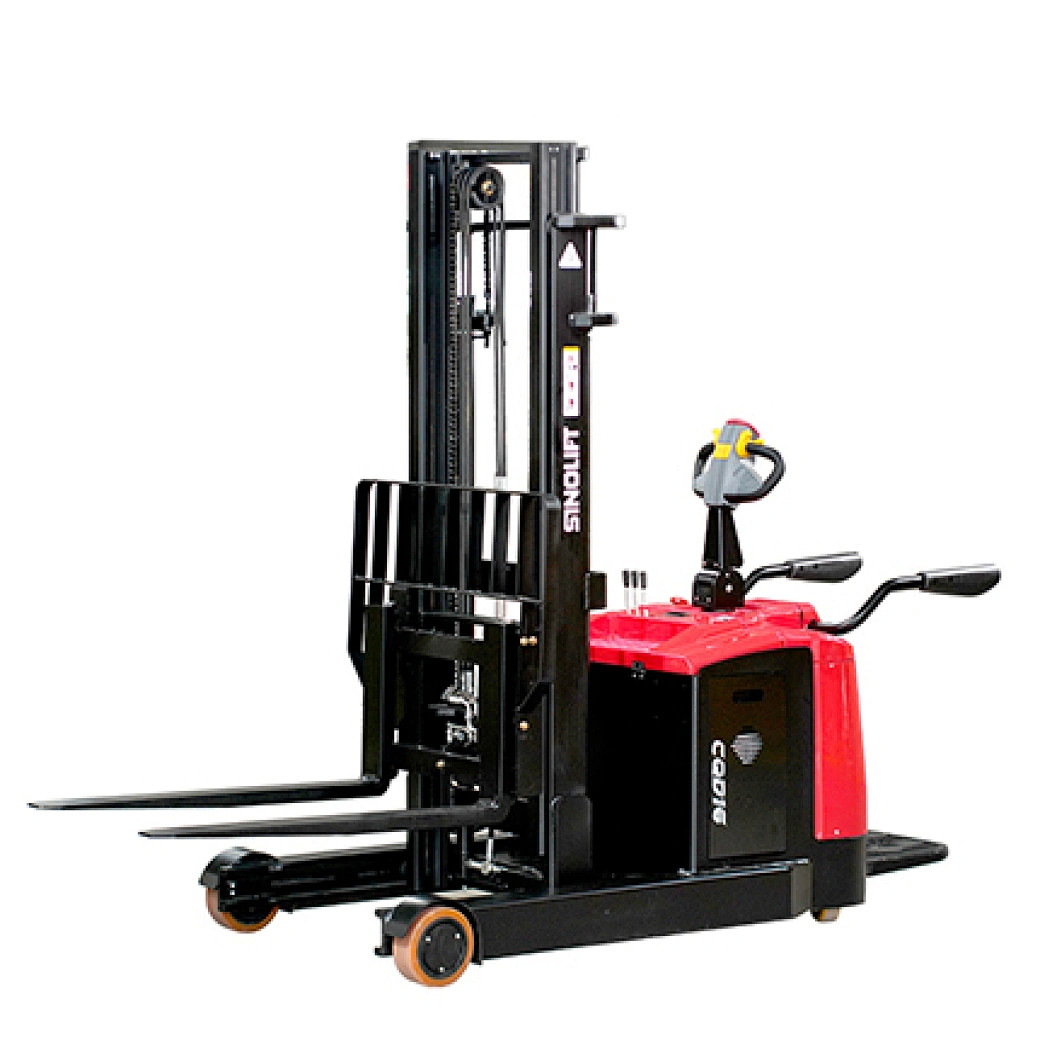

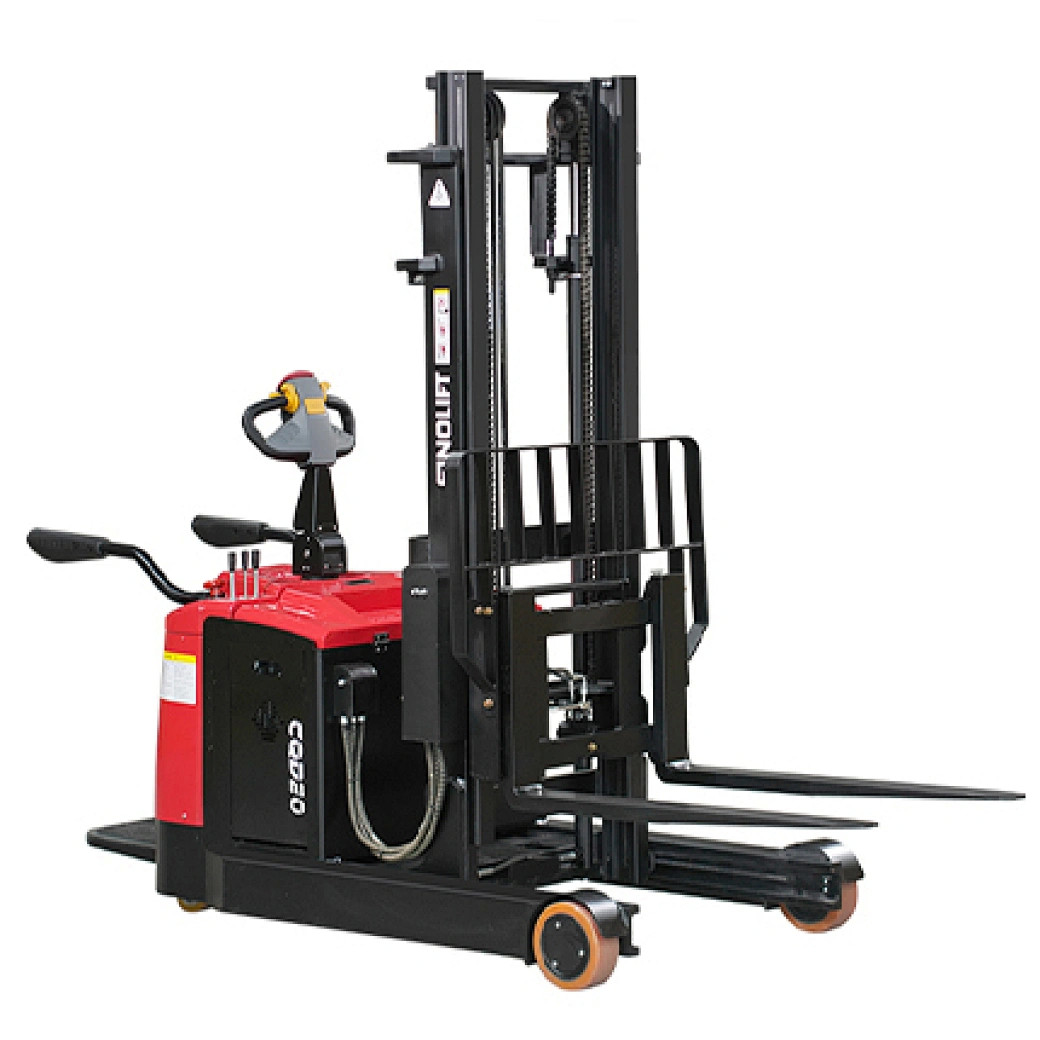

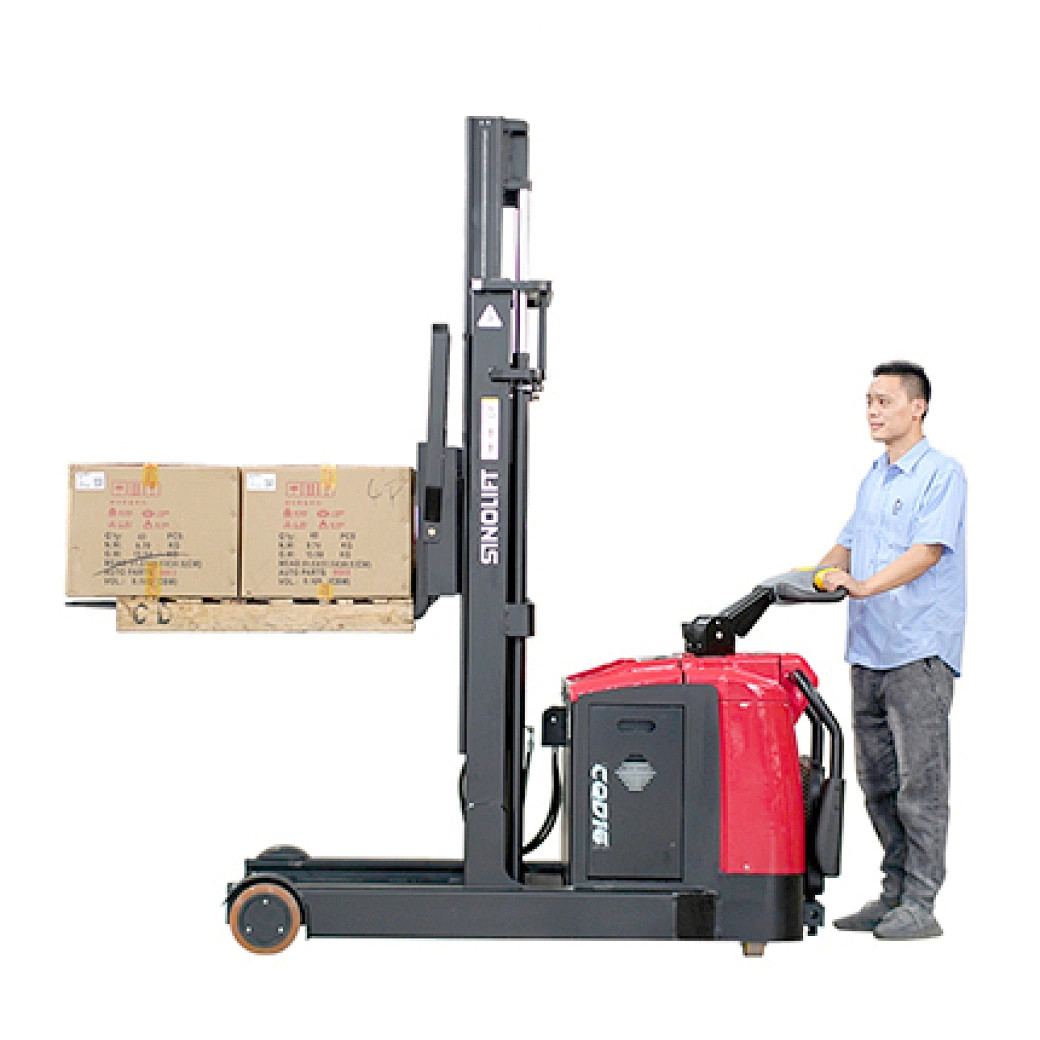

This fully-powered pallet stacker is equipped with a forward-extending mast and an integrated counterbalance at the rear. This design positions the forks beyond the front legs, allowing the stacker to approach shelving units closely without contacting shelf legs or ground-level pallets. It features fully electric lifting and travel functions, eliminating physical effort for the operator when moving heavy loads. Similar to a forklift, this model includes a tilting mast for improved stability during lifting and transport.
Key Features
• Low-maintenance AC motor delivers durability, power, and energy efficiency.
• Standard EPS (Electric Power Steering) for smooth and easy control.
• Multiple braking systems: release brake, reverse brake, and emergency brake for enhanced safety.
• Vertical drive wheel unit offers powerful and reliable performance.
• Multi-function control valve manages lifting, forwarding, and tilting.
• Compact design enables efficient operation in narrow aisles.
• Robust chassis built for long-term heavy-duty use.
• High-capacity traction batteries extend continuous operation time.
• Intelligent battery charger with clear status display.
Product Specifications
| Identification | 1.1 | Manufacture's type designation | SINOLIFT | |||
| 1.2 | Model | CQXD16 | CQXD20 | |||
| 1.3 | Power Type | Electric | ||||
| 1.4 | Type of Operation | Stand-on | ||||
| 1.5 | Steering Mode | Electric Power Steering | ||||
| 1.6 | Load Capacity/Rated Load | Q | kg | 1600 | 2000 | |
| 1.7 | Load Center Distance | C | mm | 600 | 600 | |
| 1.8 | Load distance, the center of drive axle to fork | x | 160 | 160 | ||
| 1.9 | Wheelbase | y | mm | 1440 | 1610 | |
| Weight | 2.0 | Total Weight (with Battery) | kg | 1980 | 2000 | |
| 2.1 | Axle Load (laden): Drive side/Load-bearing side | / | 1 | |||
| 2.3 | Axle Load (unladen): Drive side/Load-bearing side | kg | / | / | ||
| Dimension | 3.1 | Overall Length (Pedal Retracted/Expanded) | L1/L2 | 2335/2750 | 2435/2870 | |
| 3.2 | Overall Width | W1/W2 | mm | 880/1030 | 880/1030 | |
| 3.3 | Lift Height | h1 | mm | 3000 | 3000 | |
| 3.4 | Height with Mast Lowered | h2 | 2040 | 2040 | ||
| 3.5 | Height with Mast Extended | h4 | mm | 3855 | 3855 | |
| 3.6 | Free Lift Height | h5 | / | / | ||
| 3.7 | Fork Dimension | l/e/s | mm | 1070×100×40 | 1070×122×40 | |
| 3.8 | Fork Mounting Class | 2A | 2A | |||
| 3.9 | Fork Carriage Spread Width | b2 | mm | 220-690 | 220-690 | |
| 3.1 | Fork Carriage Tilt forward/backward | α/β | ° | 2/4 | 2/4 | |
| 3.11 | Inner Width of Straddle Leg | b3 | 748 | 748 | ||
| 3.12 | Reach Distance | L3 | mm | 580 | 680 | |
| 3.13 | Height of Straddle Leg | h6 | mm | 235 | 235 | |
| 3.14 | Ground Clearance at the Center of Wheelbase (Min.) | m1 | 55 | 55 | ||
| 3.15 | Height of Operating Handlebar (Min./Max) | h14 | mm | 1000/1450 | 1000/1450 | |
| 3.16 | Turning Radius (Pedal Retracted/Expanded) | Wa | 1710/2145 | 1910/2340 | ||
| 3.17 | Min. Aisle Width (Pallet size 1000*1200)(PedalRetracted/Expanded) | Ast | mm | 2835/3270 | 2955/3485 | |
| 3.18 | Min.Aisle Width (Pallet size 800*1200)(Pedal Retracted/Expanded) | Ast | mm | 2785/3220 | 2900/3330 | |
| Tyre | 4.1 | Tyre Type | Polyurethane | Polyurethane | ||
| 4.2 | Tyre Size (Front) | φ210x85 | φ210x85 | |||
| 4.3 | Tyre Size (Balance Wheel) | mm | φ115x55 | φ115x55 | ||
| 4.4 | Tyre Size (Driving Wheel) | mm | φ230x75 | φ230x75 | ||
| 4.5 | Wheels Quantity, Front/Rear (x=Driving Wheels) | 2/1x+2 | 2/1x+2 | |||
| Performance | 5.1 | Traveling Speed (Laden/Unladen) | Km/h | 5/5.5 | 4/5 | |
| 5.2 | Lifting Speed(Laden/Unladen) | mm/s | 80/130 | 80/130 | ||
| 5.3 | Lowering Speed (Laden/Unladen) | mm/s | 150/100 | 150/100 | ||
| 5.4 | Max. Gradient Performance S2 5min (Laden/Unladen) | % | 5/8 | 4/8 | ||
| 5.5 | Service Brake Type | Electromagnetic | Electromagnetic | |||
| 5.6 | Parking Brake Type | Electromagnetic | Electromagnetic | |||
| Power Unit | 6.1 | Drive Motor Rating (AC) S2-60min | 1.5 | 1.5 | ||
| 6.2 | Lift Motor Rating (DC) S3 15% | kW | 3 | 3 | ||
| 6.3 | Battery Voltage/Capacity K5 | V/Ah | 24/240 | 24/240 | ||
| 6.4 | Battery Weight | kg | 200 | 200 | ||
| Others | 7.1 | Controller Brand | CURTIS | CURTIS | ||
| 7.2 | Controller Model | 1232E | 1232E | |||
| 7.3 | Sound Level at Driver's Ear According to EN12053 | dB | 70 | 70 | ||
