| Place of Origin: | China |
|---|---|
| Brand Name: | Sinolift |
| Certification: | CE |
| Model Number: | SP4500 SP4500C |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Sandard Export Package |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, D/P, T/T, Western Union |
| Supply Ability: | 1000 sets/mouth |
| Product Name: | SP4500 / SP4500C Airbag Scissor Lift Table With 360° Rotating Platform | Application: | Industrial |
|---|---|---|---|
| Warranty: | 1 Year | After Service: | On-line Service,Spare Parts |
| Load Capacity: | 100–2000kg | Minimum Height: | 265mm |
| Maximum Height: | 710mm | Net Weight: | 165kg |
Product Name:

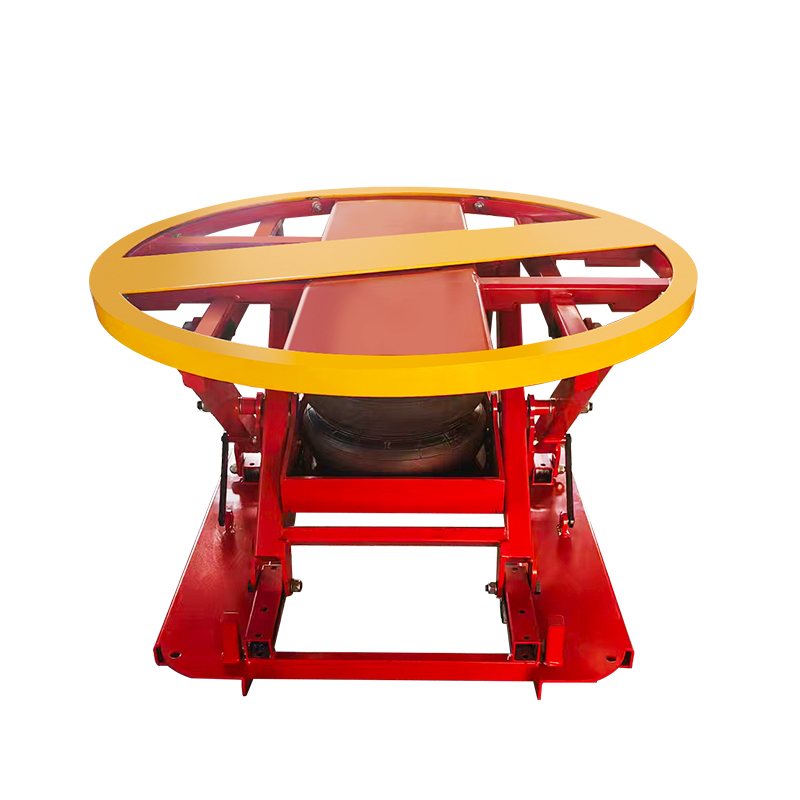

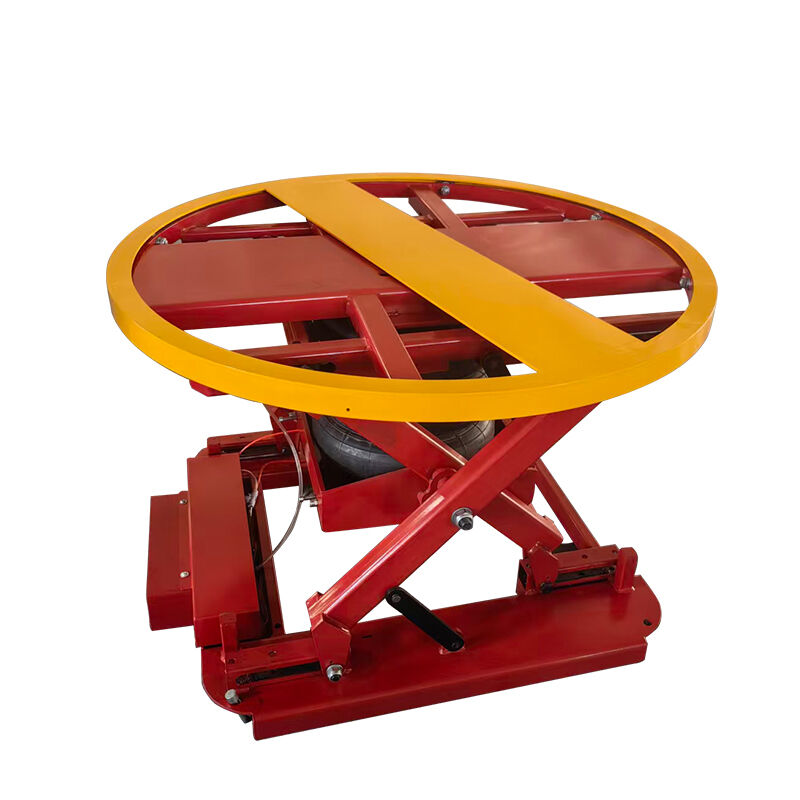

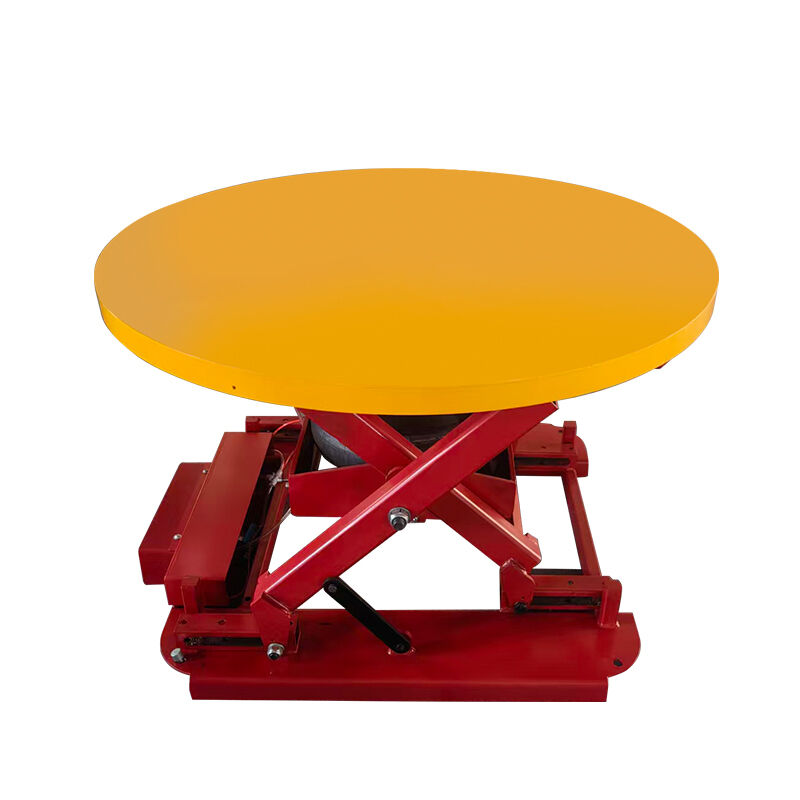

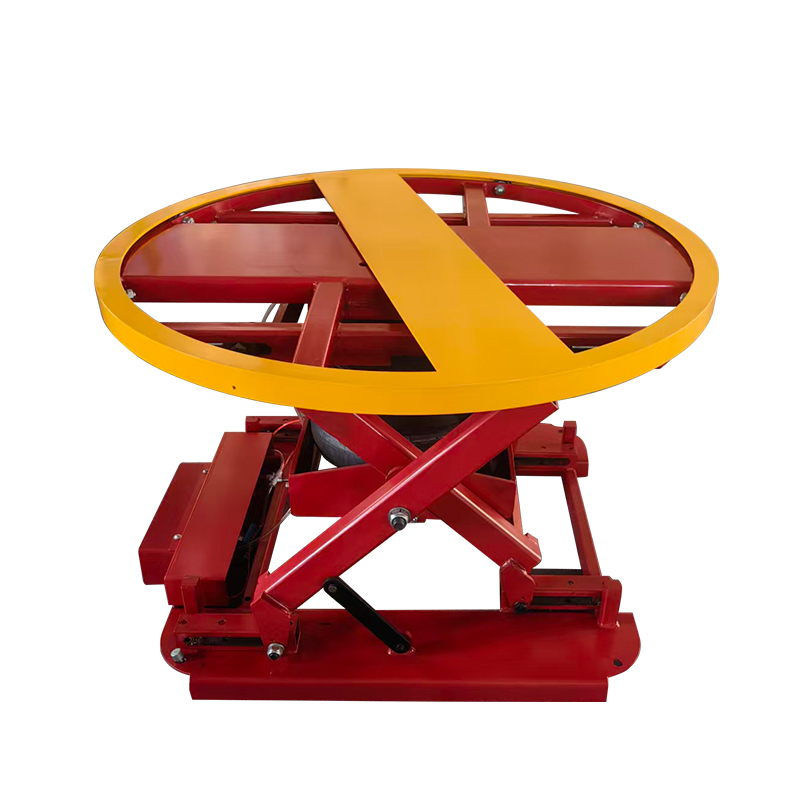

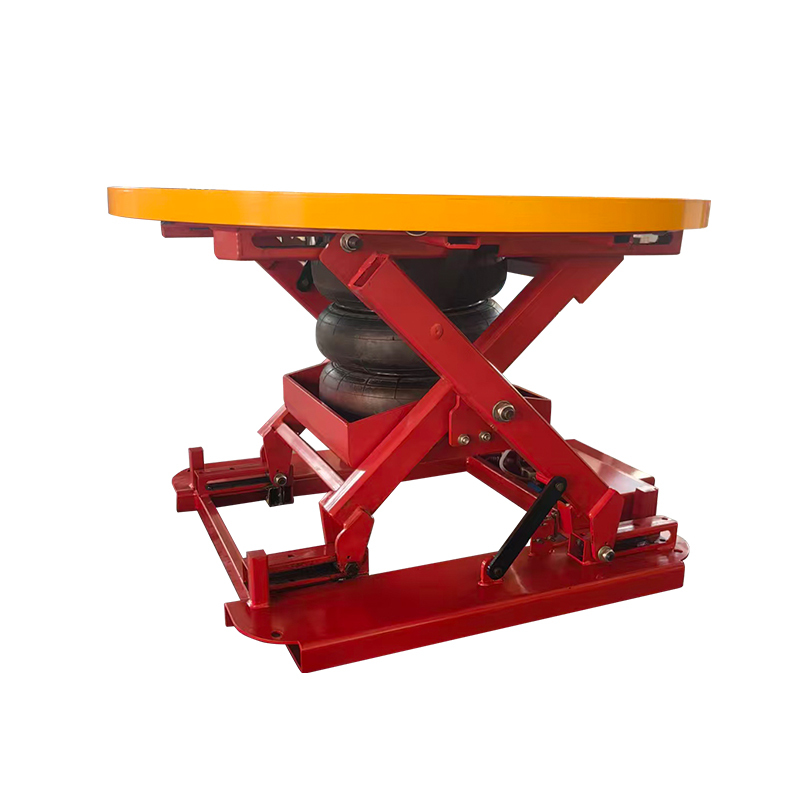

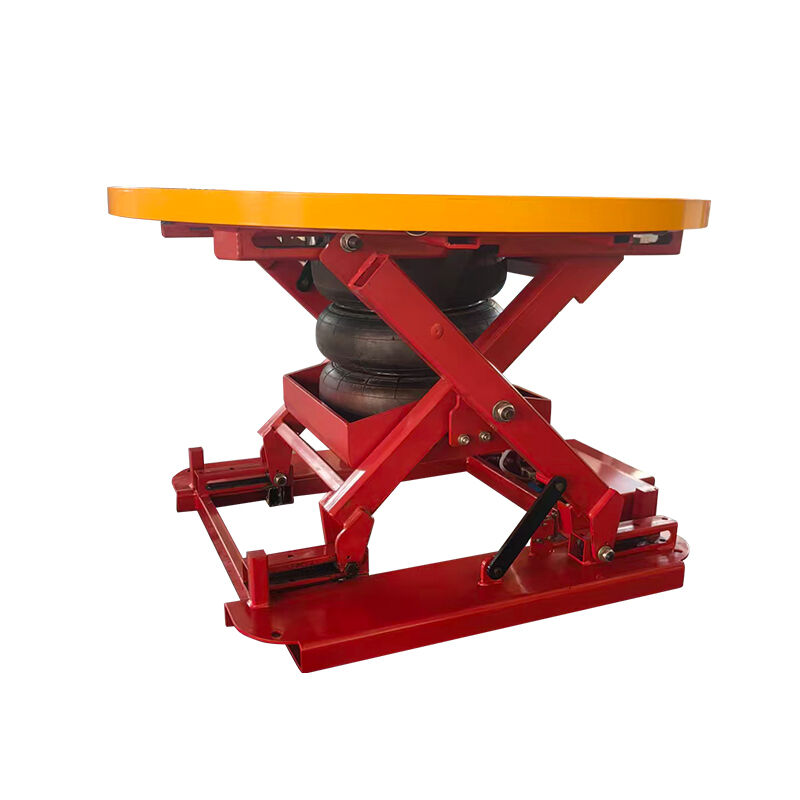

SINOLIFT SP4500 / SP4500C Airbag Scissor Lift Table with 360° Rotating Platform
Product Description:
The SINOLIFT SP4500 / SP4500C Airbag Scissor Lift Table is designed to improve pallet loading, unloading and material handling at industrial workstations. Its pneumatic airbag system automatically adjusts the platform height as goods are added or removed, helping reduce bending and reaching during repetitive tasks.
Both models offer a load range of 100–2,000 kg and a platform height range of 265–710 mm. The 360° manually rotating platform allows operators to access different sides of the load. The SP4500 features an open-top platform, while the SP4500C provides a solid-top surface.
A reinforced rubber airbag drives the lifting mechanism. Compressed air is required for initial inflation; once properly inflated, the air supply can be disconnected while the table continues operating within its designed working range.
Key Features:
Pneumatic Airbag Lifting: Uses a reinforced rubber airbag in place of a conventional hydraulic cylinder, providing smooth lifting without hydraulic oil leakage.
Automatic Height Adjustment: Responds to changing loads during loading and unloading, helping maintain a convenient working height.
Load Capacity Up to 2 Tonnes: Supports loads within the specified 100–2,000 kg range.
265–710 mm Platform Height: Provides vertical adjustment for pallet handling and workstation tasks.
360° Manual Rotation: The Ø1,110 mm turntable allows access to the load from different directions.
Two Platform Options: Choose the SP4500 with a removable open-top platform or the SP4500C with a solid-top platform.
Reinforced Scissor Structure: Heavy-duty steel scissor arms and stabilizing linkage help reduce tilting and sway during lifting.
Air Pressure Monitoring: An air pressure gauge allows operators to check inflation pressure against the specified operating range.
Integrated Fork Pockets: Built-in fork pockets allow forklift handling and repositioning between work areas.
Application:
Suitable for palletizing, depalletizing, packing, unpacking and production-line material feeding in manufacturing facilities, warehouses and logistics centres. It also supports parts handling in automotive workshops and other industrial workstations where operators need convenient access to materials at an adjustable height.
| Model | SP4500 | SP4500C | |
| Type | Standard (Open Top) | European Version (Solid Top) | |
| Load Capacity | kg | 100–2000 | 100–2000 |
| Minimum Height | mm | 265 | 265 |
| Maximum Height | mm | 710 | 710 |
| Turntable Diameter | mm | Ø1110 | Ø1110 |
| Minimum Air Pressure | PSI | 6 | 6 |
| Maximum Air Pressure | PSI | 15 | 15 |
| Net Weight | kg | 165 | 165 |
