| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SINOLIFT |
| Certification: | CE |
| Model Number: | PTS150 PTS350A PTS350AA |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Sandard Export Package |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 sets/mouth |

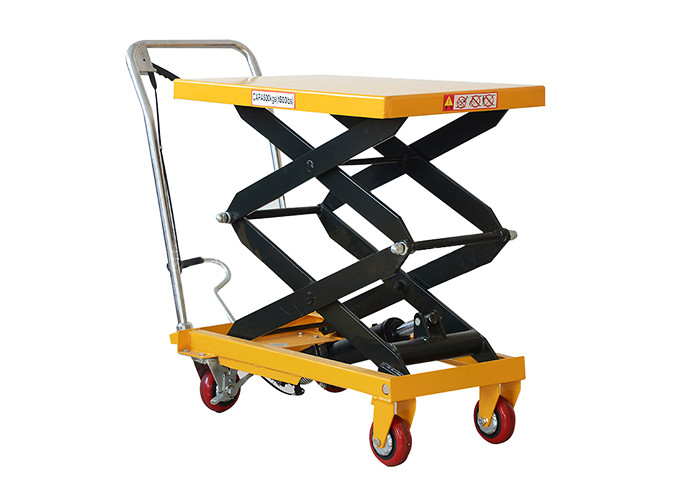

| Product Name: | PTS150 PTS350A PTS350AA Double Scissors Type Mobile Hydraulic Lift Table Load Capacity 350Kg | Load Capacity: | 350Kg |
|---|---|---|---|
| Min. Height: | 302mm | Max. Height: | 1500mm |
| Table Dimension: | 905X500X50mm | Dia.of The Wheel: | Φ125mm |
| Net Weight: | 99Kg | Certification: | CE,ISO9001 |
| Warranty: | 1 Year | After Service: | On-line Service,Spare Parts |
| High Light: | scissor table lift,scissor lift table cart,scissor lift work table |
||
Feature:
1. Valuable material handling for use as a feeding table on assembly line.
2. Structural heavy duty steel construction.
3. Easy action foot operated hydraulic lift for raising table top to desired level.
4. Robust castors with safety wheel guard and brakes on the two swivel castors, for greater safety wheel loading and unloading.
5. Hand operated table descent control.
Specification:
| Model | PTS150 | PTS350A | PTS350AA | ||
| Load Capacity | KG | 150 | 350 | 350 | |
| Min. Height | MM | 302 | 360 | 360 | |
| Max. Height | MM | 1260 | 1300 | 1500 | |
| Table Dimension | MM | 700*450*35 | 905*500*50 | 905*500*50 | |
| Dia.of the wheel | MM | Φ100 | Φ125 | Φ125 | |
| Net Weight | KG | 51 | 99 | 99 | |
| Packing Dimensions | MM | 820*470*325 | 1010*520*380 | 1010*520*380 | |
| Load in 20'Container | PC | 144 | 100 | 100 | |
