| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SINOLIFT |
| Certification: | CE, ISO9001 |
| Model Number: | CDD1019BF |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Sandard Export Package |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 1000 sets/mouth |
| Product Name: | SINOLIFT CDD1019BF 1 Ton Electric Single-Arm Push-Pull Cart 1.95m Lifting Height Roll Material Handling Trolley | Rated Load: | 1000kg |
|---|---|---|---|
| Arm Specification: | 960XΦ145mm | Travel Motor Rated Power: | 750W |
| Lift Motor Rated Power: | 2200W | Drive Wheel Specification: | 210*70mm |
| Load Wheel Specification: | 80*70mm | After Service: | On-line Service,free Spare Parts |
| Warranty: | 1 Year |
Product Name:

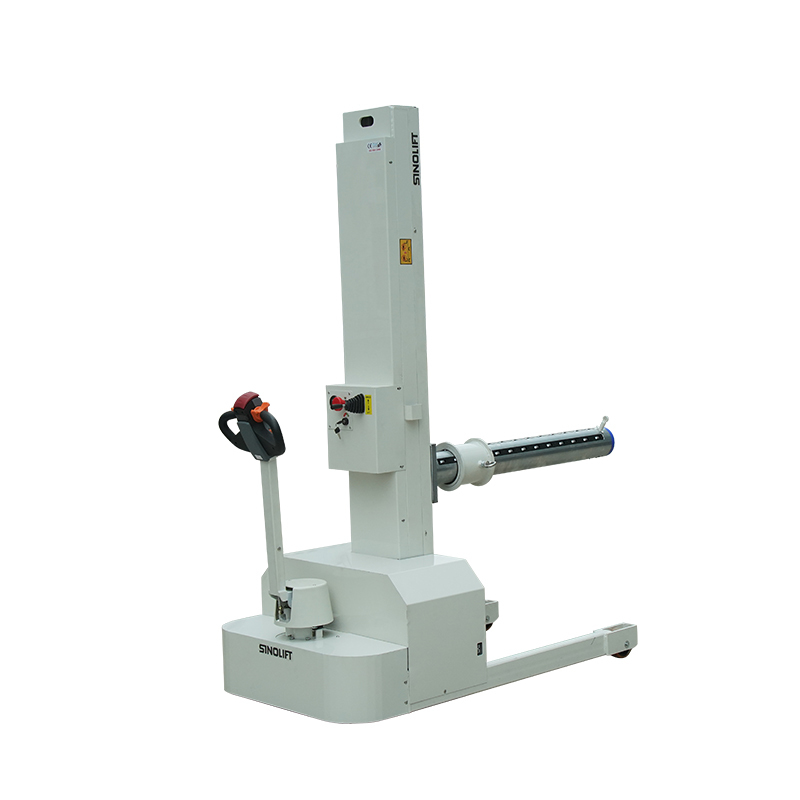

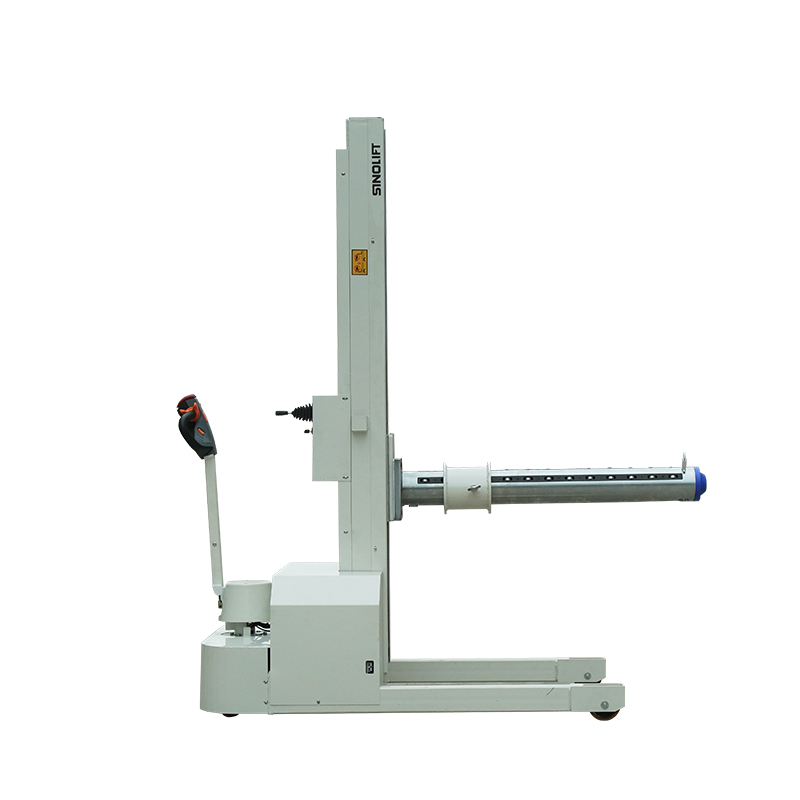

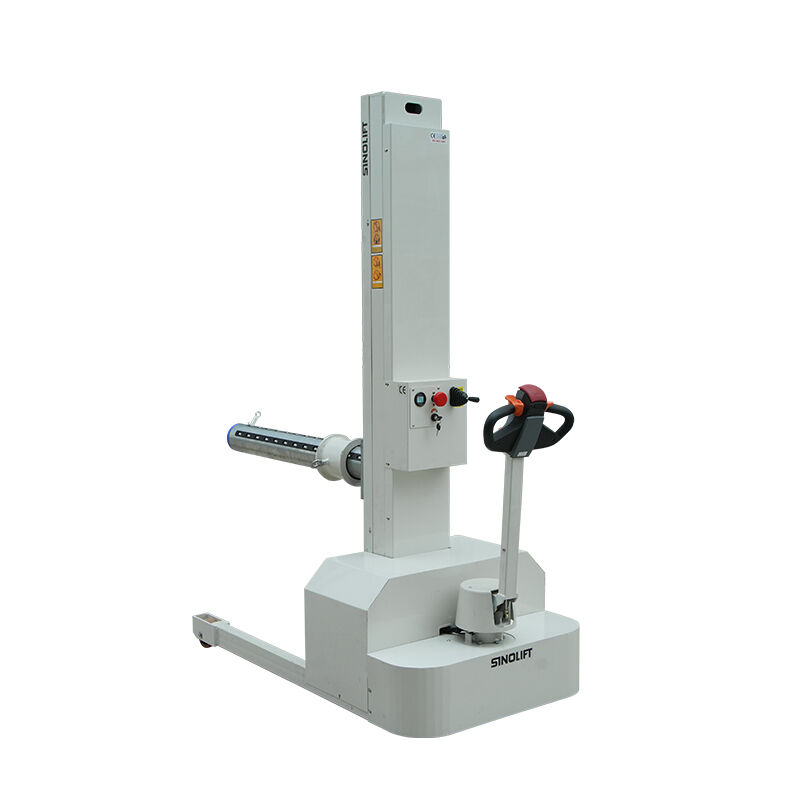

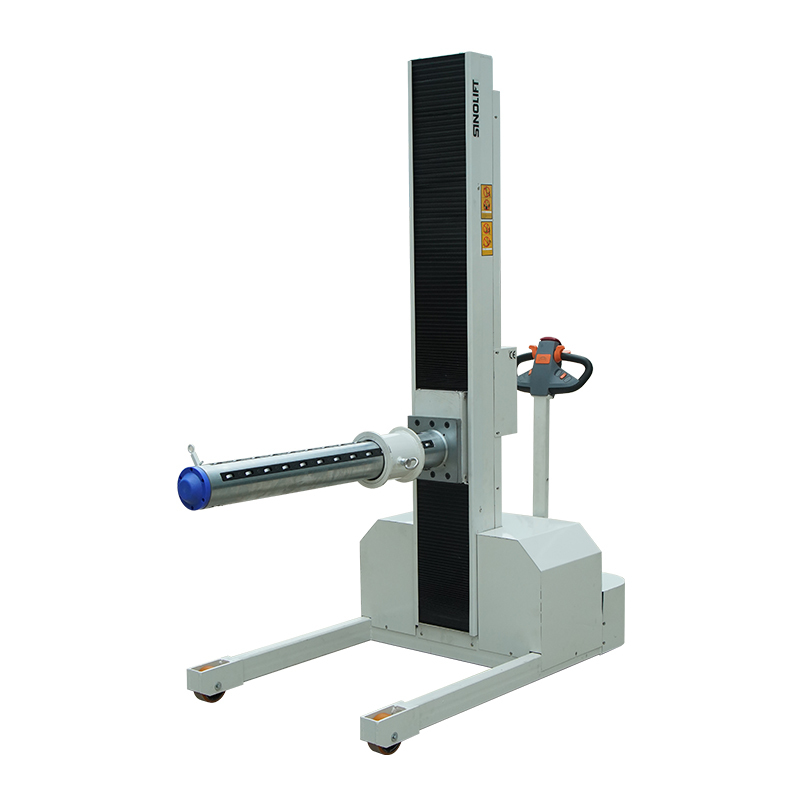

SINOLIFT CDD1019BF 1 Ton Electric Single-Arm Push-Pull Cart 1.95m Lifting Height Roll Material Handling Trolley
This SINOLIFT electric single-Arm Push-Pull cart is engineered for efficient, labor-saving handling of roll materials in narrow industrial spaces. With a 1-ton (1000kg) load capacity and 1.95m (1950mm) maximum lifting height, it features fully electric travel, lifting, and pushing functions to streamline your workflow. Its compact single-column design ensures excellent maneuverability, while the dust-proof bellows cover and PU polyurethane wheels deliver durability and low maintenance. Ideal for textile, printing, logistics, and metal processing industries, this cart supports customization for roll sizes and pushing speeds to meet your specific needs.
Key Features:
Application Scenarios:
FAQ:
1. What is the maximum load capacity of this Push-Pull cart?
It supports a maximum load of 1 ton (1000 kg), suitable for most industrial roll materials.
2. Can I customize the cart for my specific roll size?
Yes, we offer customization for roll length (≤960mm standard, longer available on request) and pushing speed.
3. Is it suitable for narrow aisle operations?
Absolutely. Its compact single-column design and flexible PU wheels make it ideal for narrow aisles.
4. What maintenance is required?
Regular inspection of PU wheels and lubrication of the lead screw is recommended. The dust-proof bellows cover reduces dust accumulation and maintenance frequency.
5. How long is the warranty?
We provide a 1-year warranty for all components, with lifelong technical support.
6. What industries is this cart best for?
It is widely used in textile, printing, packaging, logistics, metal processing, and plastic industries for roll material handling.
Product Specifications:
| CDD-BF | ||
| Rated Load | kg | 1000 |
| Arm Specification | mm | 960XΦ145 |
| Travel Motor Rated Power | W | 750 |
| Lift Motor Rated Power | W | 2200 |
| Drive Wheel Specification | mm | 210*70 |
| Load Wheel Specification | mm | 80*70 |
| Maximum Lifting Height | mm | MIN450~MAX1950 |
