| Place of Origin: | China |
|---|---|
| Brand Name: | Sinolift |
| Certification: | CE |
| Model Number: | CTD1000- M700 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Sandard Export Package |
| Delivery Time: | 15 days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 5000 sets/mouth |

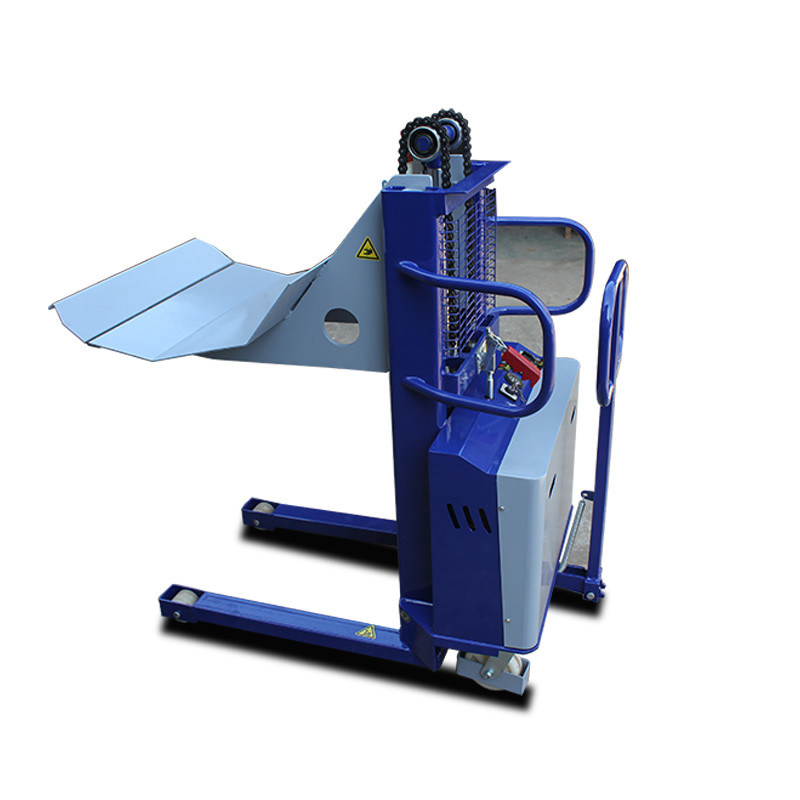

| Product Name: | CTD1000- M700 Electric Roll Paper Stacker Roll Lifter Loading Capacity 1000Kg | Load Capacity: | 1000Kg |
|---|---|---|---|
| Rear Wheels: | 180X50mm | Max Lift Of The Plate: | 841mm |
| Bary Centre: | 500mm | Min. Steering Range: | 1160mm |
| Max. Diam. Bobine: | 1000mm | Wheelbase: | 925mm |
| Frame Dimension: | 1230X720X1310mm | Certification: | CE,ISO9001 |
| Warranty: | 1 Year | After Service: | On-line Service,Spare Parts |
| High Light: | 1000kg Roll Handling Trolley,DC12V Roll Handling Trolley,841mm paper stacker |
||
Feature:
1. V-Pan and/or Roll Post per Customer Specifications
2. Ergonomic Casters : (2) Swivel, (2) Rigid
3. Step-down Foot Floor Lock for added Safety
4. Safety blue polyester powder coating or FDA Approved epoxy powder coating for Durability
5. FDA Approved epoxy powder coating
6. 12-volt D.C. power lift, AC Powered Lift, Pneumatic Lift or Air over Hydraulic Lift
7. Increased lift height or customized V-Pan size
8. 8” wheels for rough surfaces
9. Scales with or without intrinsically safe indicators
Specification:
| Models | CTD1000-M700 | |
| Load Capacity | Kg. | 1000 |
| Max Lift of the Plate. | E mm. | 841 |
| Barycentre | G mm. | 500 |
| Min. Steering Range | R mm. | 1160 |
| Max. Diam. Bobine | D mm. | 1000 |
| Max. Width Bobine | L mm. | 1500 |
| Frame Height | C mm. | 1230 |
| Frame Width | B mm. | 720 |
| Frame Length | A mm. | 1310 |
| Wheelbase | P mm. | 925 |
| Front Wheels | / x largh mm. | 78X70 |
| Rear Wheels | / x largh mm. | 180X50 |
