| Product Name: | C SERIES 2.0-2.5T Internal-Combustion Cushion Tire Forklift | Power Type: | LPG |
|---|---|---|---|
| Load Center: | 500mm | Lift Height: | 3000mm |
| Fork Size: | 1070×120×40mm | Turning Radius: | 2110mm |
| Wheelbase: | 1400mm | Warranty: | 1 Year |
| After Service: | On-line Service, Free Spart Parts |
Product Overview:

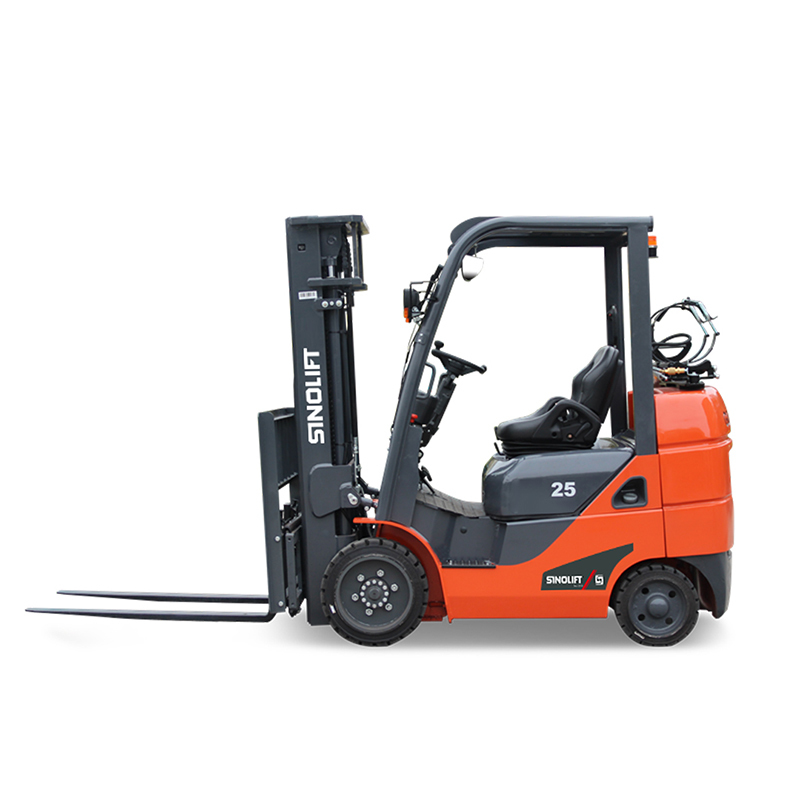

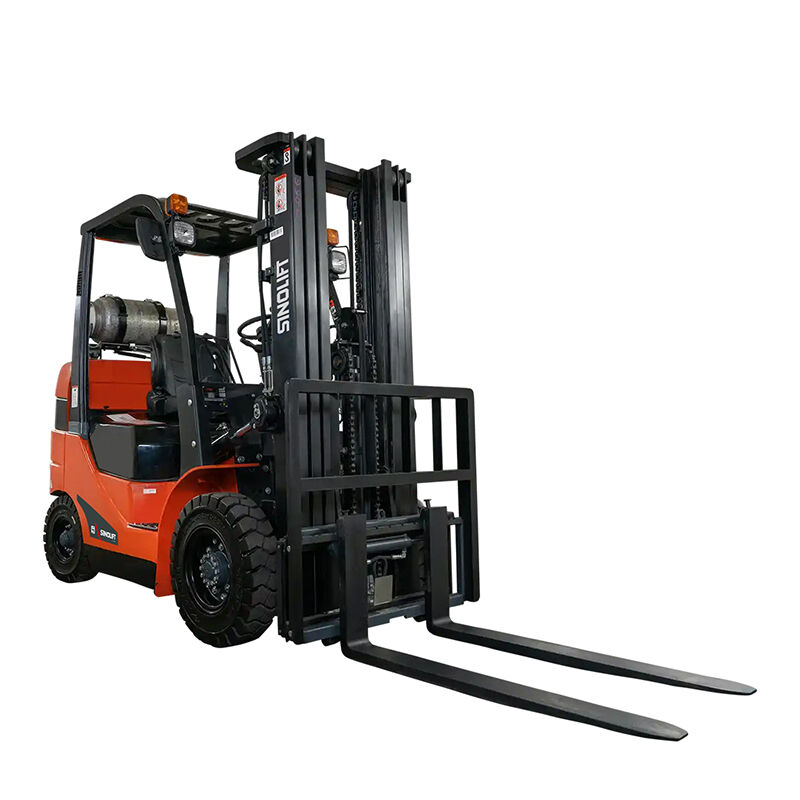

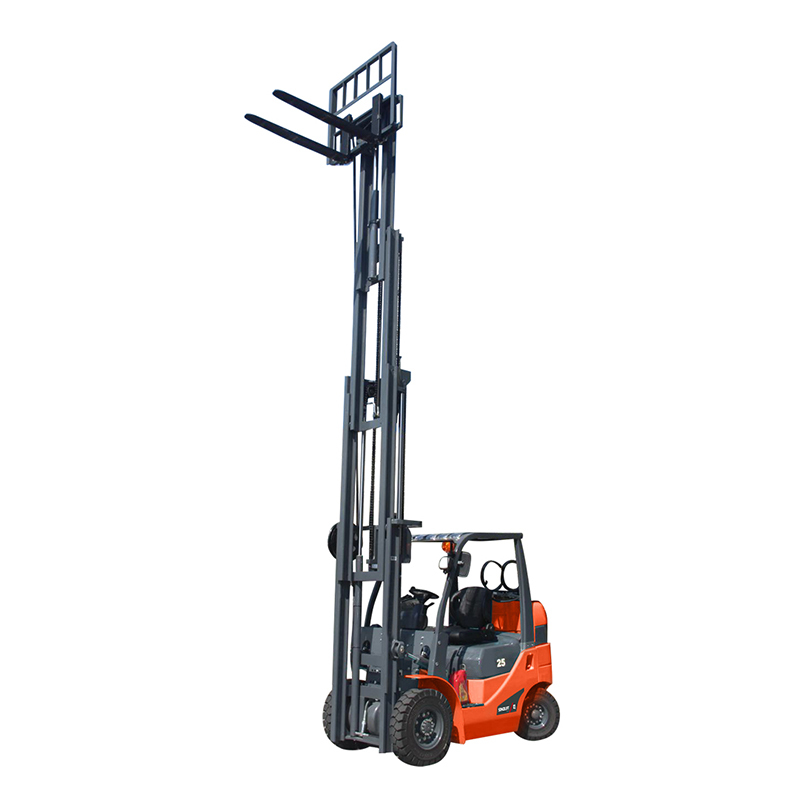

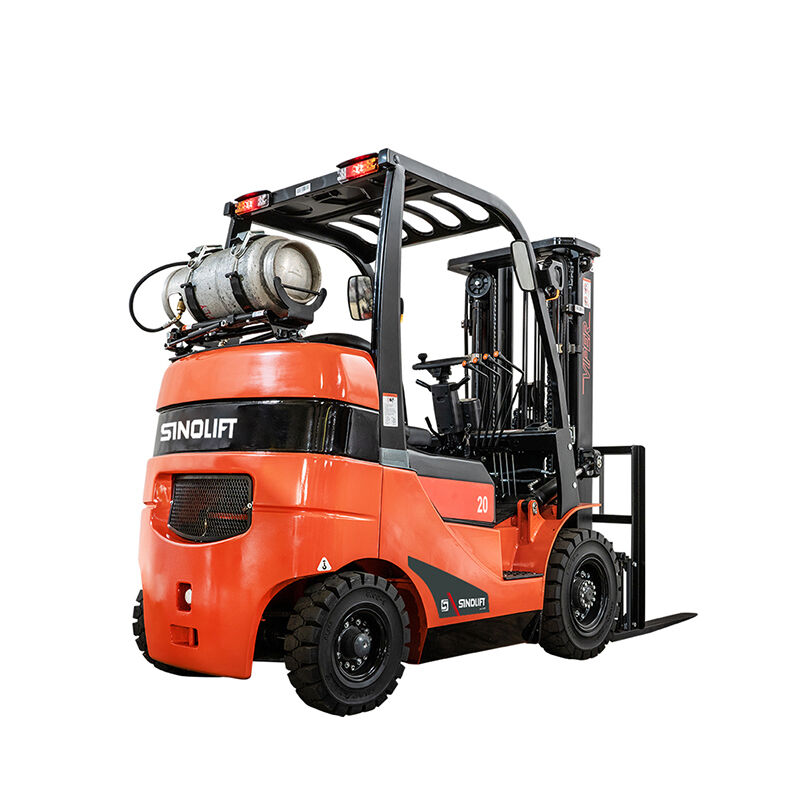

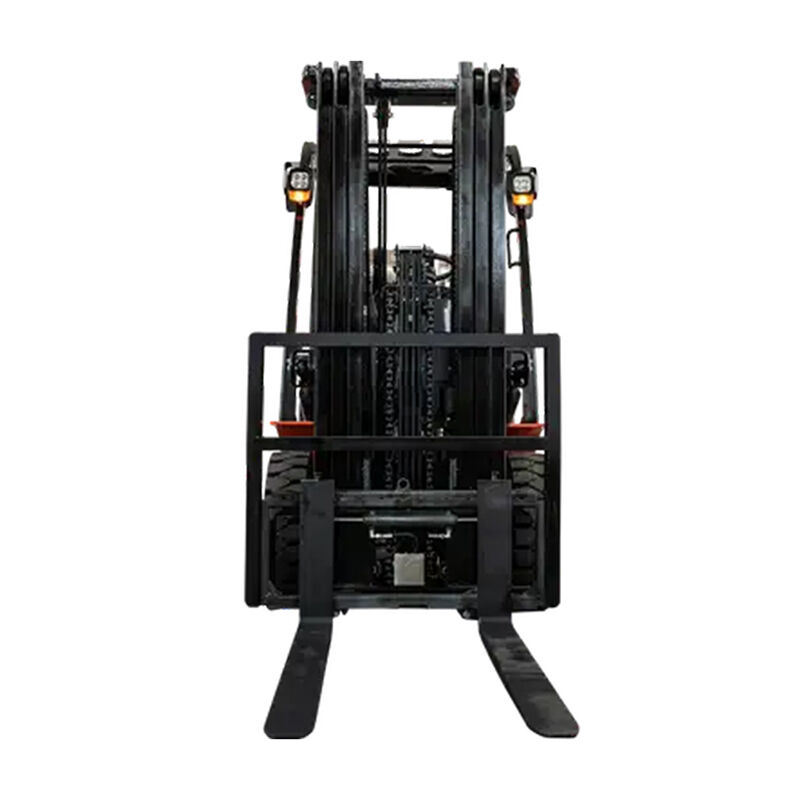

The SINOLIFT C Series 2.0-2.5T Internal-Combustion Cushion Tire Forklift is a robust, globally compliant material handling solution engineered for flexibility and efficiency. Built with heavy-duty steel, it supports 2.0-2.5T loads, offers optional dual-fuel (LPG/gasoline) power, and features a compact design for narrow spaces. Compliant with EPA Tier 4 Final emission standards and tailored to meet European/American market requirements, it delivers stable, safe operations across diverse industrial scenarios.
Key Features:
Application Scenarios:
Product Specifications:
| General | Manufacturer Brand | SINOLIFT | ||||
| Model | FY20C | FY25C | ||||
| Power Type | LPG | LPG | ||||
| Rated capacity | Q | kg | 2000 | 2500 | ||
| Load center | C | mm | 500 | 500 | ||
| Dimensions | Lift height | H | mm | 3000 | 3000 | |
| Free lift height | H5 | mm | 125 | 125 | ||
| Fork size | L×W×T | mm | 1070×120×40 | 1070×120×40 | ||
| Mast tilt angle | a/β | deg | 1 | 1 | ||
| Front overhang | L2 | mm | 445 | 445 | ||
| Rear overhang | L3 | mm | 510 | 510 | ||
| Overall dimensions | Length to face of fork | L | mm | 2355 | 2355 | |
| Overall width | W | mm | 1110 | 1110 | ||
| Height of load backrest | H6 | mm | 1225 | 1225 | ||
| Mast lowered height | H1 | mm | 2070 | 2070 | ||
| Mast extended height | H2 | mm | 4070 | 4070 | ||
| Overhead guard height | H3 | mm | 2080 | 2080 | ||
| Turning radius | r | mm | 2110 | 2110 | ||
| Min. Intersecting aisle | Ra | mm | 2316 | 2316 | ||
| Min. Right angle stacking aisle width | RASA | mm | 3955 | 3955 | ||
| Performance | Laden/Unladen | Travel speed | km/h | 16/17 | 16/17 | |
| Lift speed | mm/s | 530/570 | 530/570 | |||
| Lowering speed | mm/s | 600/300 | 600/300 | |||
| Max. gradeability (Loaden/Unloaden) | % | 20 | 20 | |||
| Max. drawbar pull | N | 20000 | 20000 | |||
| Self weight | kg | 3445 | 3655 | |||
| Power Unit | Tires | Front | 21×7×15 | 21×7×15 | ||
| Rear | 16(1/4)×6×11(1/4) | 16(1/4)×6×11(1/4) | ||||
| Tread | Front | W1 | mm | 902 | 902 | |
| Rear | W2 | mm | 900 | 900 | ||
| Wheelbase | L4 | mm | 1400 | 1400 | ||
| Min. ground clearance | H4 | mm | 80 | 80 | ||
| Drive units & control | Engine | Model | NISSAN K25 EPA | PSI 2.4 | ||
| Rated output | kw/rpm | 42/2700 | 46/2700 | |||
| Rated torque | N.m/rpm | 185/1350 | 168/1600 | |||
| No. of cylinder | 4 | 4 | ||||
| Bore×stroke | mm | 89×100 | 86.5×100 | |||
| Displacement | cc | 2488 | 2351 | |||
| Emission Standard | EPA T2 / EURO IV | EPA T4 / EURO V | ||||
| Transmissions | Type | Mechanical / Hydraulic | Mechanical / Hydraulic | |||
| Hydraulic system working pressure | Mpa | 18 | 18 | |||
![]()
![]()
![]()
![]()
![]()
![]()
![]()
