| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SINOLIFT |
| Certification: | CE, ISO9001 |
| Model Number: | L SERIES PRO 5.0-12T |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Sandard Export Package |
| Delivery Time: | 15 DAYS |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 55 units |
| Product Name: | L SERIES PRO 5.0-12T Diesel Powered Counter Balanced Forklift With OEM Manufacturer Service | Power Type: | Diesel |
|---|---|---|---|
| Load Center: | 600mm | Lift Height: | 3000mm |
| Mast Tilt Angle: | 6/12° | Battery: | 24/100V/Ah |
| Transmissions: | Automatic | Warranty: | 1 Year |
| After Service: | On-line Service, Free Spart Parts |
Product Description:

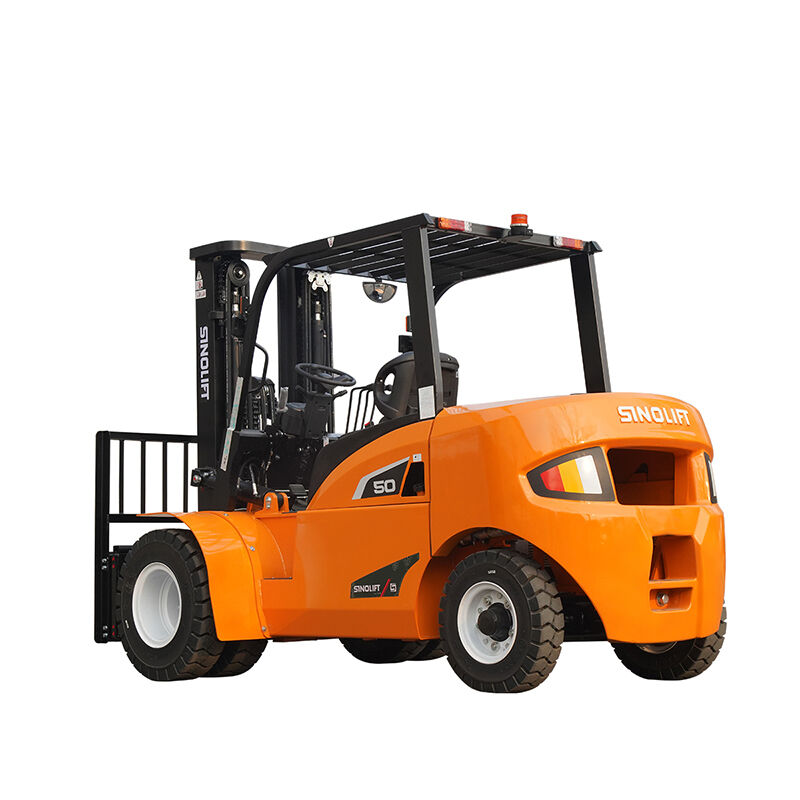

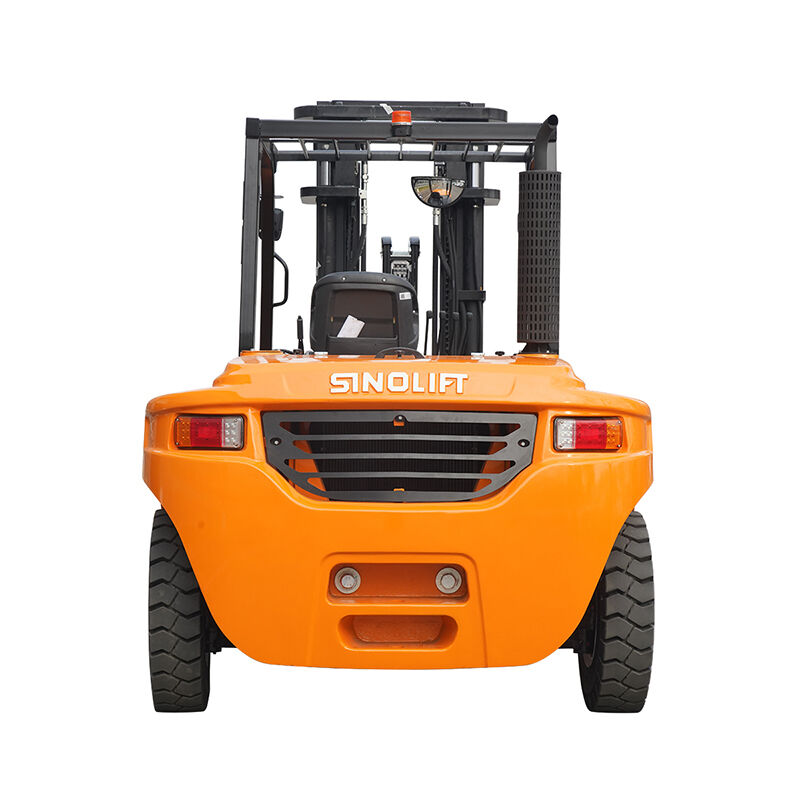

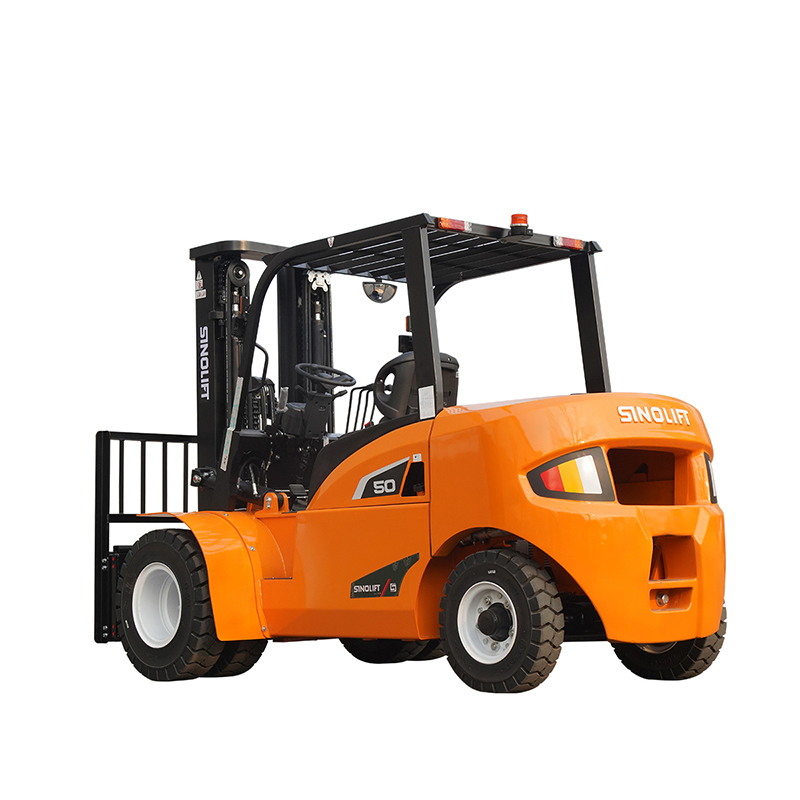

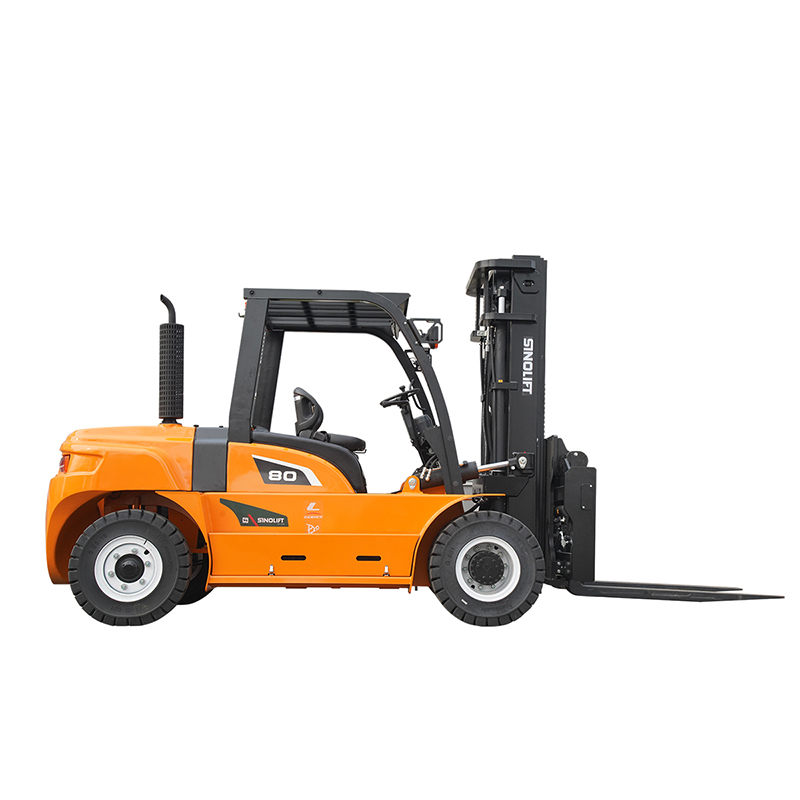

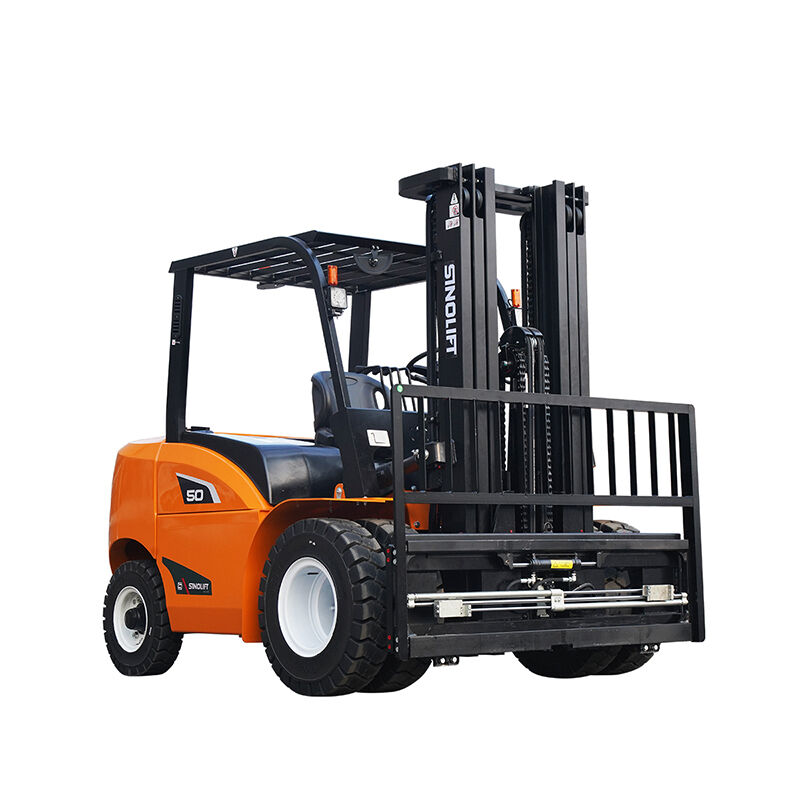

L SERIES PRO 5.0-12T Diesel Powered Counter Balanced Forklift with OEM Manufacturer Service
The L Pro series is the new generation of internal combustion counterbalance forklift trucks developed by SINOLIF, independently adopting the world’s advanced technologies based on original products. Through comprehensive upgrading of appearance modeling, energy conservation, environmental friendliness, comfort, safety, and reliability, it will become a world-class forklift truck that can meet your overall demands.
KEY FEATURES:
Product Specifications:
| General | Manufacture | SINOLIFT | ||||||||||
| Model | CPCD50S L+ | CPCD60 L+ | CPCD70 L+ | CPCD80 L+ | CPCD100 L+ | CPCD120 L+ | ||||||
| Power type | Diesel | |||||||||||
| Rated capacity | Q | (kg) | 5000 | 6000 | 7000 | 8000 | 10000 | 12000 | ||||
| Load center | C | mm | 600 | |||||||||
| Dimensions | Lift height | H | mm | 3000 | ||||||||
| Free lift height | H5 | mm | 190 | 190 | 195 | 190 | 195 | 195 | ||||
| Fork size | LxWxT | mm | 1220×150×60 | 1220×150×60 | 1220×150×65 | 1220×150×70 | 1220×180×75 | 1520×180×88 | ||||
| Mast tilt angle | a/β | (°) | 6/12 | 6/12 | 6/12 | 6/12 | 6/12 | 6/12 | ||||
| Front overhang | L2 | mm | 590 | 590 | 590 | 650 | 740 | 740 | ||||
| Rear overhang | L3 | mm | 640 | 640 | 740 | 740 | 800 | 800 | ||||
| Overall dimensions | Length to face of fork | L' | mm | 3480 | 3480 | 3580 | 3830 | 4340 | 4540 | |||
| Overall width | W | mm | 2000 | 2000 | 2000 | 2000 | 2200 | 2200 | ||||
| Height of load backrest | H6 | mm | 1440 | 1440 | 1440 | 1500 | / | / | ||||
| Mast lowered height | H1 | mm | 2500 | 2500 | 2500 | 2560 | 2850 | 2850 | ||||
| Mast extended height | H2 | mm | 4430 | 4430 | 4430 | 4490 | 4325 | 4325 | ||||
| Overhead guard height | H3 | mm | 2450 | 2450 | 2450 | 2510 | 2560 | 2560 | ||||
| Turning radius | r | mm | 3320 | 3320 | 3400 | 3700 | 4100 | 4300 | ||||
| Performance | No load/full load | Travel speed | km/h | 25/30 | 25/30 | 25/30 | 25/30 | 25/30 | 22/28 | |||
| Lift speed | mm/sec | 540/570 | 540/570 | 540/570 | 442/484 | 350/390 | 300/380 | |||||
| Lowering speed | mm/sec | 450/360 | 450/360 | 450/360 | 400/360 | 370/350 | 390/350 | |||||
| Max. gradeability (full load /no load) | % | 20/25 | 20/25 | 20/25 | 20/25 | 20/25 | 20/25 | |||||
| Max. drawbar pull | KN | 70 | 70 | 70 | 70 | 70 | 70 | |||||
| Self weight | kg | 8330 | 8800 | 9550 | 9900 | 13100 | 13900 | |||||
| Wheel & Tire | Tires | Front | 8.25-15-14PR | 8.25-15-14PR | 8.25-15-14PR | 8.25-15-14PR | 9.00-20-14PR | 9.00-20-14PR | ||||
| Rear | 8.25-15-14PR | 8.25-15-14PR | 8.25-15-14PR | 8.25-15-14PR | 9.00-20-14PR | 9.00-20-14PR | ||||||
| Tread | Front | W1 | mm | 1470 | 1470 | 1470 | 1470 | 1600 | 1600 | |||
| Rear | W2 | mm | 1710 | 1710 | 1710 | 1710 | 1725 | 1725 | ||||
| Wheelbase | L | mm | 2250 | 2250 | 2250 | 2500 | 2800 | 3000 | ||||
| Min.ground clearance | mm | 200 | 200 | 200 | 260 | 250 | 250 | |||||
| Drive units & control | Battery | V/AH | 24/100 | 24/100 | 24/100 | 24/100 | 24/100 | 24/100 | ||||
| Engine | Model | Quanchai S45-115C41 | Quanchai 4J1-115C32 | Xichai CA4DF3-12GCG3U | Xichai CA6110 | Isuzu 6BG10C-02 | Yuchai YCA05115-T480 | |||||
| Rated output | kW/rpm | 85/2200 | 85/2200 | 85/2200 | 85/2000 | 82.4/2000 | 85/2200 | |||||
| Rated torque | N.m/rpm | 500/1600 | 500/1320-1650 | 460/1300-1700 | 450/1400~1500 | 416.8/1500 | 500/1400-1600 | |||||
| No.of cylinder | 4 | 4 | 4 | 4 | 6 | 4 | ||||||
| Bore×stroke | mm | 105x124 | 93x120 | 110x125 | 110x125 | 105x125 | 105x118 | |||||
| Displacement | cc | 4290 | 4300 | 4750 | 7127 | 6494 | 4837 | |||||
| Emission Standard | China Stage IV | China Stage III | China Stage III | China Stage II | China Stage II | China Stage IV | ||||||
| Transmissions | Type | Automatic | Automatic | Automatic | Automatic | Automatic | Automatic | |||||
| Hydraulic System Working Pressure | MPa | 19 | 19 | 19 | 19 | 19 | 19 | |||||
