| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SINOLIFT |
| Certification: | CE |
| Model Number: | SFH22AG |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Sandard Export Package |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 1000 sets/mouth |
| Product Name: | SFH22AG Manual Hydraulic Stacker With Adjustable Straddle Legs | Driving Style: | Pedestrian |
|---|---|---|---|
| Load Capacity: | 1000kg | Net Weight: | 386kg |
| Warranty: | 1 Year | After Service: | On-line Service,free Spare Parts |
Product Name

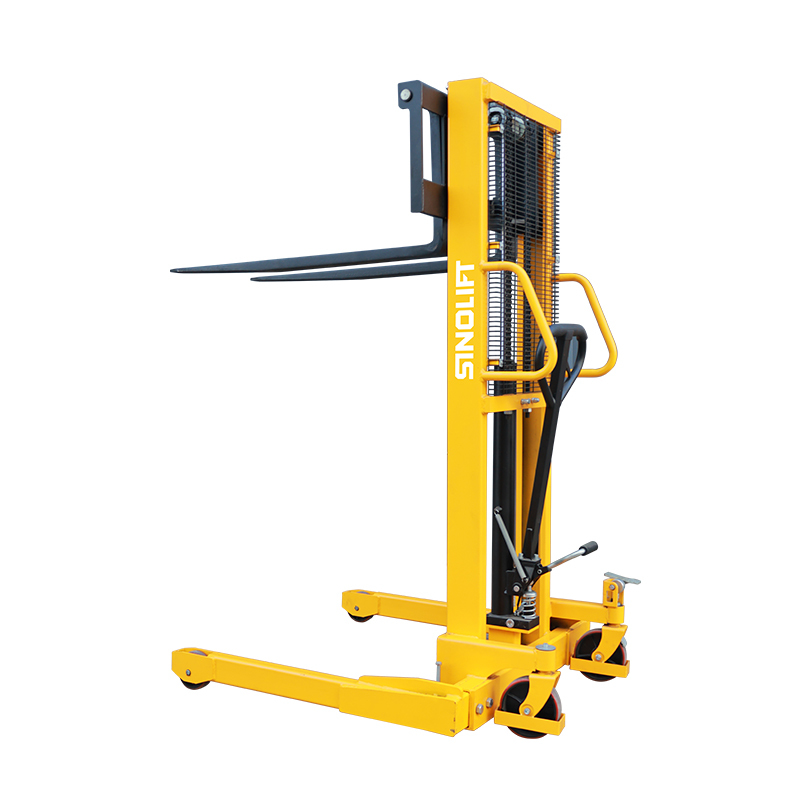

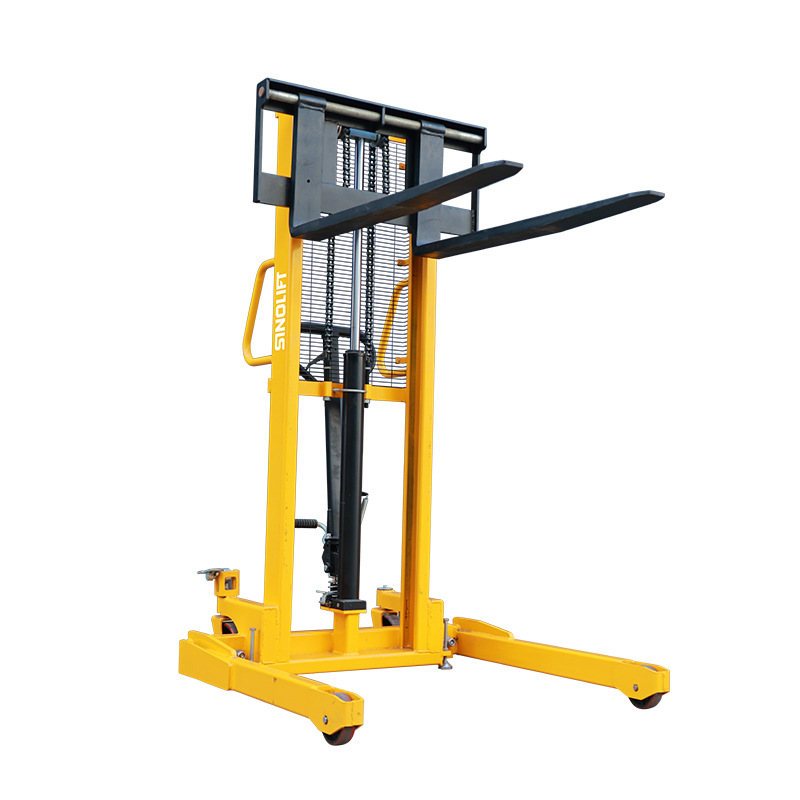

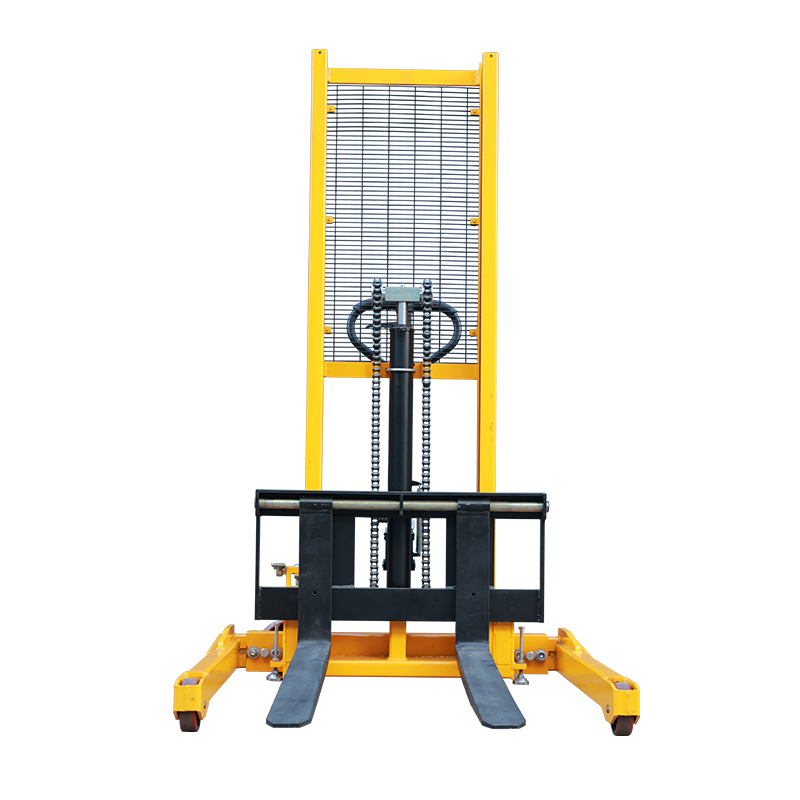

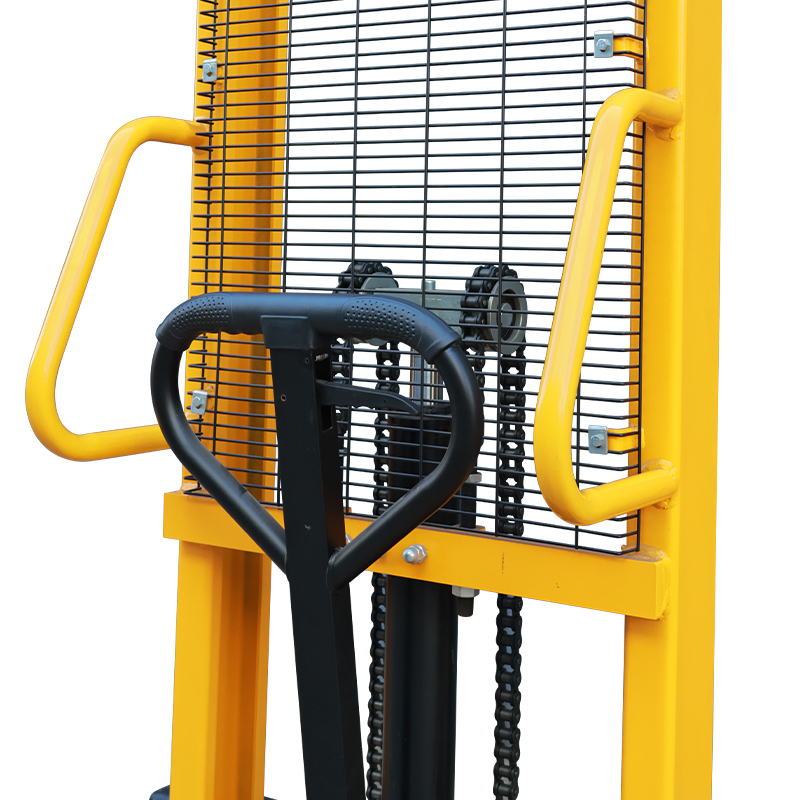

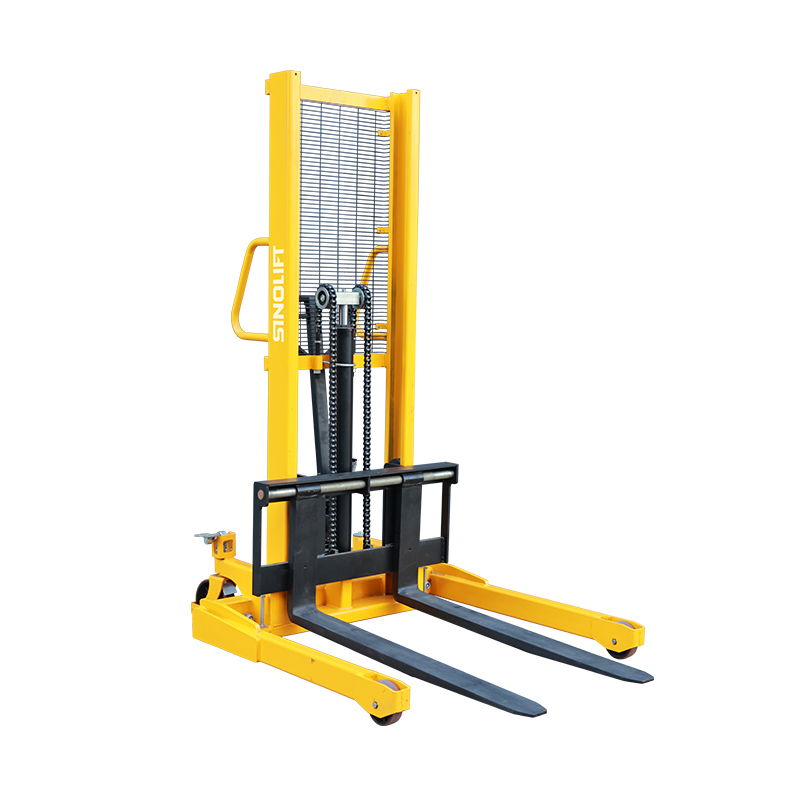

SFH22AG Manual Hydraulic Stacker with Adjustable Straddle Legs
This Manual Hydraulic Stacker delivers 1000 kg of robust lifting with a reinforced steel construction and export-grade durability. Its adjustable straddle legs adapt to diverse pallet types, while the compact design excels in narrow aisles and warehouses. Ideal for manufacturing, logistics, and storage facilities seeking efficient, space-saving material handling.
Key Features of SFH22AG Manual Hydraulic Stacker:
Product Specifications
| SFH Series - Straddle Leg Stacker | ||||
| Model | SFH22-63 | SFH22-98 | SFH22-118 | |
| Load Capacity | kg | 1000 | 1000 | 1000 |
| Load Center Distance | mm | 500 | 500 | 500 |
| Max Lifting Height | mm | 1600 | 2500 | 3000 |
| Mast Type | 1 | 2 | 2 | |
| Lowered Height | mm | 70 | 70 | 70 |
| Fork Length | mm | 920 | 920 | 920 |
| Single Fork Width | mm | 100 | 100 | 100 |
| Adjustable Fork Width | mm | 215~850 | 215~850 | 215~850 |
| Inner Leg Width | mm | 915~1220 | 915~1220 | 915~1220 |
| Outer Leg Width | mm | 1090~1370 | 1090~1370 | 1090~1370 |
| Overall Length | mm | 1420 | 1420 | 1420 |
| Overall Width | mm | 1370 | 1370 | 1370 |
| Overall Height | mm | 2020 | 1770 | 2020 |
| Front Wheels | mm | Φ125x50 | Φ125x50 | Φ125x50 |
| Rear Wheels | mm | Φ180x50 | Φ180x50 | Φ180x50 |
| Net Weight | kg | 320 | 360 | 386 |
