| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SINOLIFT |
| Certification: | CE |
| Model Number: | CTD1000SR |
| Minimum Order Quantity: | 1 UNIT |
| Price: | Negotiable |
| Packaging Details: | Standard export packaging |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 100 |
Product Name

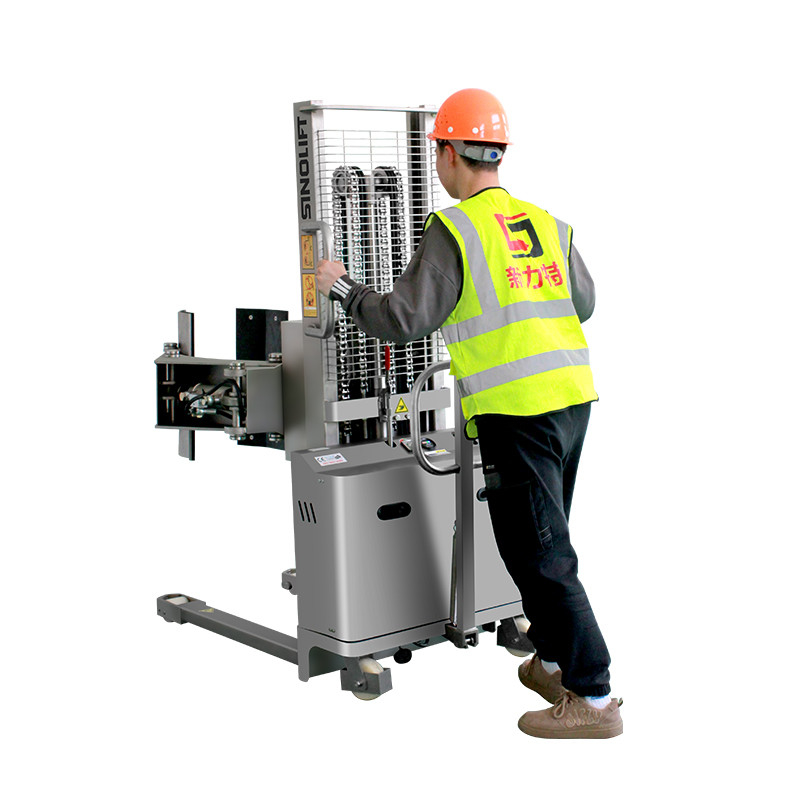

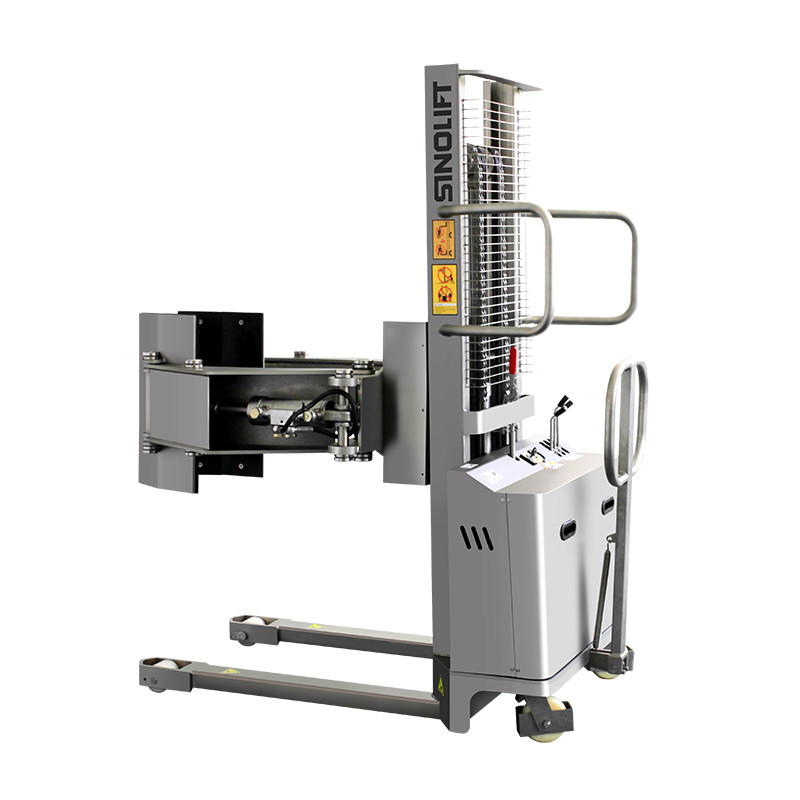

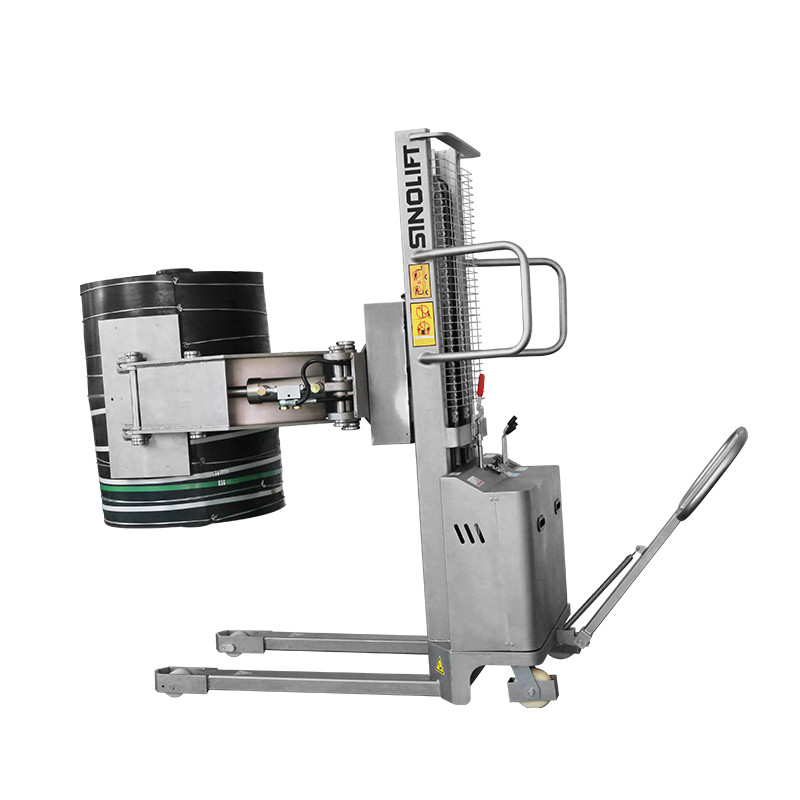

CTD1000SR Semi-Electric Clamp Roll Lifter (Stainless Steel)
Features
304 Stainless Steel: Sleek & Durable | Waterproof & Corrosion-Resistant
Electric Hydraulic Lift with Smart Design: Push-Pull Operation Saves Time and Boosts Efficiency
Reinforced Hydraulic Cylinder: Ensures a Tighter, Safer Grip
360° Rotation: Offers Full Movement Flexibility

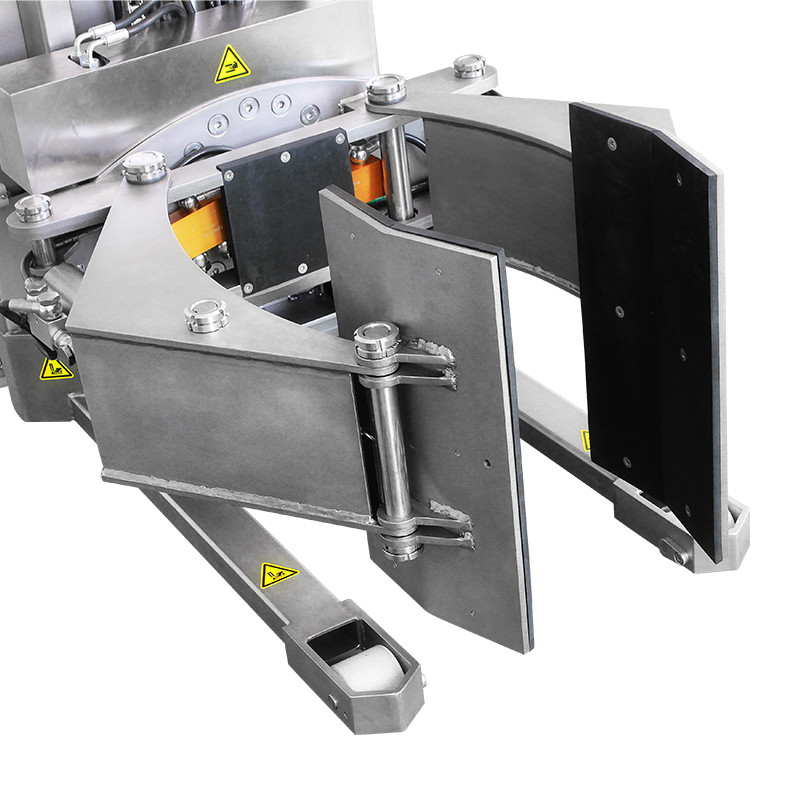

Round Clamp: Specialized for Handling Round Materials
3-in-1 Functionality: Transport, Stack, Rotate
Smart Control Panel: Includes Lift Speed Controller, Battery Display, and Clamp Tightness Adjuster
High-Quality Casters: Wear-Resistant and Durable
360° Swivel Wheels: Easy Maneuvering with Low Rolling Resistance
Applications
Warehouse Storage
Dock Handling
Supermarket Stocking
Workshop Loading
This Semi-Electric Clamp Roll Lifter is a versatile and reliable solution for various industries, designed to make material handling more efficient and safer while saving valuable time.
Product Specifications
| Model | CTD500-R1000S | |
| Max. Capacity | kg | 500 |
| Drum Diameter Range | mm | Φ400-Φ1000 |
| Maximum Lifting Height (Cylinder in Horizontal Position) | mm | 1300 |
| Minimum Height (Cylinder in Vertical Position, Distance from Center of Drum to the Ground) | mm | 460 |
| Minimum Height (Cylinder in Horizontal Position, Distance from Boom Center to Ground) | mm | 260 |
| Minimum Height (Cylinder in Vertical Position, Minimum Ground Clearance from Drum Bottom) | mm | 0 |
| Clamp Opening Range(Min-Max) | mm | 380-1100 |
| Rotation Angle | ° | 360 |
| Wheel Material | Nylon | |
| Front Wheel | mm | Φ80 |
| Rear Wheel | mm | Φ125 |
| Traction Motor | kW | 1.6 |
| Lift Motor | W | Manual |
| Battery | V/Ah | 12V/93Ah |
| Charger | V/A | 12V/20A |
| Lift Speed | Adjustable | |
| Lower Speed | Adjustable | |
| Weight | kg | 350 |
